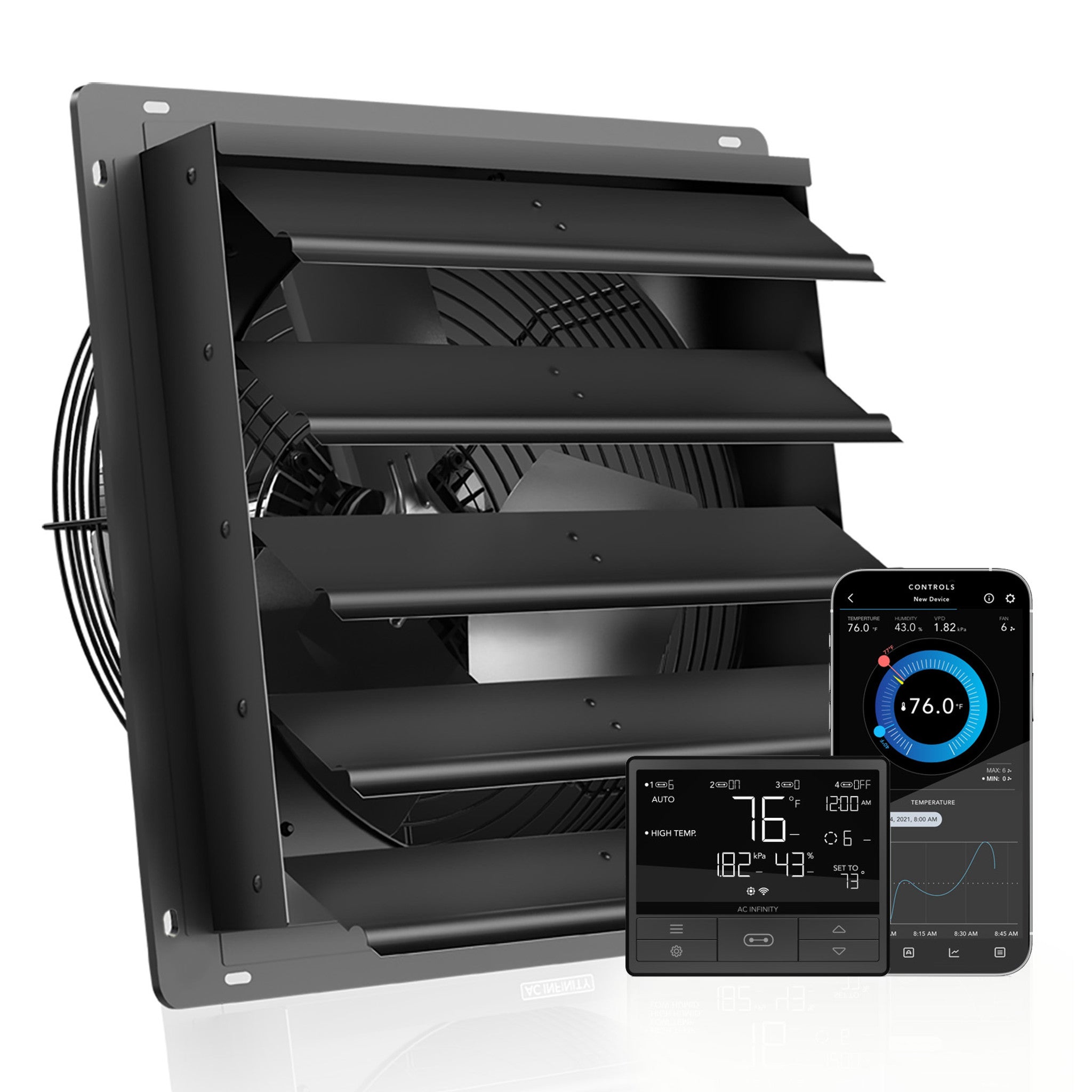

This large 20-inch shutter exhaust fan delivers powerful airflow to remove heat, humidity, odors, and dust from large environments such as warehouses, greenhouses, garages, and workshops. The included intelligent UIS controller provides dynamic temperature, humidity, and VPD automation with timers, cycles, scheduling, and minimum speed settings for customizable ventilation.
Its EC motor with PWM technology enhances airflow performance while lowering energy consumption and noise levels. Built with durable aluminum blades, steel wire guards, and weather-resistant shutters, the fan provides reliable operation even in harsh environments. This system integrates seamlessly into the UIS platform, enabling full WiFi app control and advanced climate monitoring.
Key features
• High-airflow 20-inch shutter exhaust fan for large environmental ventilation

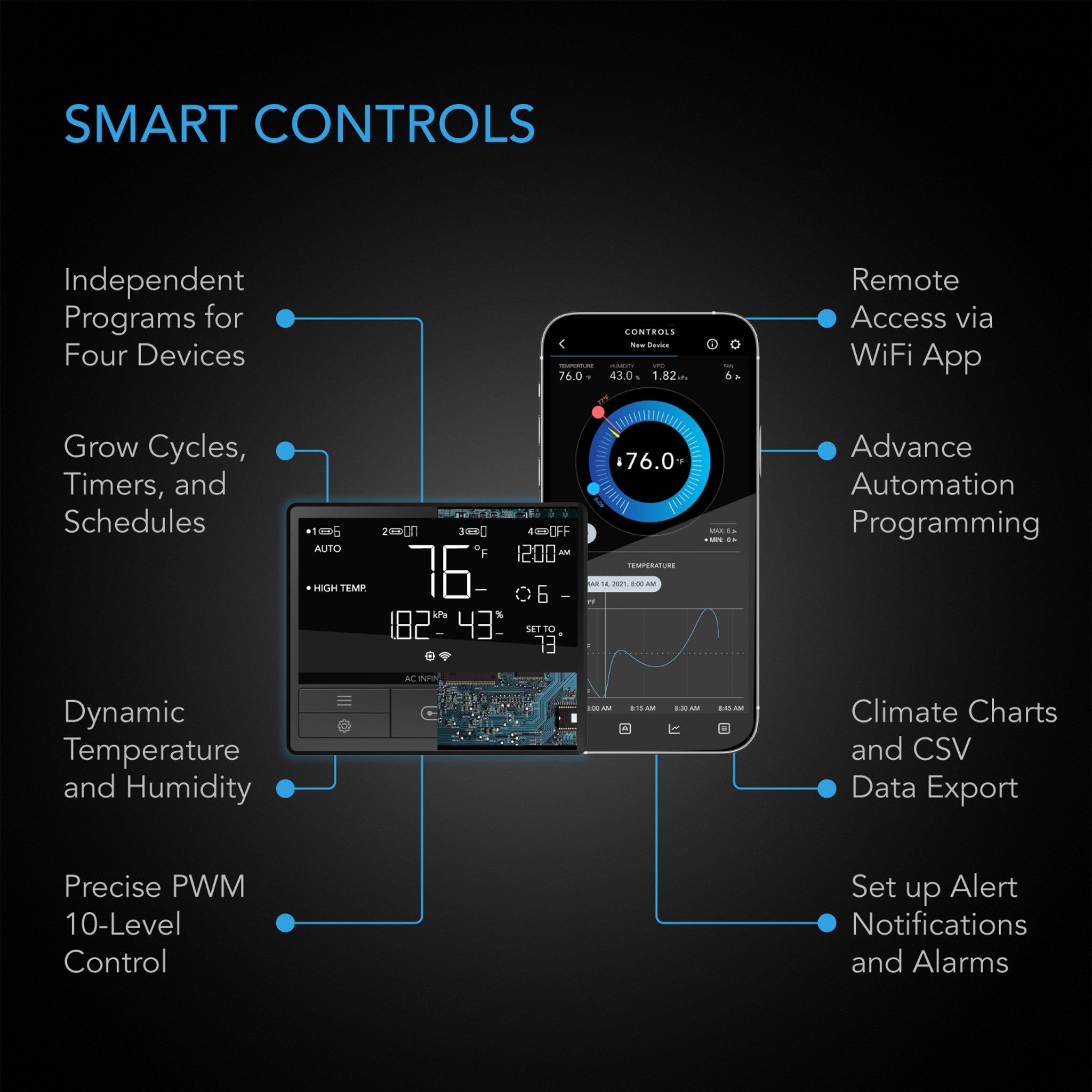

• Smart controller with dynamic temperature, humidity, and VPD automation
• WiFi and Bluetooth app control for remote programming and climate tracking

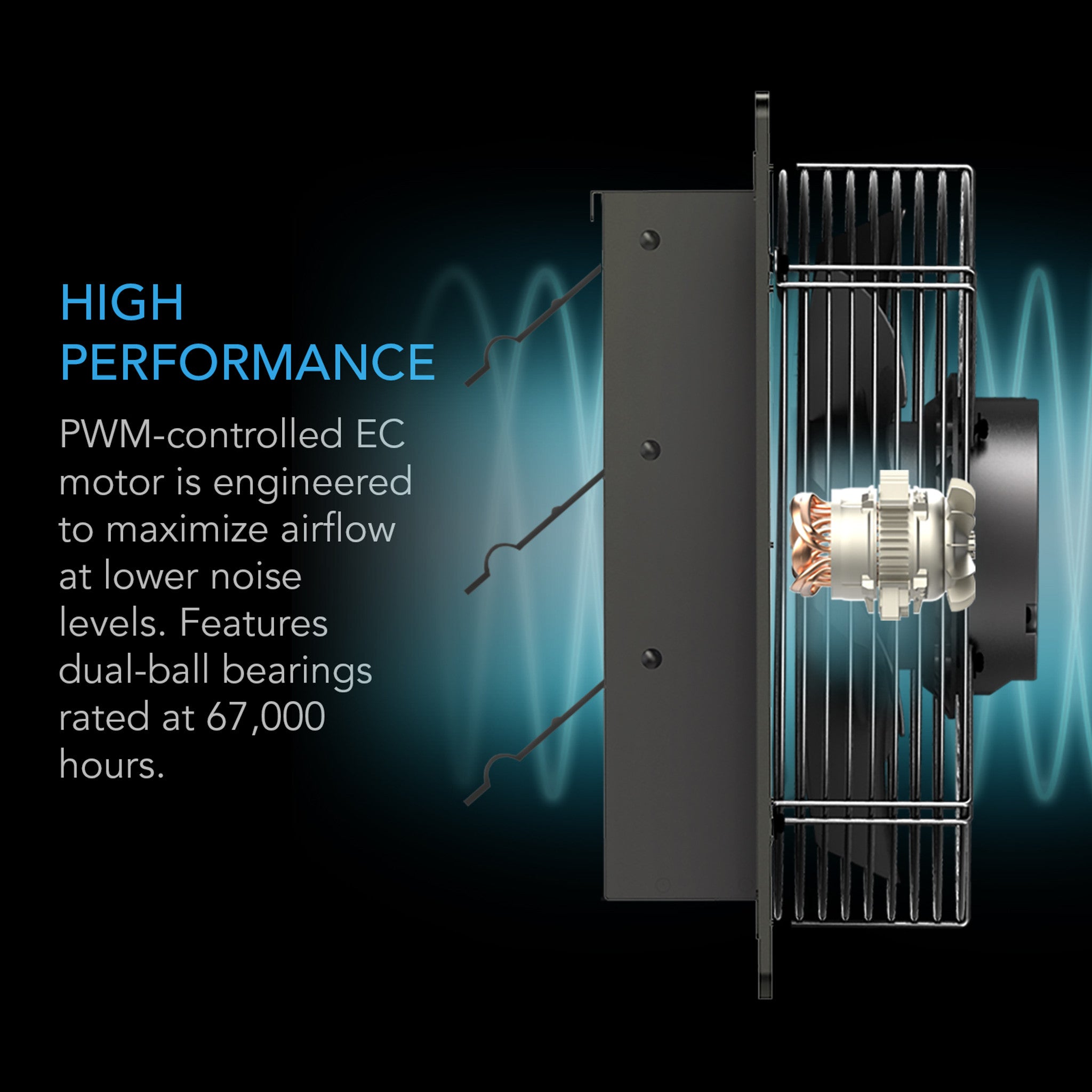

• EC motor with PWM technology reduces noise and energy use
• Steel shutters automatically block dust, moisture, and debris when not operating
• Aluminum blades with dual ball bearings for long-life performance
• IP44-rated enclosure for resistance to liquids and dust
Applications
• Greenhouses and professional grow environments
• Warehouses and industrial buildings
• Garages, barns, attics, and workshops

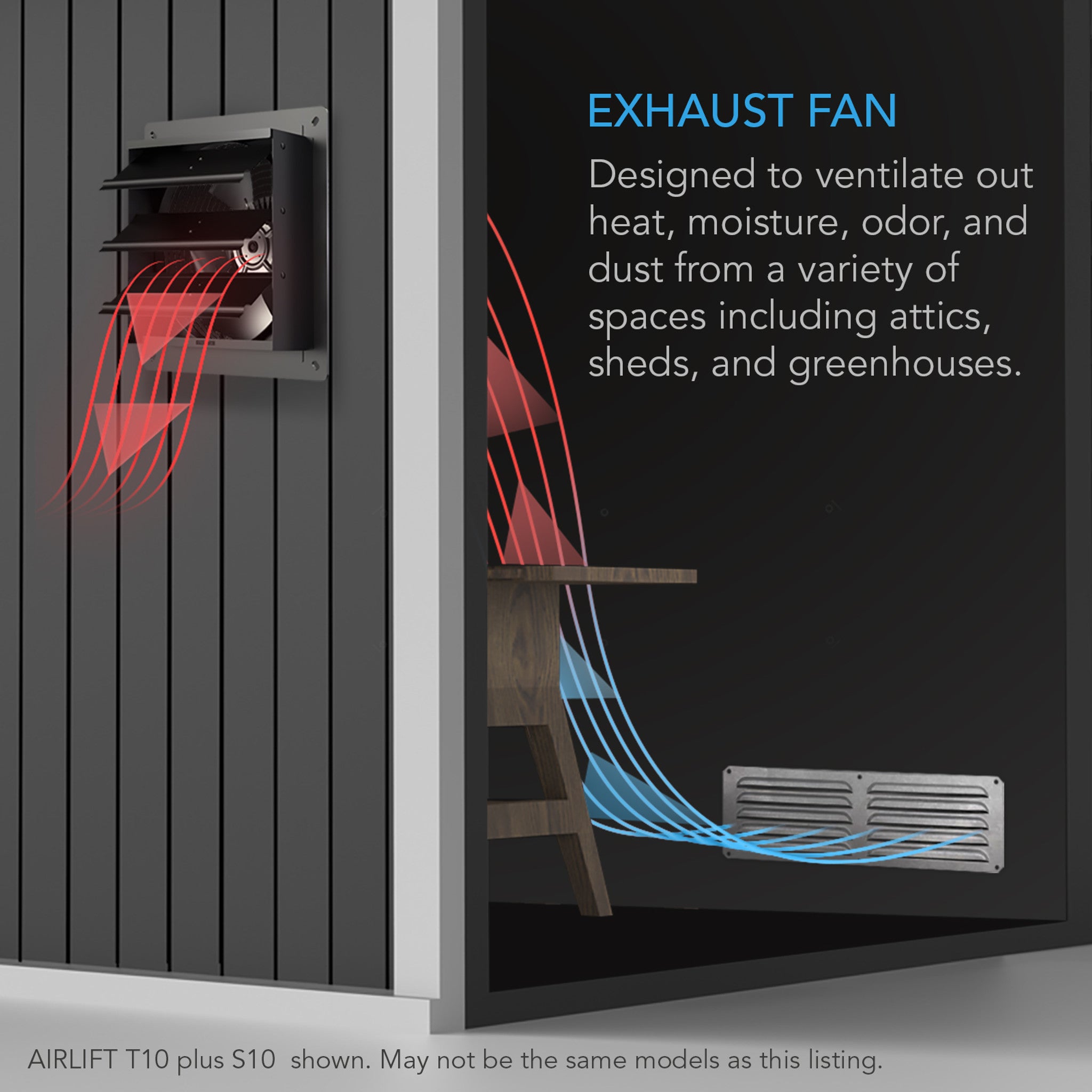

• Removing heat, odor, humidity, and airborne particles

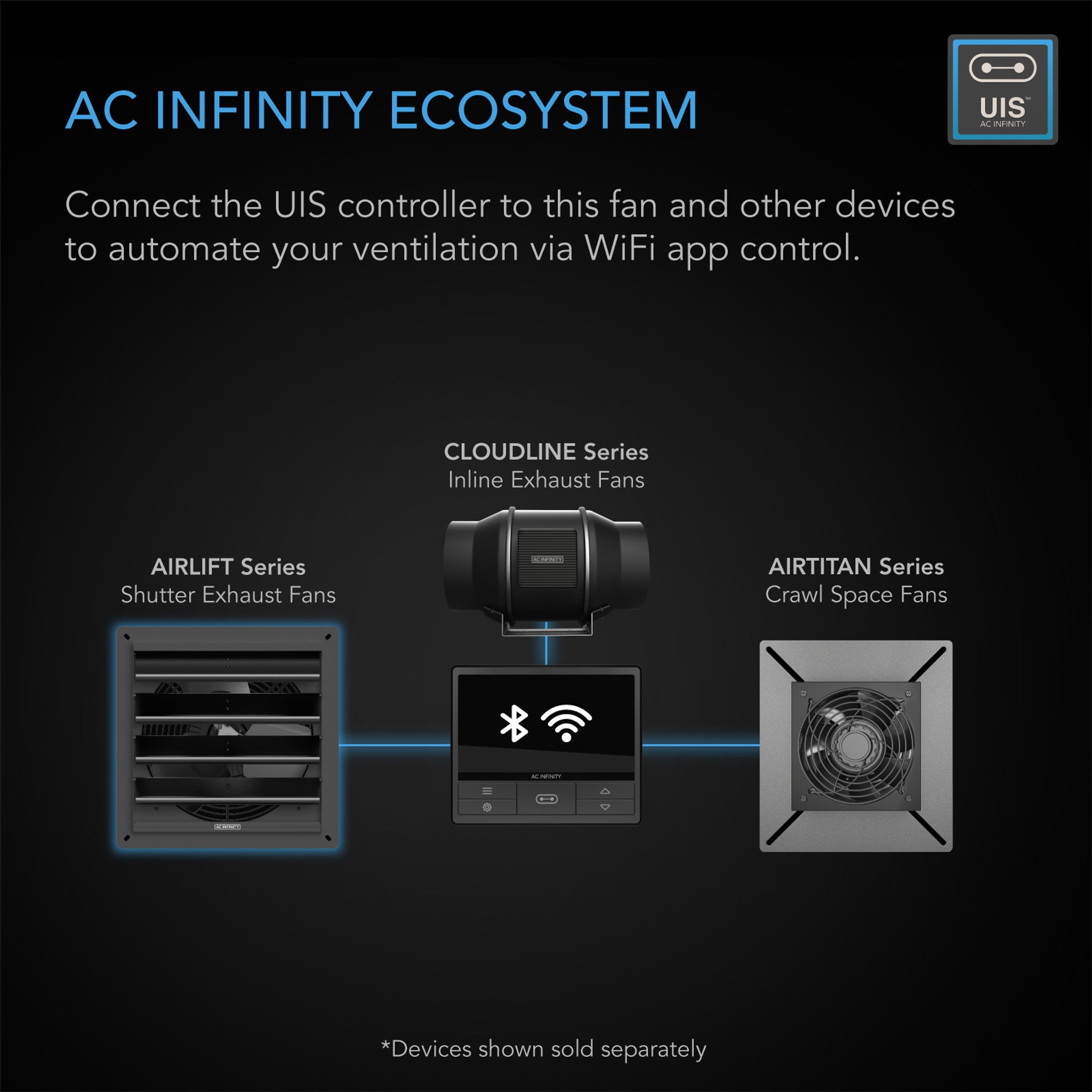

• Automated ventilation systems using UIS-compatible devices
Product specifications
| Specification |
Details |
| Manufacturer |
AC Infinity Inc. |
| Product Name |
AIRLIFT T20 |
| Product Model |
AC-ALT20 |
| UPC Code |
819137020955 |

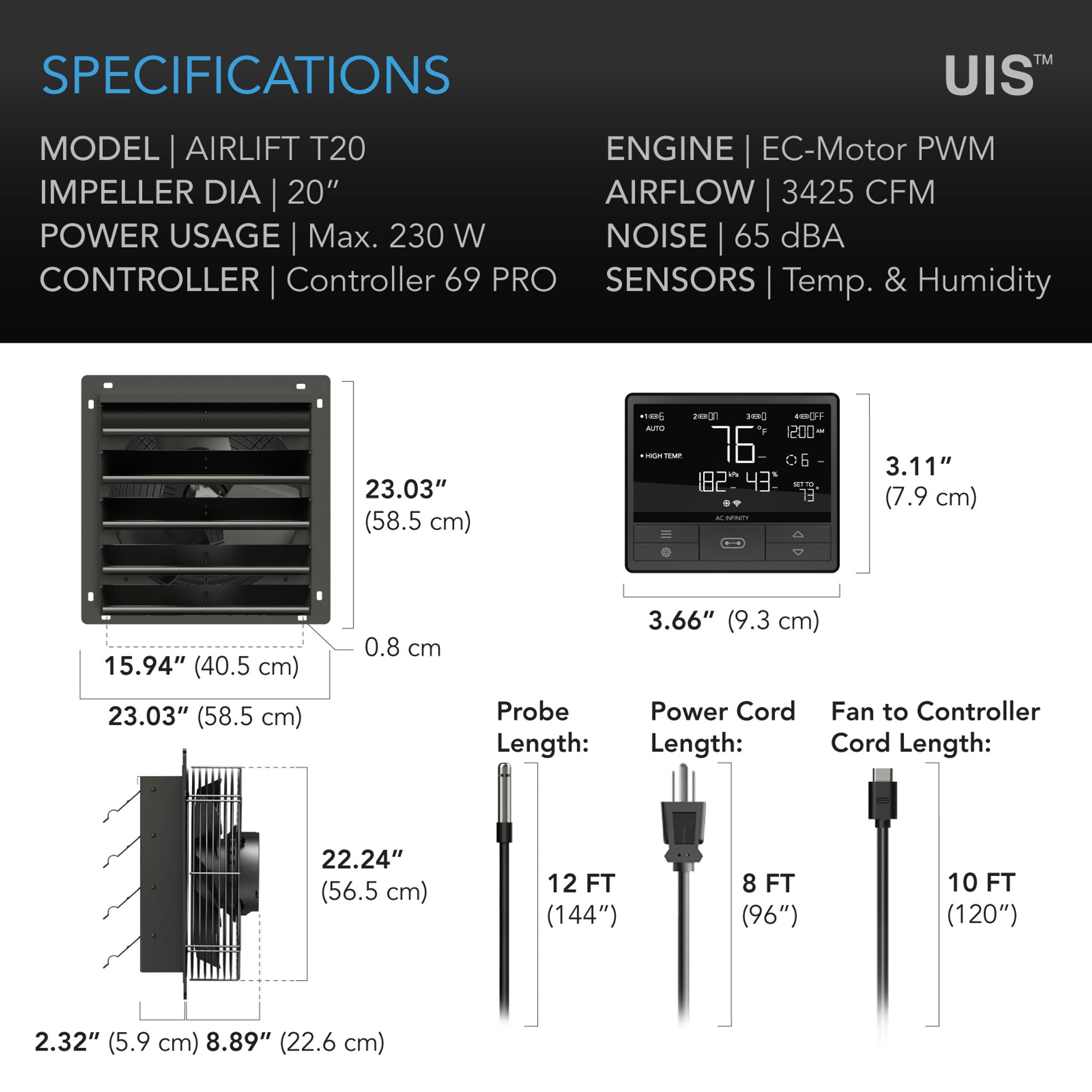

| Fan Unit Dimensions |
23.03 x 23.03 x 11.21 in (58.5 x 58.5 x 28.5 cm) |
| Frontside Enclosure Dimensions |
20.62 x 20.62 in (52.4 x 52.4 cm) |
| Required Mounting Hole |
22.24 x 22.24 in (56.5 x 56.5 cm) |
| Hole to Hole Distance |
15.94 x 15.94 in (40.5 x 40.5 cm) |
| Screw Hole Size |
0.31 in (0.8 cm) |
| Cord Length to Controller |
120 in (10 feet) |
| Controller Dimensions |
3.66 x 3.11 x 0.98 in (9.3 x 7.9 x 2.5 cm) |
| Display Size |
3.5 x 1.4 in (9 x 3.5 cm) |
| Cord Length to Plug |
96 in (8 feet) |
| Sensor Probe Length |
144 in (12 feet) |
| Total Airflow |
3425 CFM |
| Total Noise |
65 dBA |
| Static Pressure |
107 Pa |
| Operating Voltage |
100–240V AC |
| Power |
230W |
| Current |
3.2A |
| Operating Humidity |
35–85% RH |
| Operating Temperature |
32–140°F |
| Fan Bearings |
Dual Ball |
| Life Expectancy |
67,000 hours |
| CE Certified |
Yes |
What’s included
• AIRLIFT T20 shutter exhaust fan
• Intelligent UIS climate controller
• Sensor probe
• Power cords
• Mounting hardware
• Installation manual
