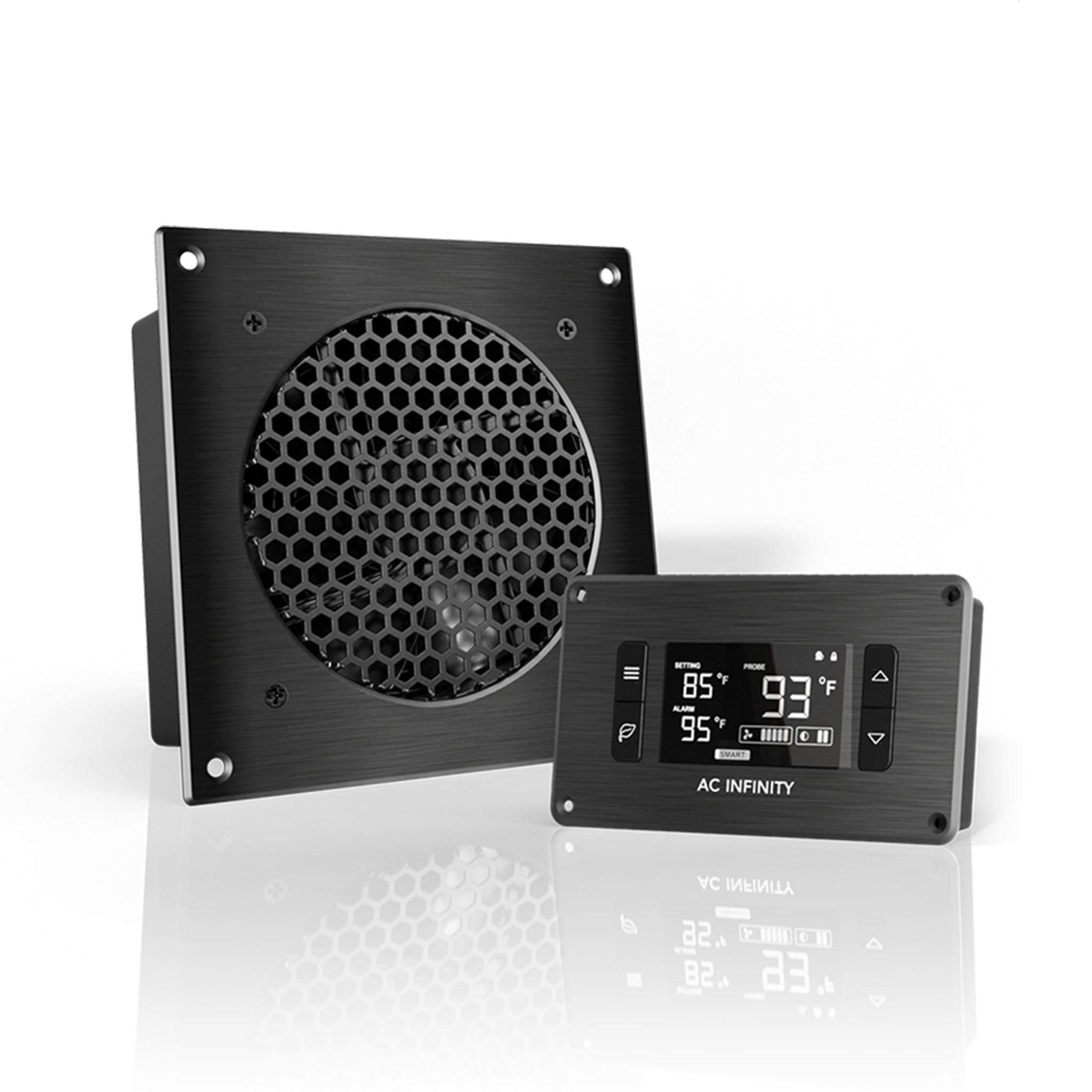

The AIRPLATE T3 is an ultra-quiet, intelligent cabinet cooling system engineered for AV environments where reliable airflow and minimal noise are essential. It features a CNC-machined aluminum fan unit paired with an advanced thermal controller that automatically adjusts fan speed based on real-time temperature readings.
With programmable settings, alarms, display lock, six fan speeds, and memory retention, the T3 offers precise and automated cooling performance. Dual-ball bearings and UL-certified motors ensure longevity and safe operation in any mounting orientation, while the included thermal probe provides accurate temperature monitoring within enclosed spaces.
Key features
• Ultra-quiet cooling system with only 18 dBA noise
• Intelligent temperature controller with auto-adjusting fan speed

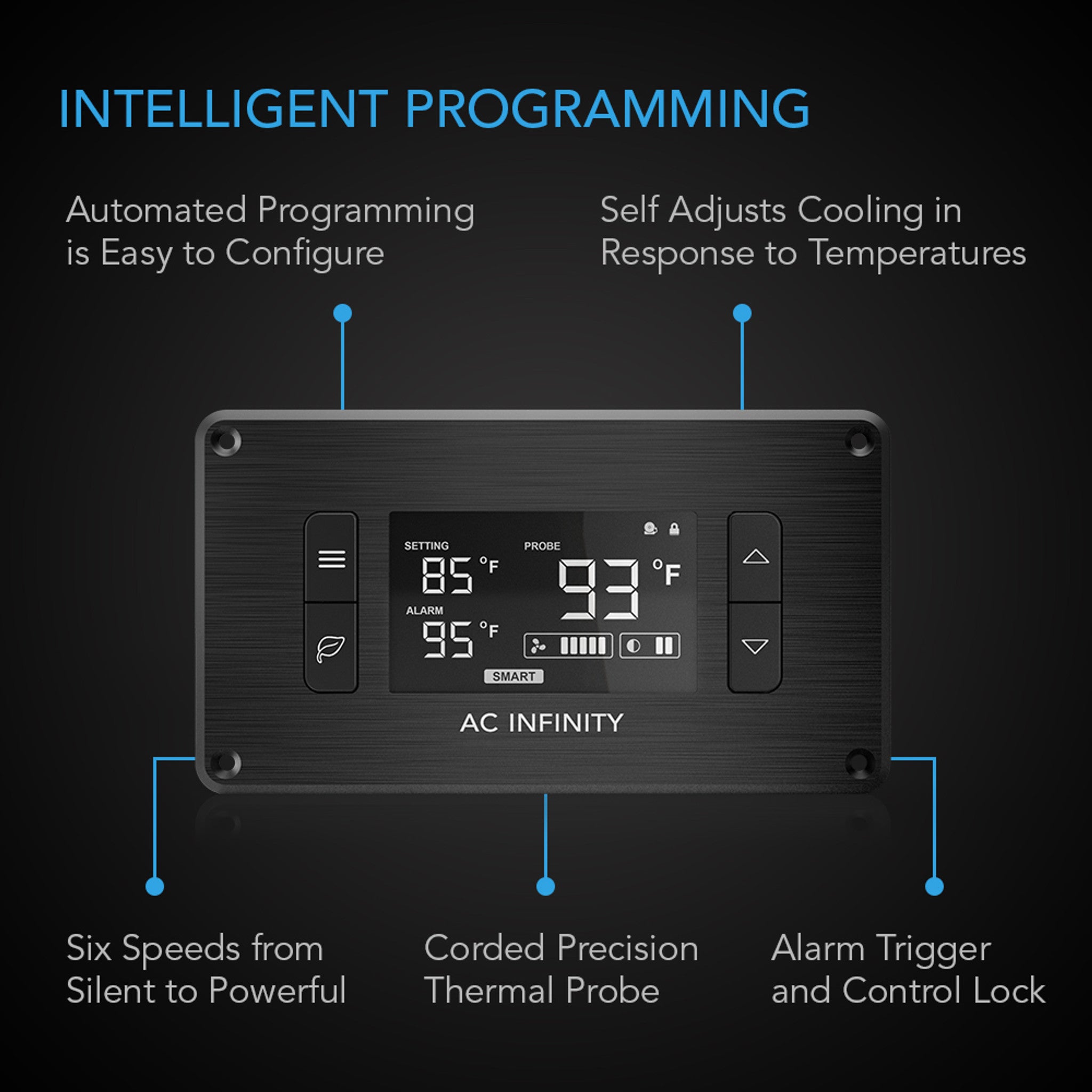

• LCD screen with alarms, display lock, buffers, memory, and six fan speeds
• CNC-machined aluminum enclosures for fan and controller
• Includes a boost adapter for high-performance airflow

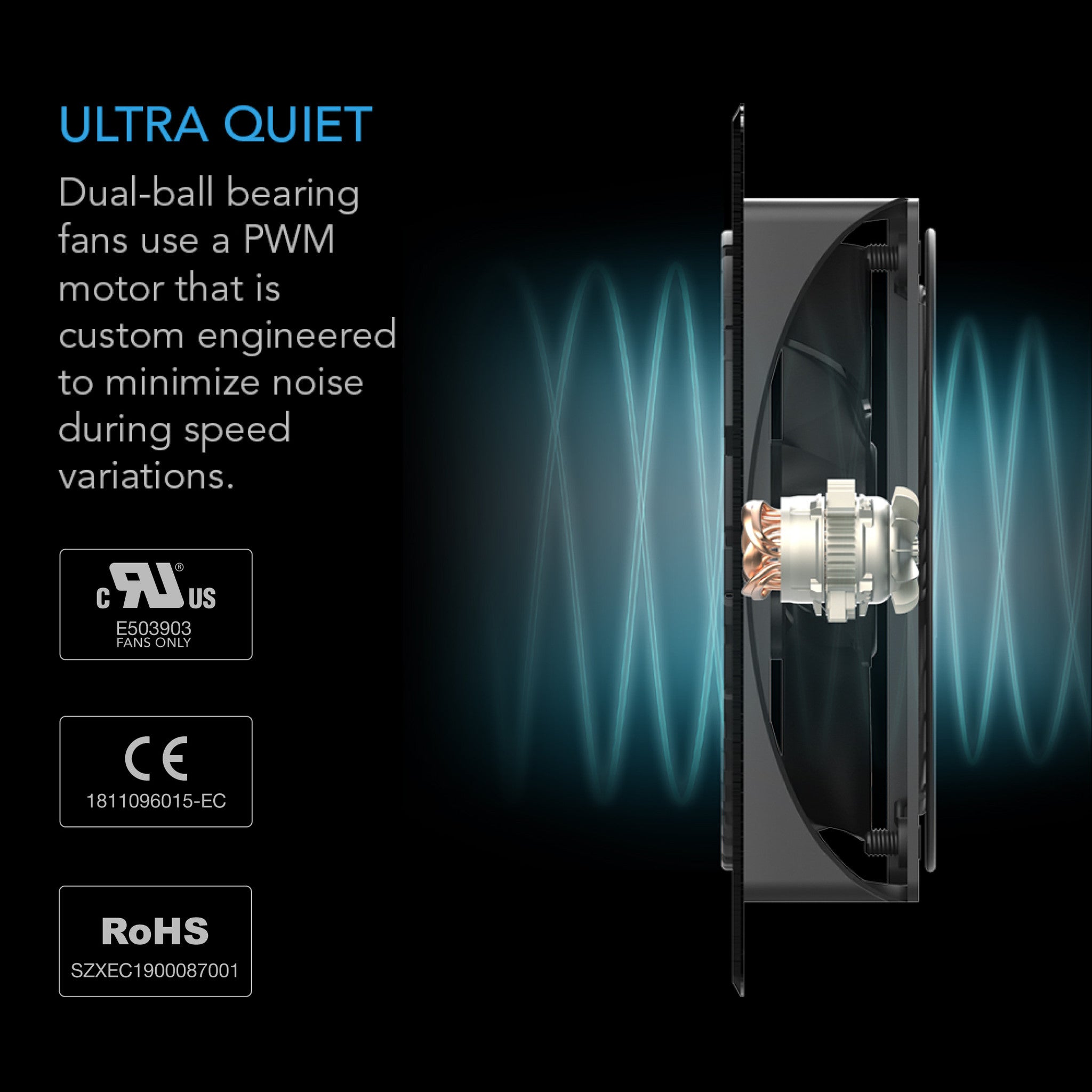

• Dual-ball bearings rated for 67,000 hours of operation

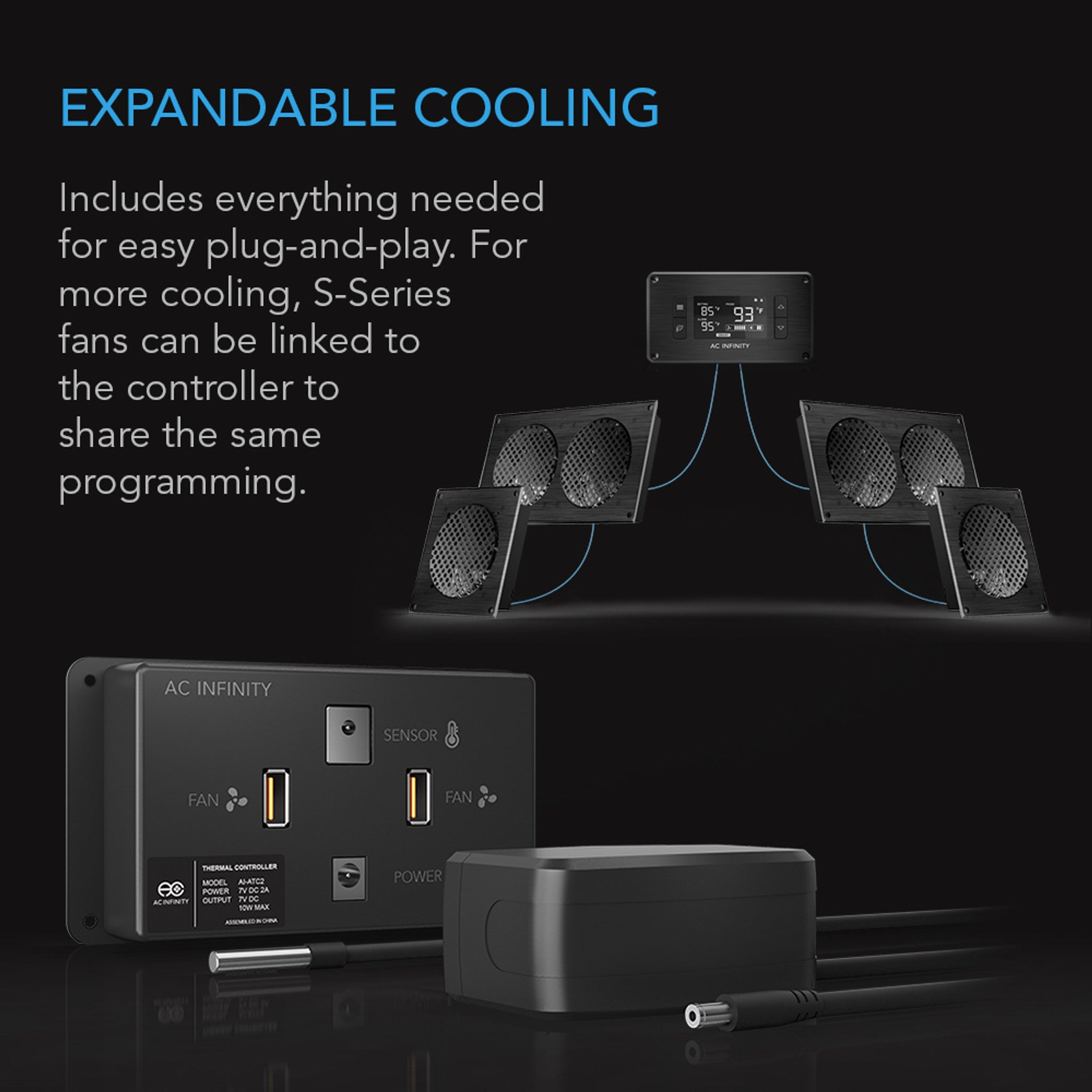

• Daisy-chain compatible with additional AIRPLATE S or T series fans
Applications

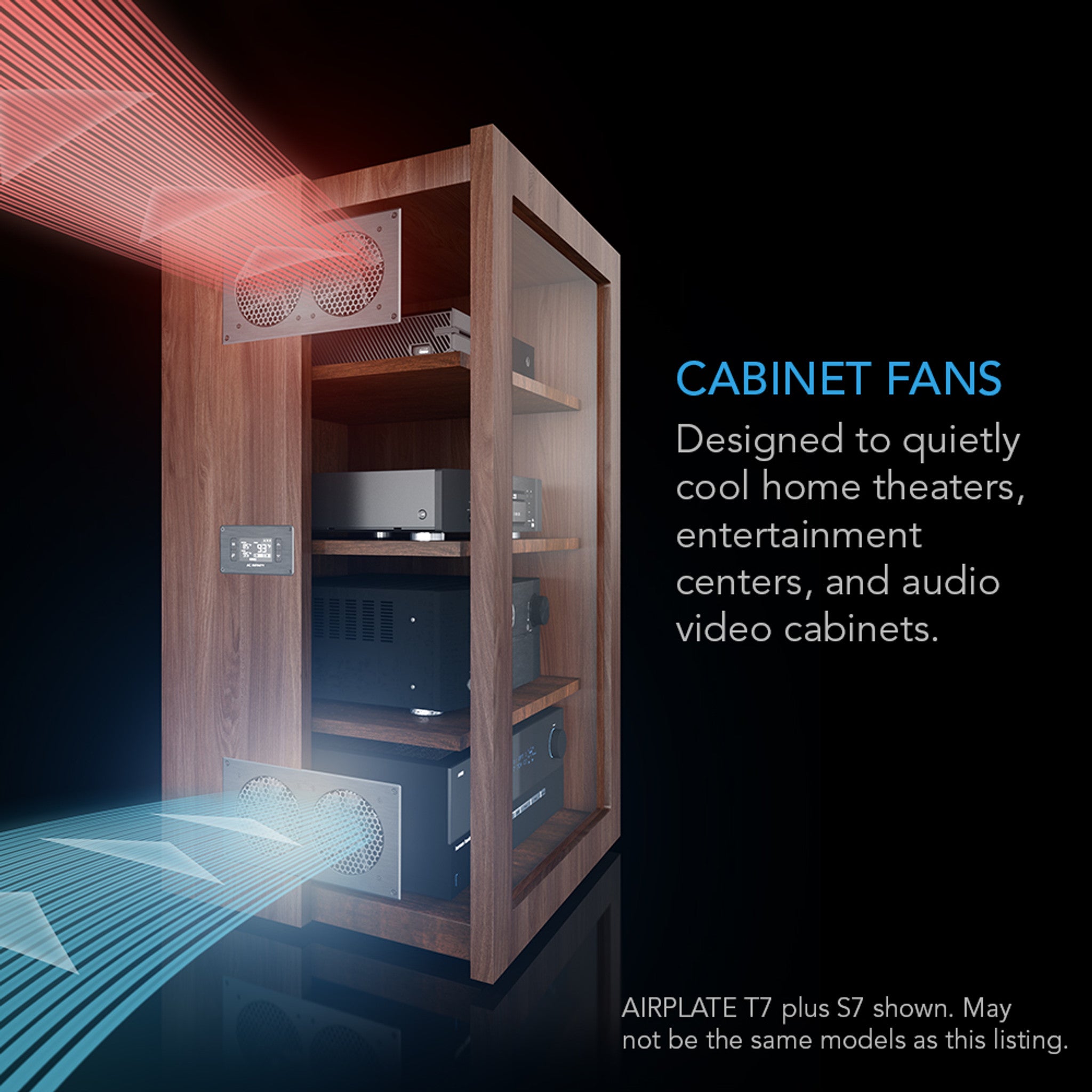

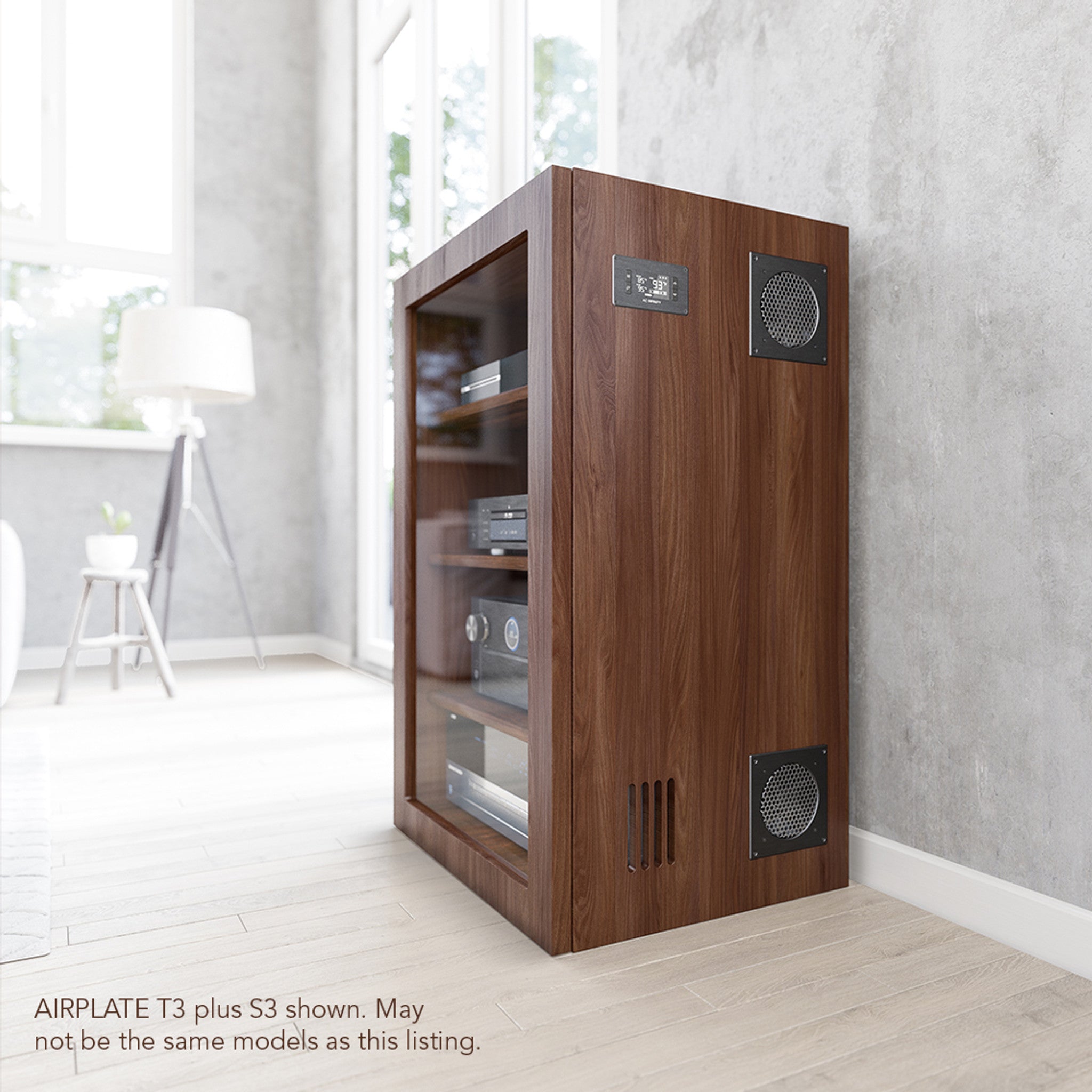

• Cooling AV cabinets, home theater systems, and entertainment centers
• Ventilating racks containing amplifiers, receivers, modems, or network devices
• Protecting heat-sensitive electronics in enclosed setups
• Ideal for automated, temperature-responsive cooling in multimedia or IT environments
Product specifications
| Specification |
Details |
| Manufacturer |
AC Infinity Inc. |
| Product Name |
AIRPLATE T3 |
| Product Model |
AI-APT3 |
| UPC Code |
854759004372 |

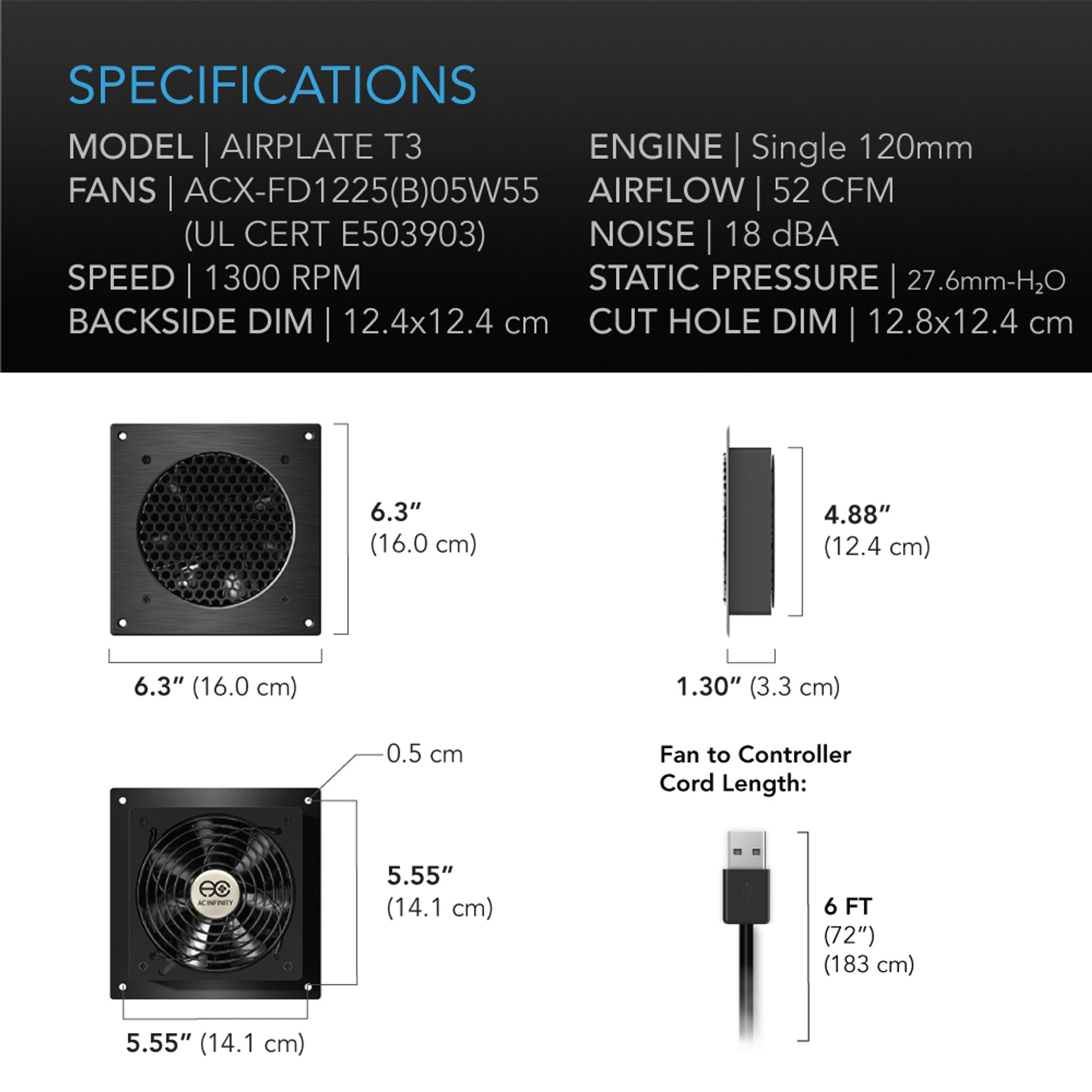

| Fan Unit Dimensions |
6.30 × 6.30 × 1.30 in (16.0 × 16.0 × 3.3 cm) |
| Backside Enclosure |
4.88 × 4.88 in (12.4 × 12.4 cm) |
| Required Mounting Hole |
5.04 × 5.04 in (12.8 × 12.8 cm) |
| Hole to Hole Distance |
5.55 × 5.55 in (14.1 × 14.1 cm) |
| Cord Length (Fan) |
72 in (6 ft) |

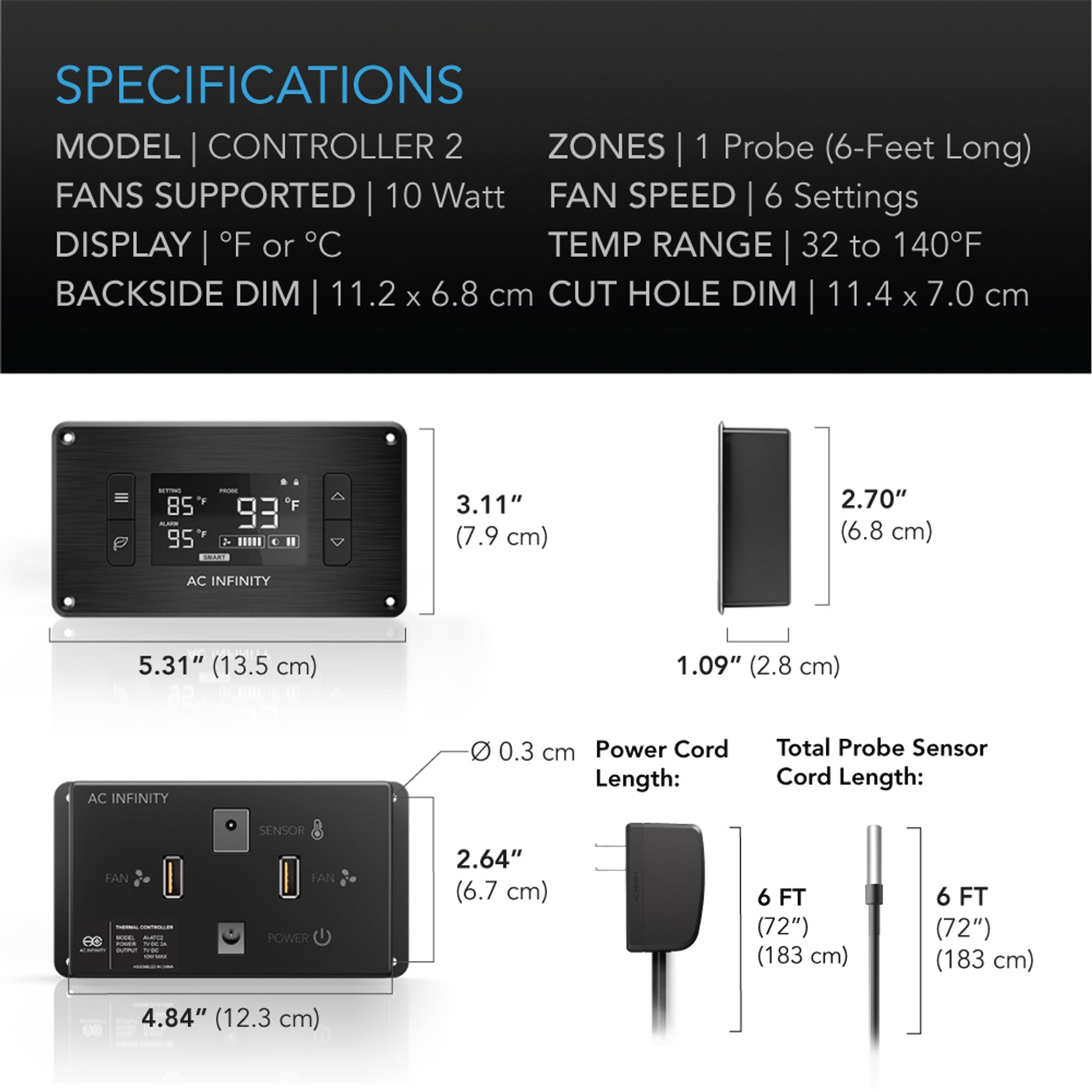

| Controller Dimensions |
5.20 × 3.11 × 1.10 in (13.2 × 7.9 × 2.8 cm) |
| Controller Backside Enclosure |
4.41 × 2.68 in (11.2 × 6.8 cm) |
| Controller Required Mounting Hole |
4.48 × 2.76 in (11.4 × 7.0 cm) |
| Controller Hole to Hole Distance |
4.71 × 2.64 in (12.0 × 6.7 cm) |
| Display Size |
2.25 × 1.25 in (4.7 × 3.2 cm) |
| Controller Cord |
72 in (6 ft) |
| Thermal Probe |
72 in (6 ft) |
| Airflow |
52 CFM |
| Noise |
18 dBA |
| Static Pressure |
1 mm-H₂O |
| Operating Voltage |
3–7V DC |
| Power |
2.2 W |
| Current |
0.44 A |
| Wall Adapter Input |
100–240V AC |
| Operating Humidity |
35–85% RH |
| Operating Temperature |
0–158°F |
| Fan Bearings |
Dual Ball |
| Life Expectancy |
67,000 hours |
| Approvals |
UL, CE, RoHS |
What’s included
• AIRPLATE T3 fan unit
• Thermal temperature controller
• Thermal probe
• Boost adapter
• Mounting hardware
• Power cables
