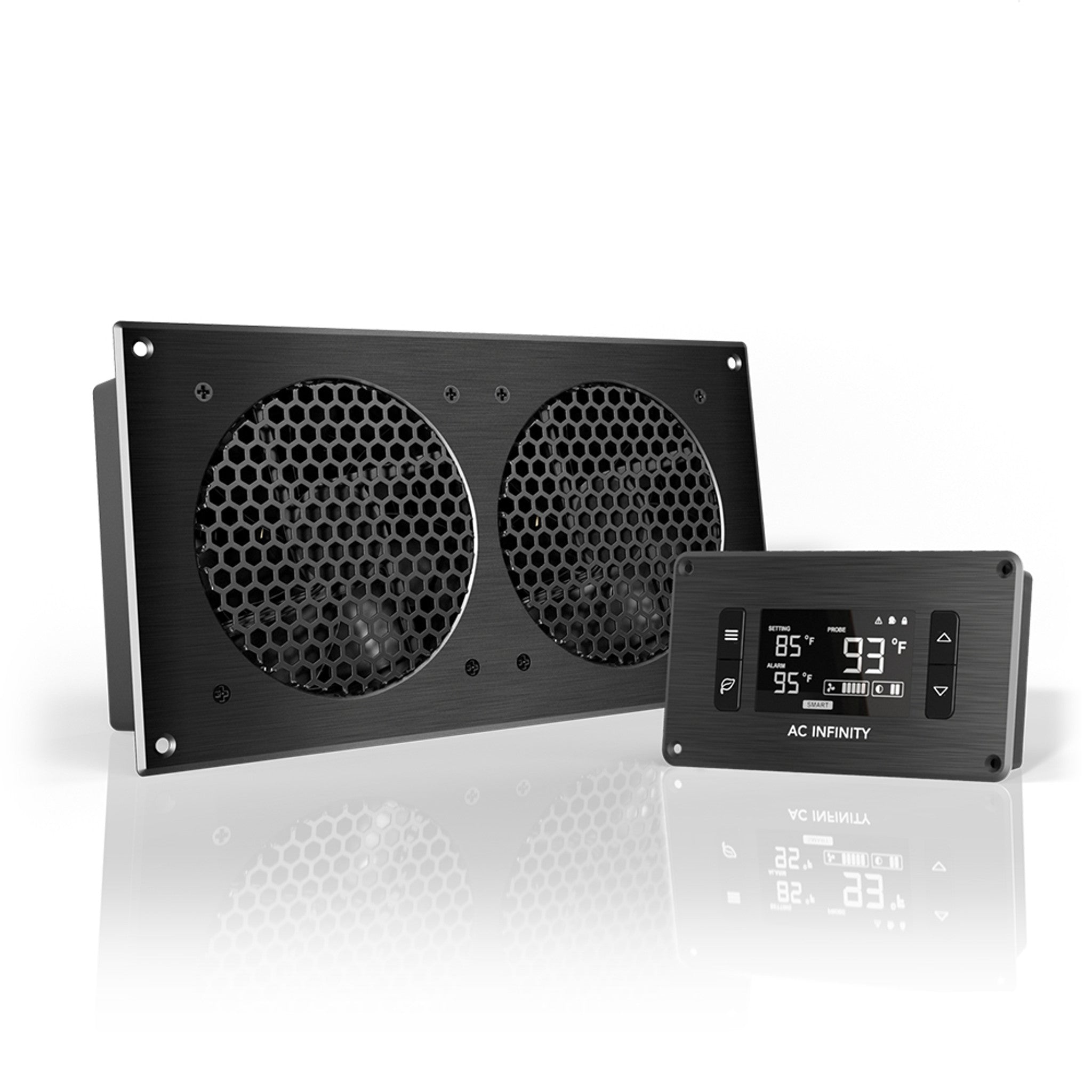

The AIRPLATE T7 is a high-efficiency, ultra-quiet cabinet cooling system featuring intelligent temperature-responsive control. Designed for AV cabinets, home theater setups, and electronics enclosures, it uses dual UL-certified fans housed in a CNC-machined aluminum frame for maximum durability and minimal noise.
Its advanced thermal controller automatically adjusts fan speed based on real-time temperature readings and includes alarms, display lock, multiple fan speeds, and power-loss memory. With dual-ball bearings and a 67,000-hour life rating, the AIRPLATE T7 delivers long-lasting cooling performance while staying whisper-quiet.
Key features

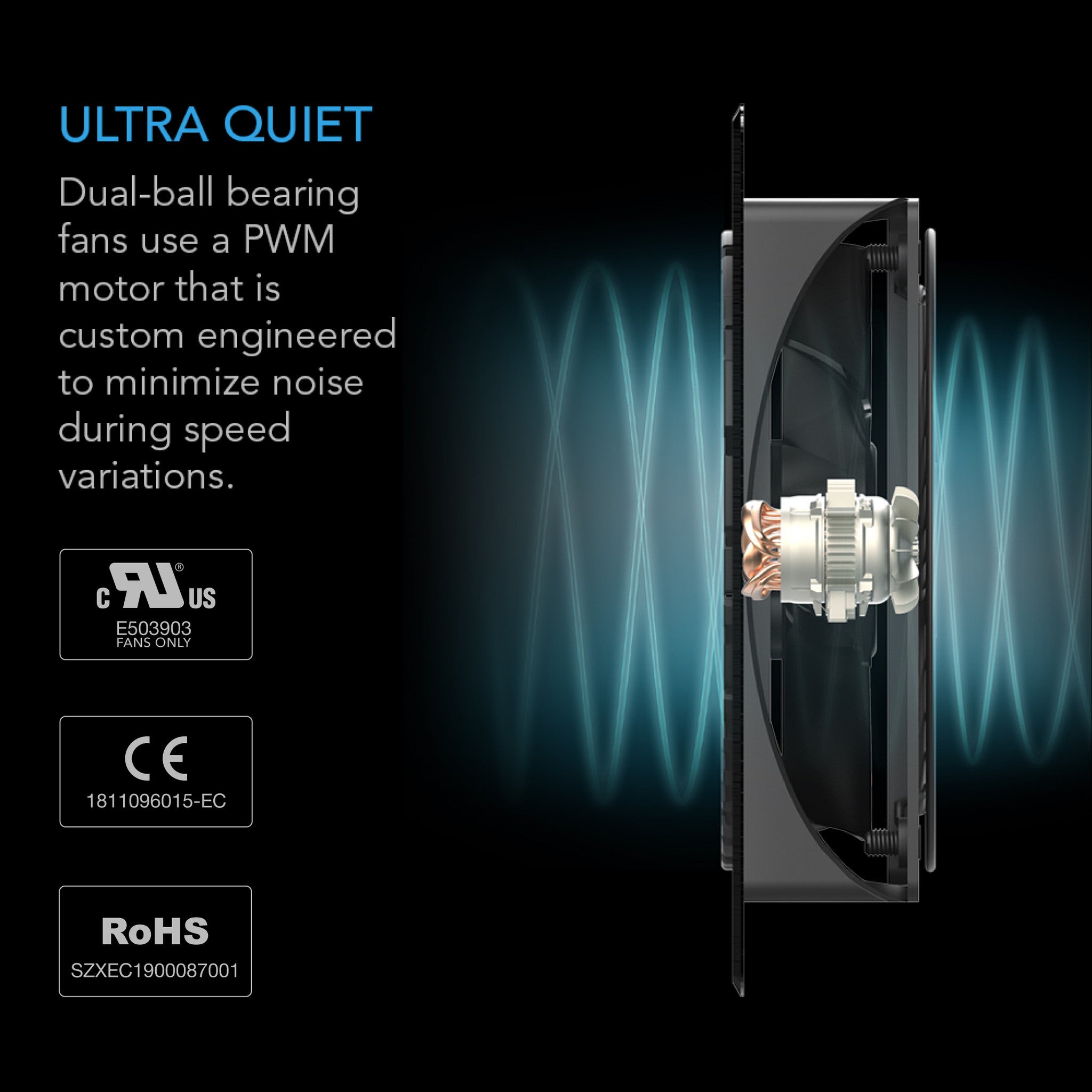

• Ultra-quiet dual-fan system producing just 19 dBA
• Intelligent thermal controller auto-adjusts fan speed as temperatures change

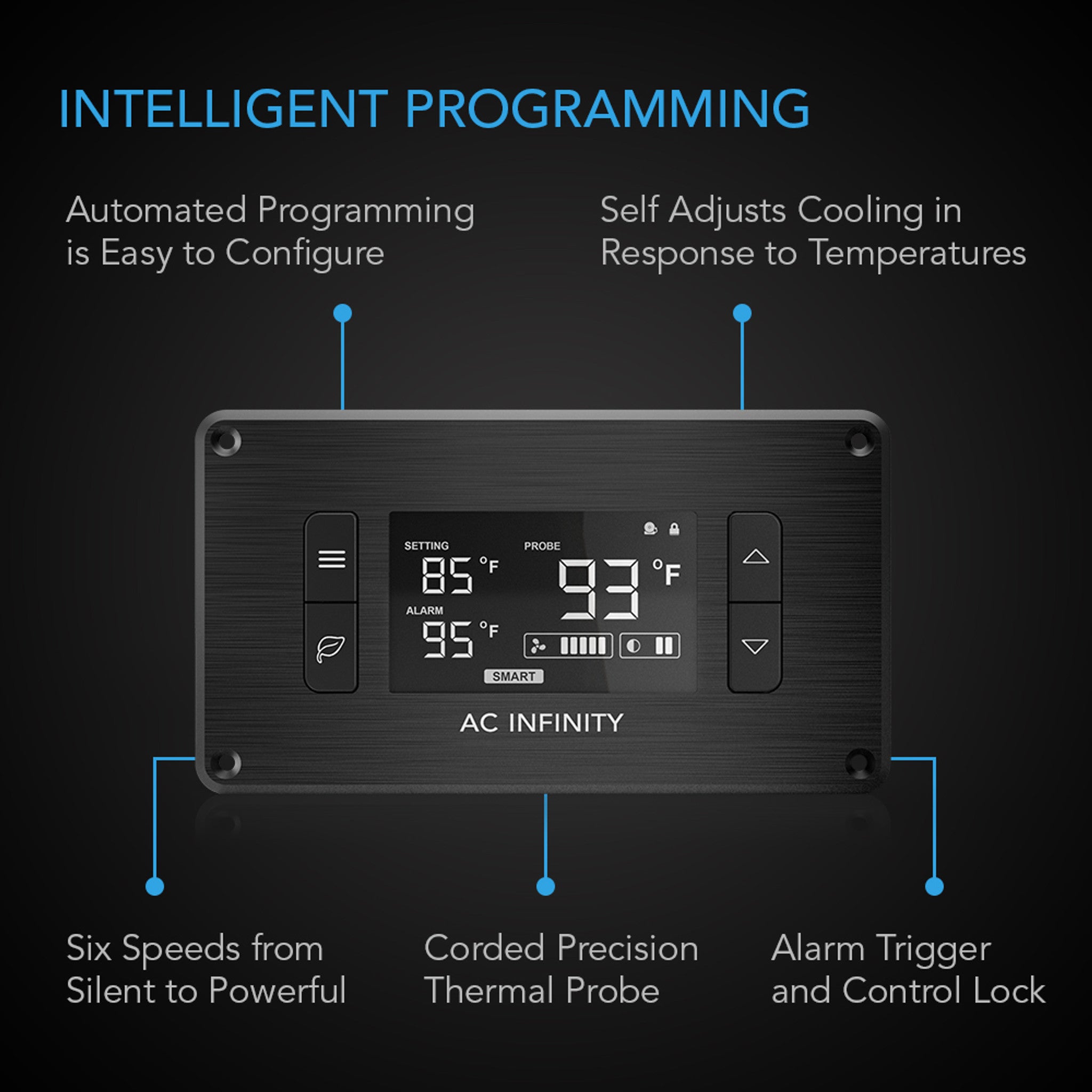

• LCD display with alarms, display lock, six fan speeds, buffer options, backlight control, and memory
• CNC-machined aluminum frames for both the fan unit and controller
• Water-resistant thermal probe for precise temperature monitoring
• Reversible airflow for intake or exhaust setup

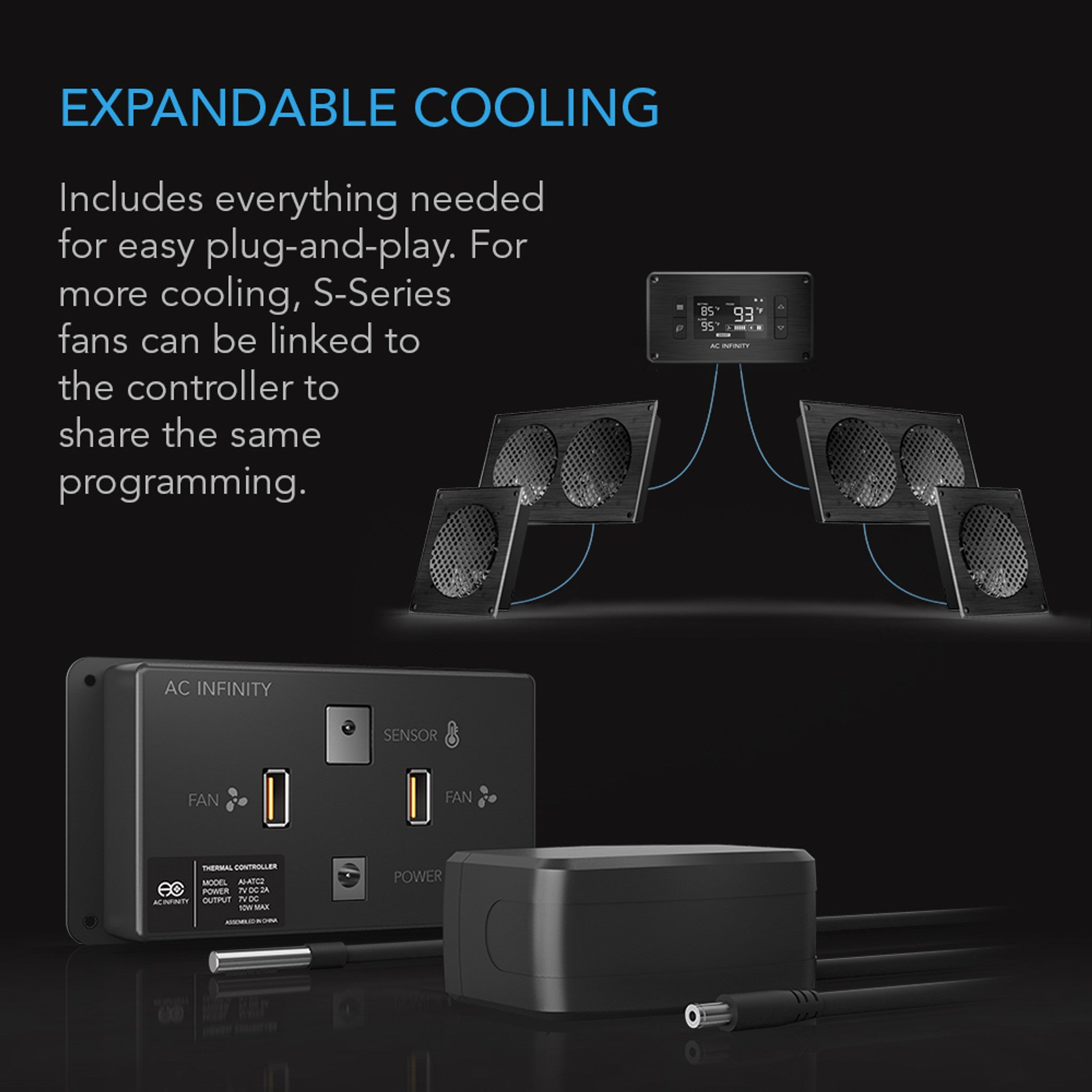

• Daisy-chain compatible with additional AIRPLATE fans (up to six units)
Applications

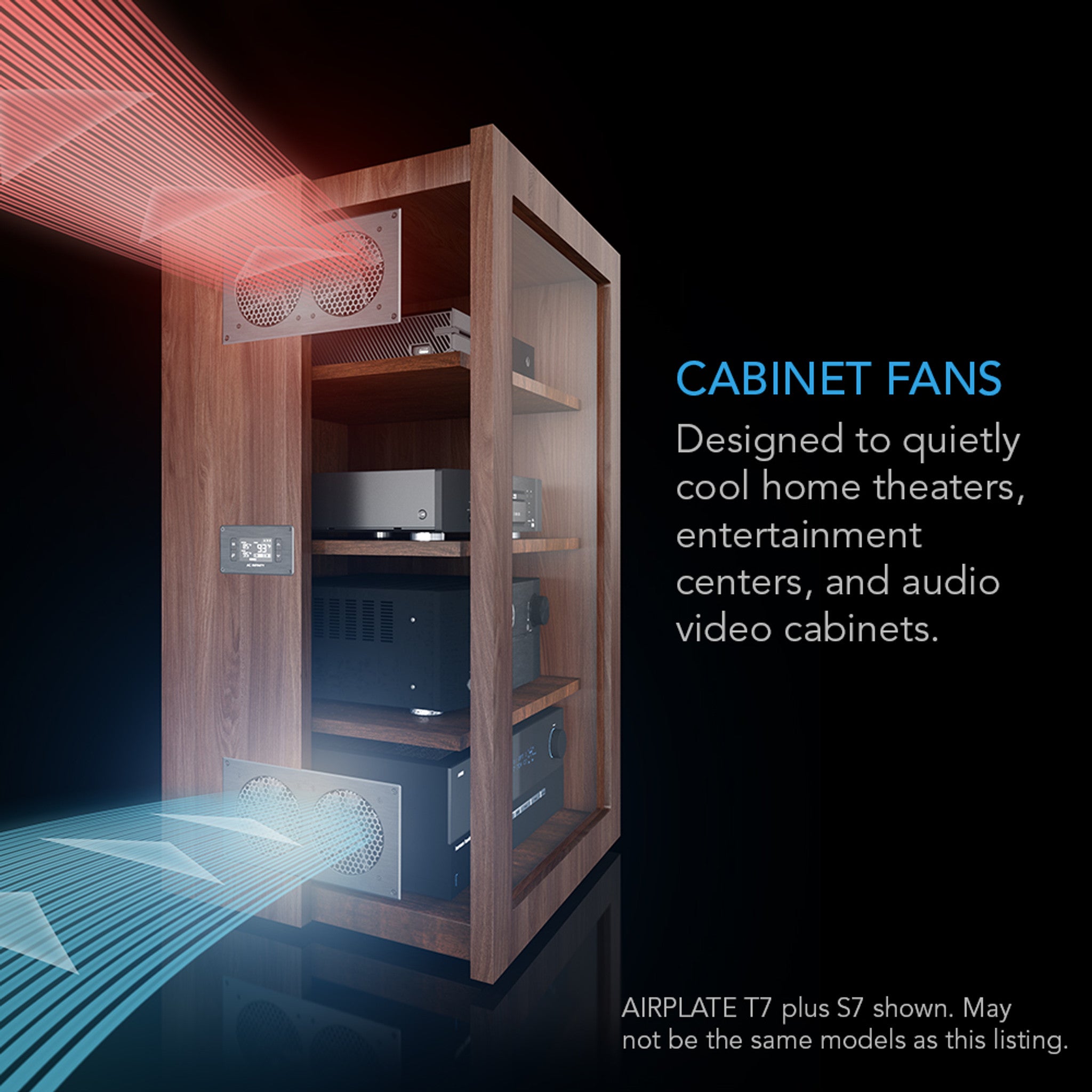

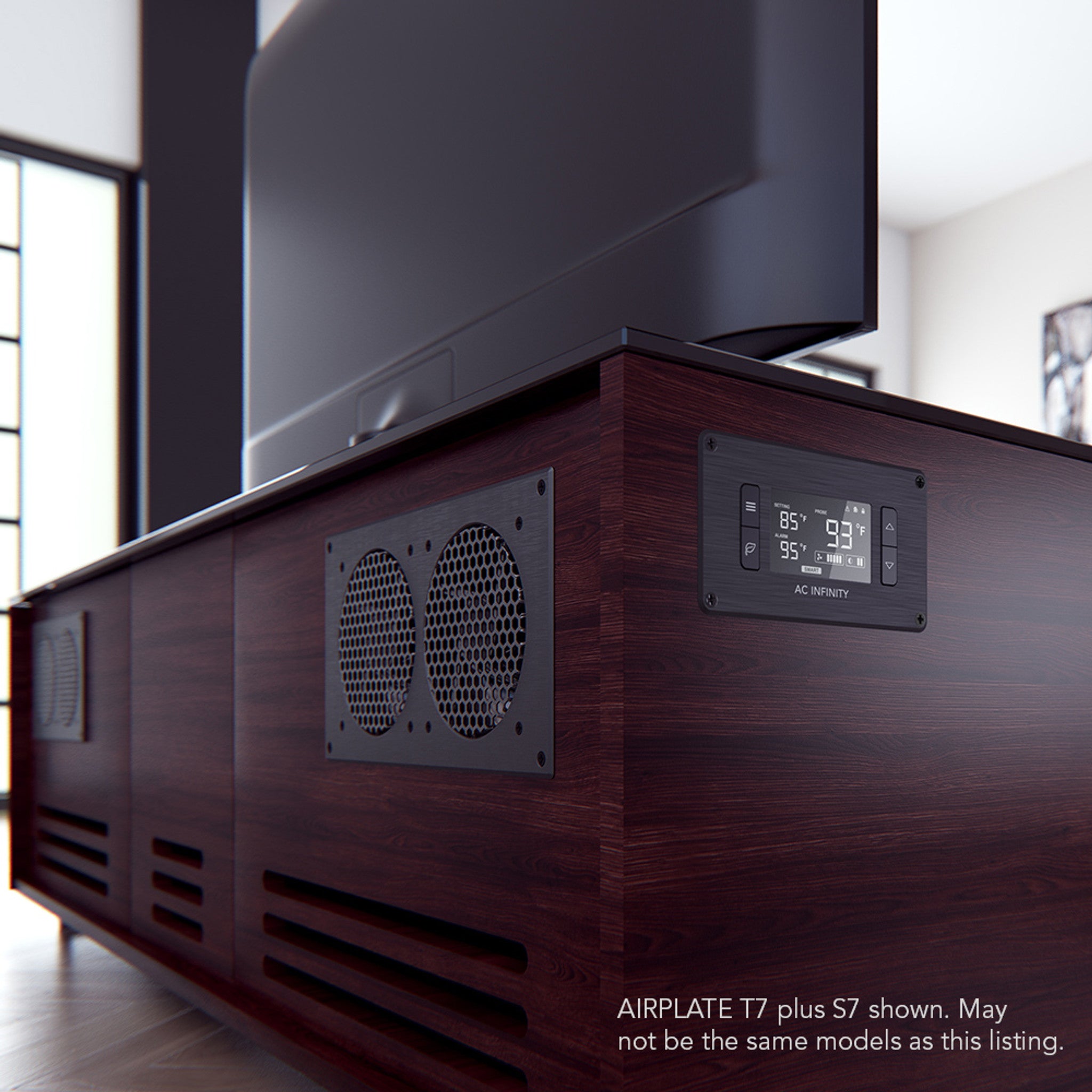

• Cooling home theater furniture and AV media cabinets
• Ventilating racks with amplifiers, receivers, modems, and network devices
• Thermal management of enclosed electronics systems
• Automated cooling for heat-sensitive equipment environments
Product specifications
| Specification |
Details |
| Manufacturer |
AC Infinity Inc. |
| Product Name |
AIRPLATE T7 |
| Product Model |
AI-APT7 |
| UPC Code |
854759004389 |

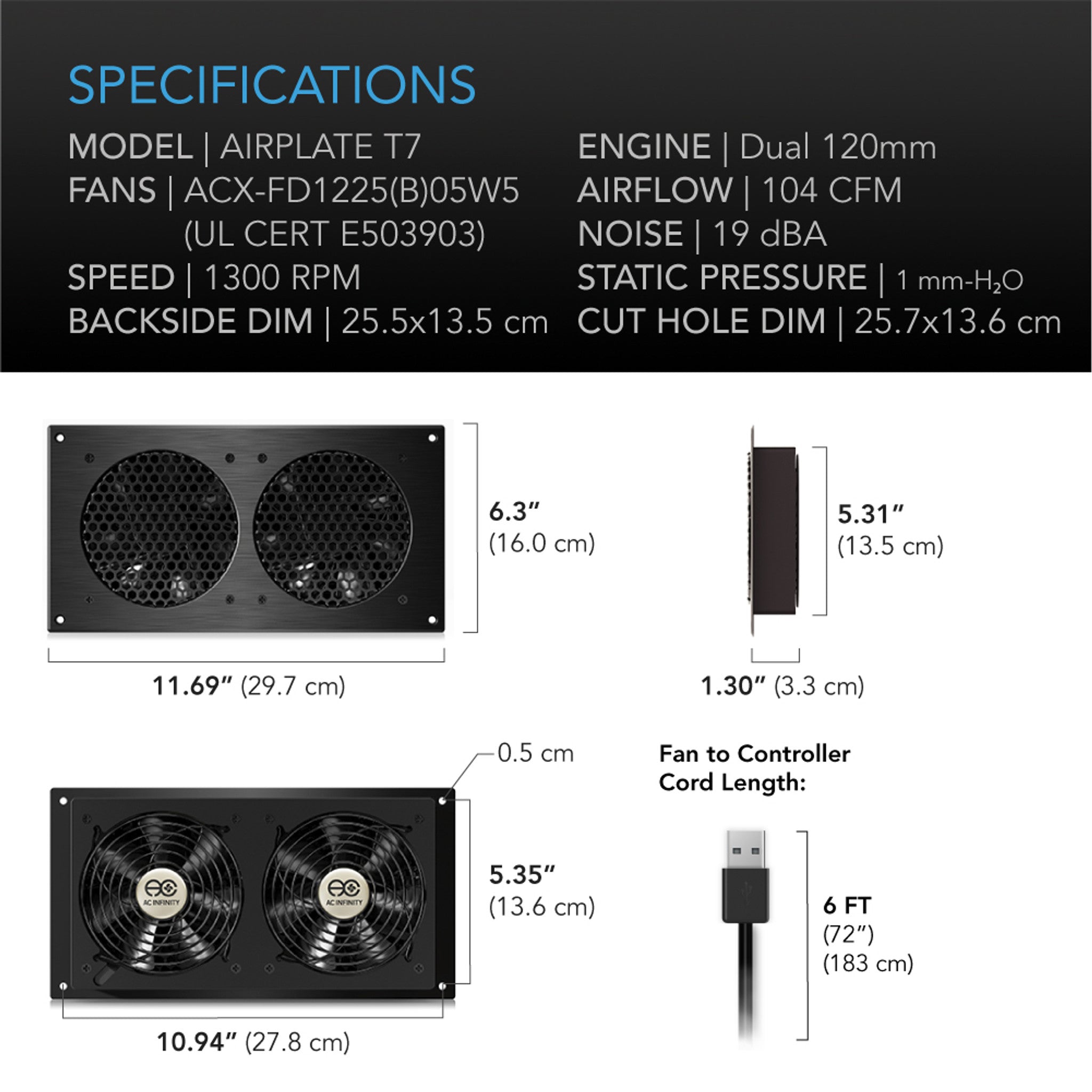

| Fan Unit Dimensions |
11.69 × 6.30 × 1.30 in (29.7 × 15.5 × 3.3 cm) |
| Backside Enclosure |
10.04 × 5.31 in (25.5 × 13.5 cm) |
| Required Mounting Hole |
10.12 × 5.35 in (25.7 × 13.6 cm) |
| Hole to Hole Distance |
10.94 × 5.35 in (27.8 × 13.6 cm) |
| Screw Hole Size |
Ø 0.197 in (Ø 0.5 cm) |
| Cord Length (Fan) |
72 in (6 ft) |

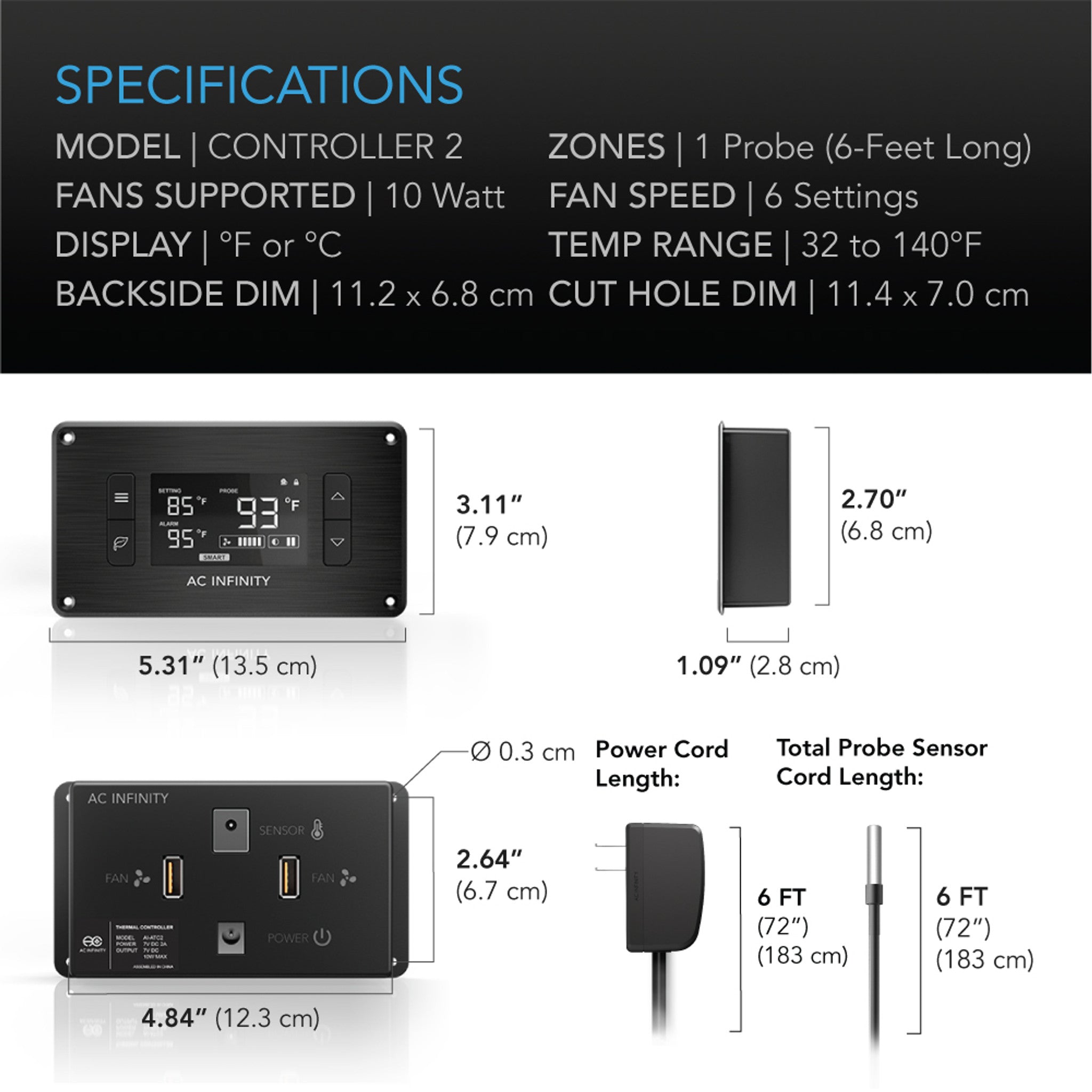

| Controller Dimensions |
5.20 × 3.11 × 1.10 in (13.2 × 7.9 × 2.8 cm) |
| Controller Backside Enclosure |
4.41 × 2.68 in (11.2 × 6.8 cm) |
| Controller Required Mounting Hole |
4.48 × 2.76 in (11.4 × 7.0 cm) |
| Controller Hole to Hole Distance |
4.71 × 2.64 in (12.0 × 6.7 cm) |
| Display Size |
2.25 × 1.25 in (4.7 × 3.2 cm) |
| Cord Length (Controller) |
72 in (6 ft) |
| Thermal Probe |
72 in (6 ft) |
| Airflow |
104 CFM |
| Noise |
19 dBA |
| Static Pressure |
1 mm-H₂O |
| Operating Voltage |
3–7V DC |
| Power |
3.3 W |
| Current |
0.66 A |
| Wall Adapter Input |
100–240V AC |
| Operating Humidity |
35–85% RH |
| Operating Temperature |
0–158°F |
| Fan Bearings |
Dual Ball |
| Mounting Positions |
Horizontal or Vertical |
| Life Expectancy |
67,000 hours |
| Approvals |
UL, CE, RoHS |
What’s included
• AIRPLATE T7 dual-fan unit
• Advanced thermal controller
• Water-resistant thermal probe
• Mounting hardware
• Power cables
