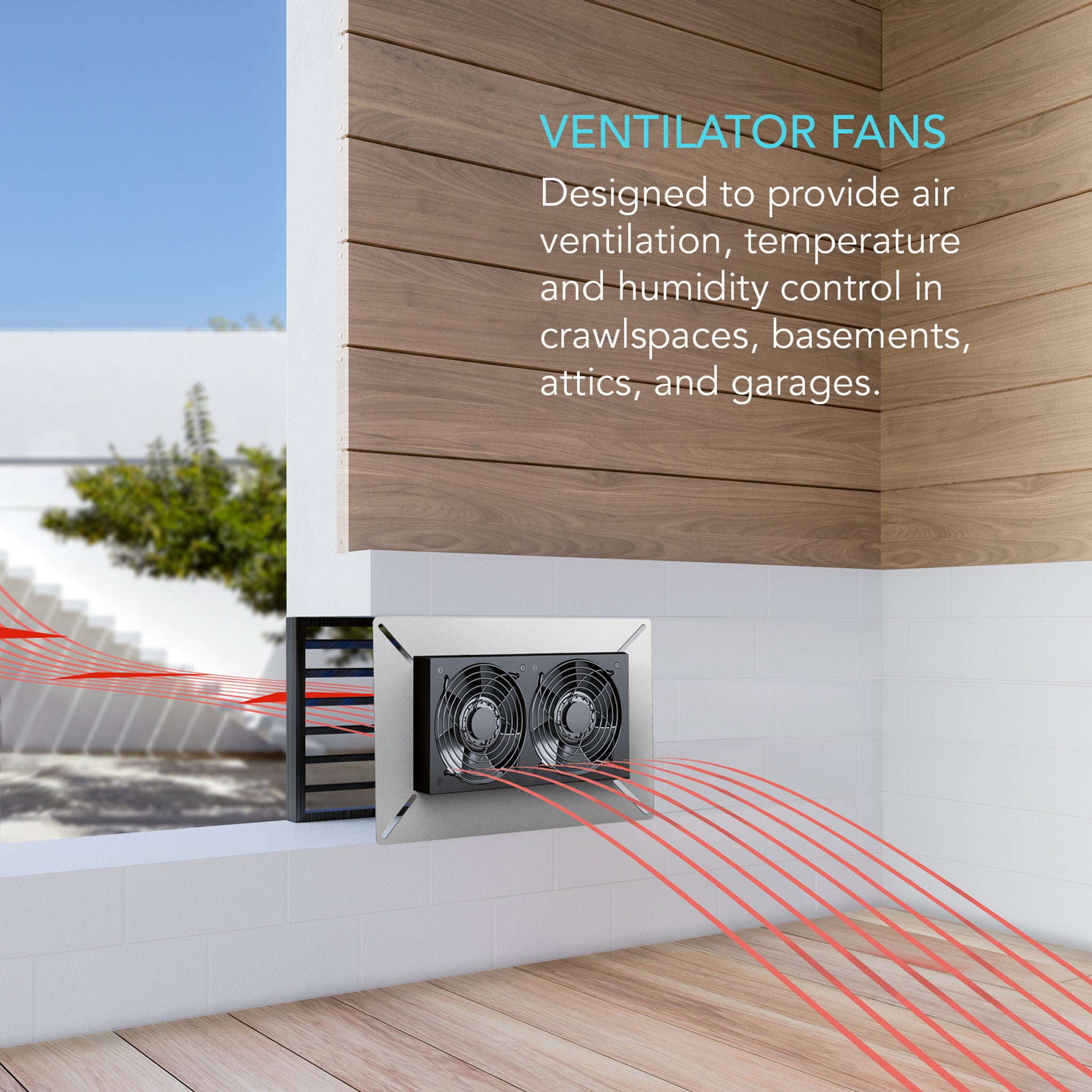

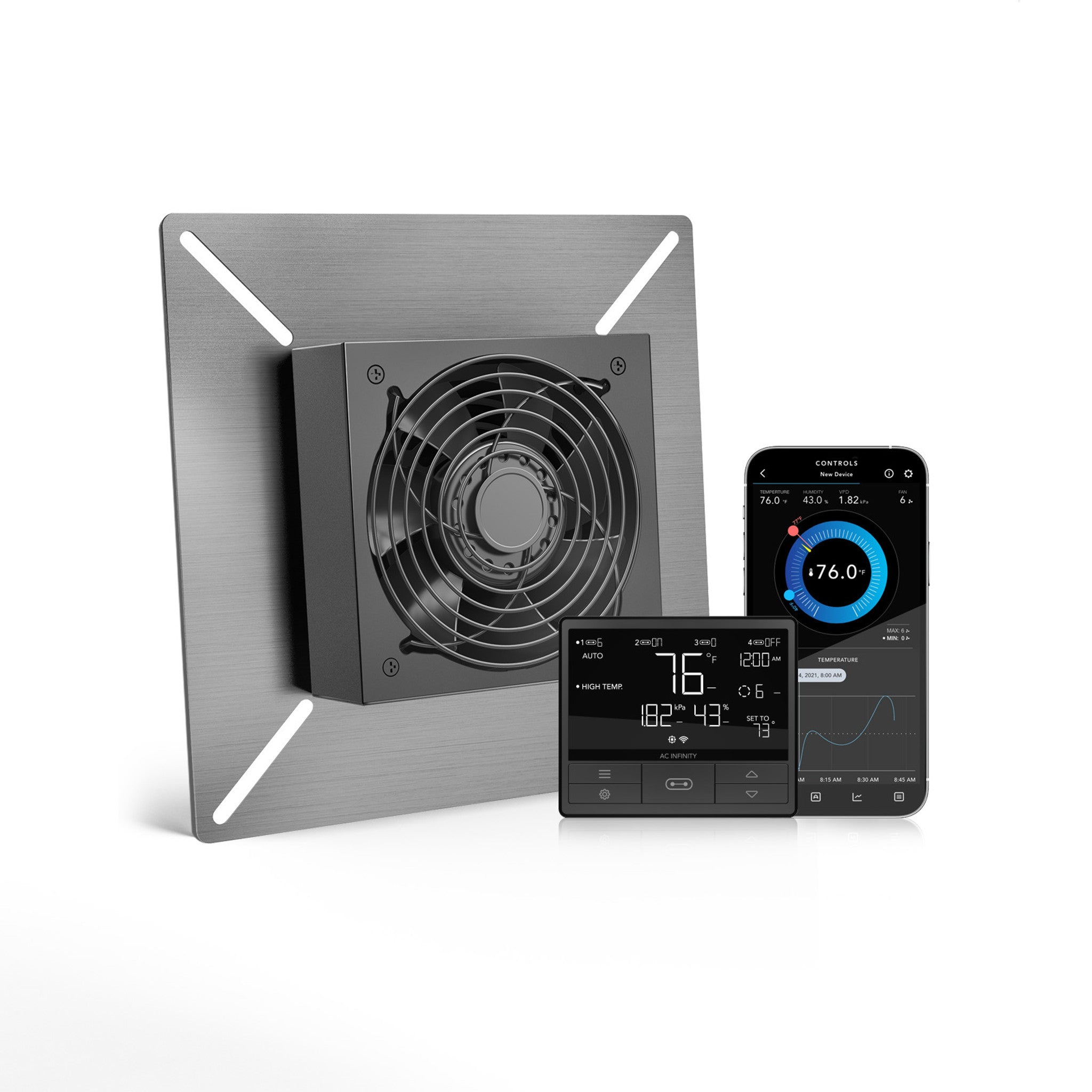

This 6-inch crawlspace ventilator fan is engineered to automatically control humidity, temperature, and airflow in enclosed home spaces such as crawlspaces, basements, attics, and garages. It expels stale air, moisture, and odors to help protect your home from mold, wood damage, and poor air quality.
The included smart controller provides advanced temperature, humidity, and VPD automation with timers, cycles, schedules, and minimum speed settings for constant airflow. Its heavy-duty aluminum frame houses a PWM-controlled, IP55-rated 120mm fan for efficient, low-noise performance. Designed for long-lasting reliability, this system integrates seamlessly into the UIS platform for full WiFi remote control and climate monitoring.
Key features
• High-airflow 6-inch crawlspace ventilation fan for moisture and odor control

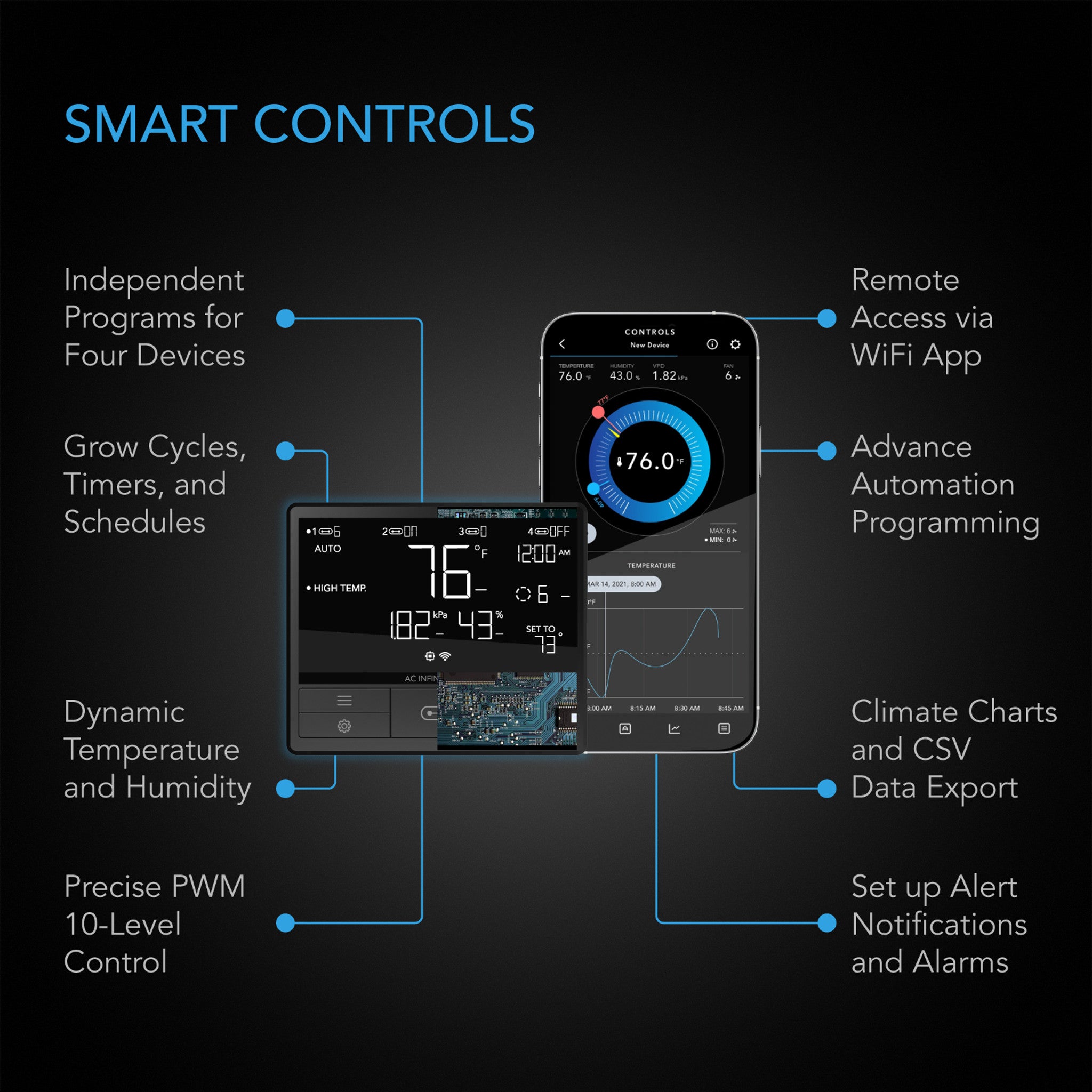

• Smart controller with dynamic temperature, humidity, and VPD programming
• WiFi access for remote automation, alerts, and historical climate data

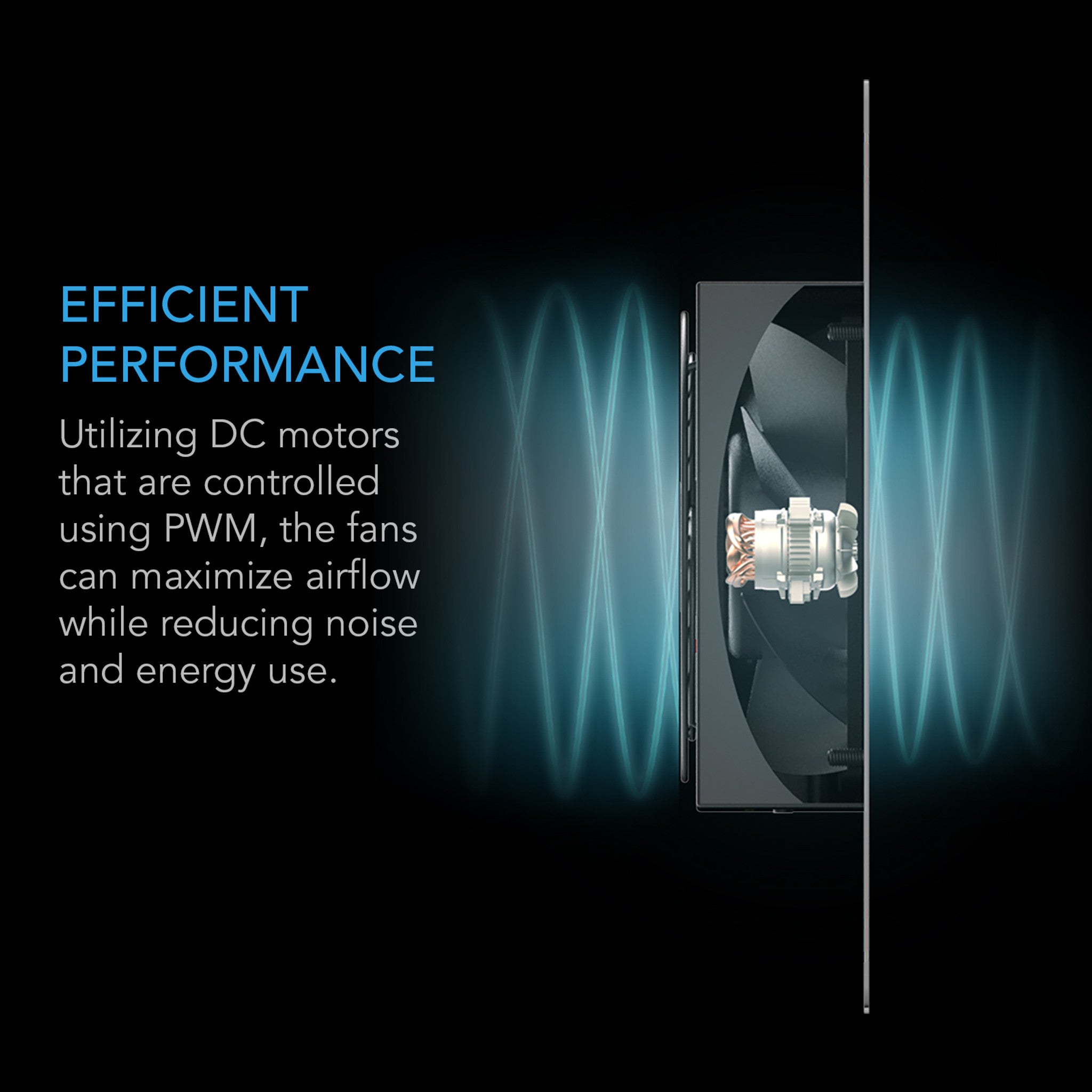

• PWM-controlled DC motor for efficient, smooth, quiet performance
• Heavy-duty anodized aluminum frame with IP55 waterproof/dustproof fan

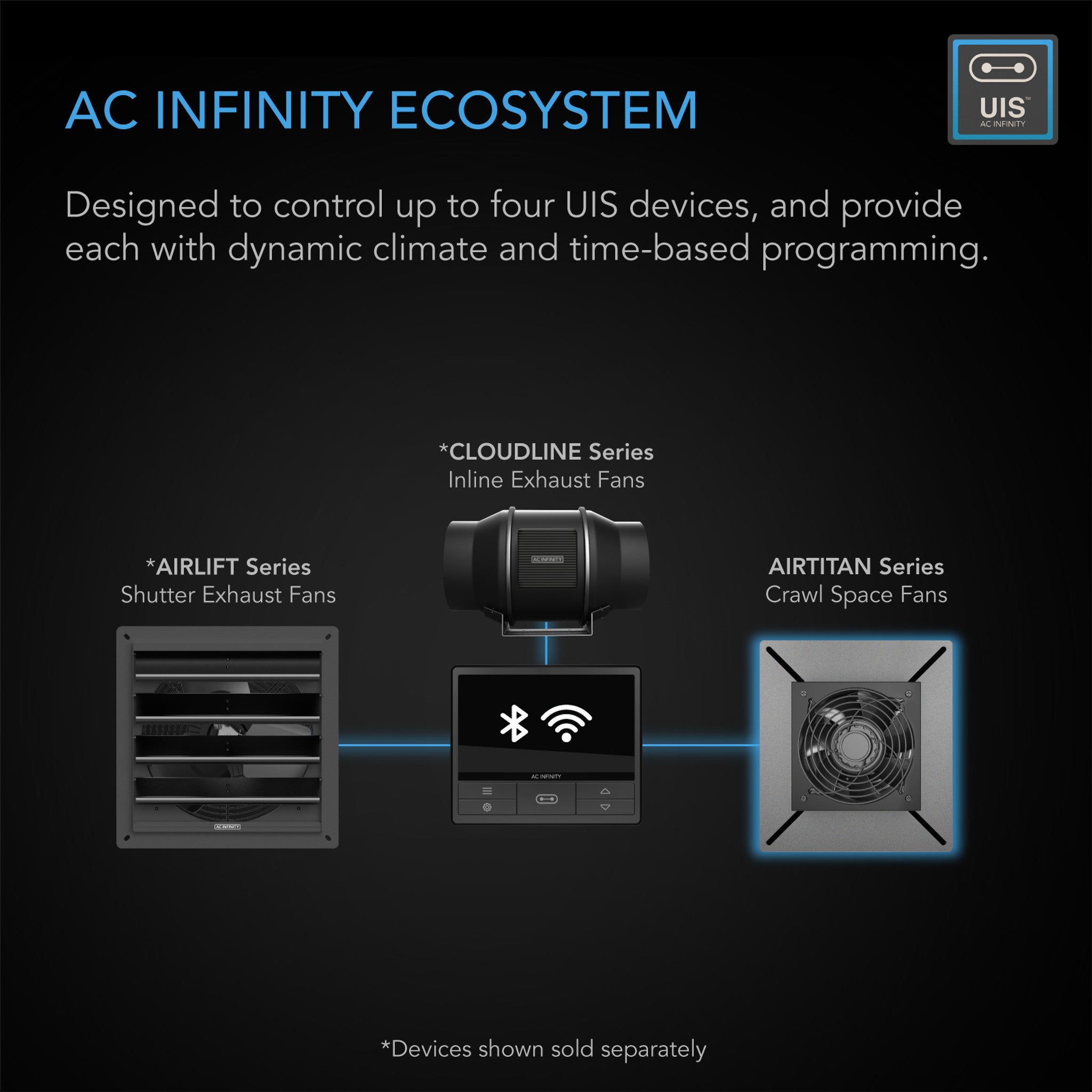

• Compatible with UIS devices for automated environmental control
Applications
• Crawlspaces and basements
• Attics, garages, storage rooms
• Moisture and odor reduction
• Improving household ventilation and indoor air quality
• Automated climate control setups with UIS controllers

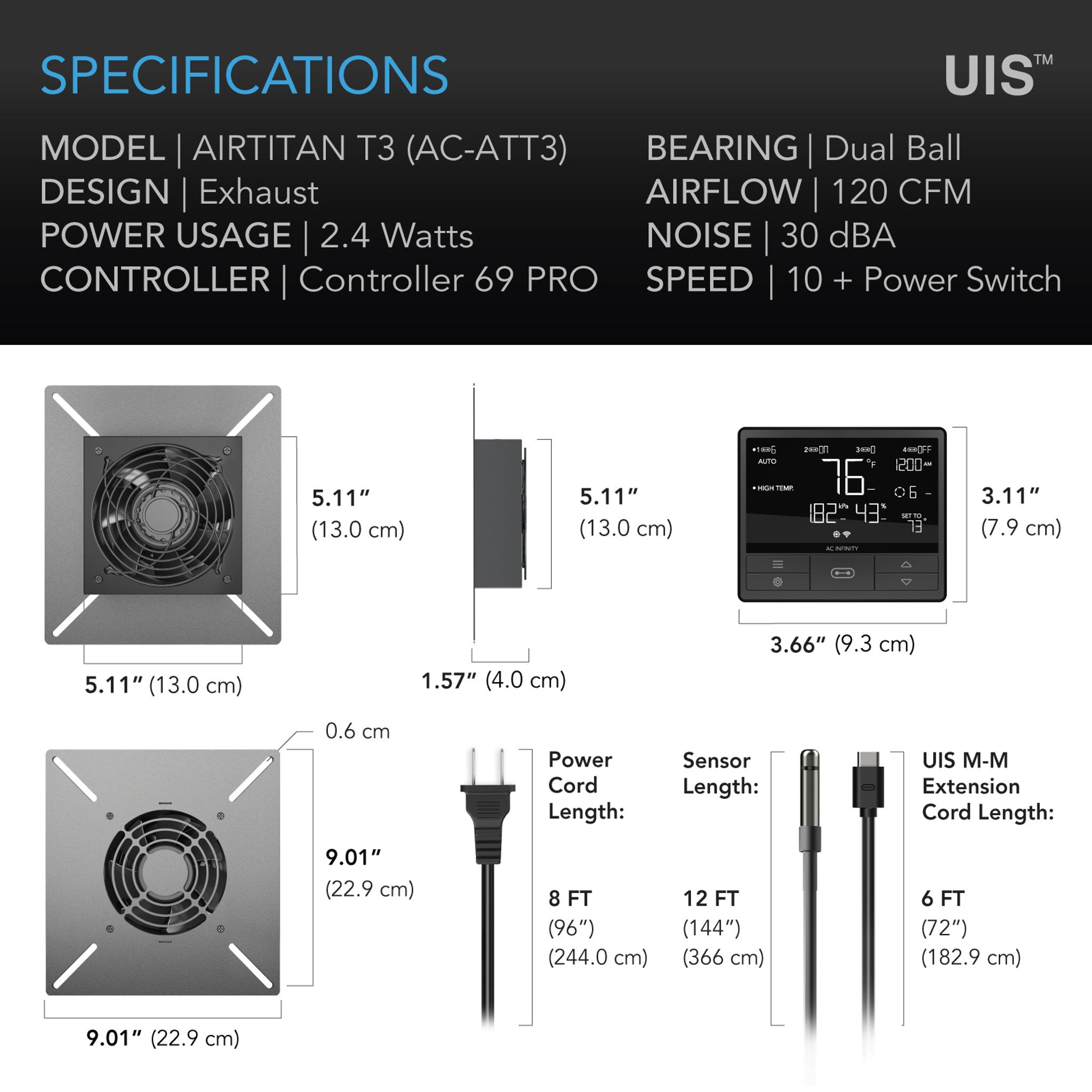

Product specifications
| Specification |
Details |
| Manufacturer |
AC Infinity Inc. |
| Product Name |
AIRTITAN T3 |
| Product Model |
AC-ATT3 |
| UPC Code |
819137020467 |
| Fan Unit Dimensions |
6.30 x 6.30 x 1.81 in (16.0 x 16.0 x 4.6 cm) |
| Backside Enclosure Dimensions |
4.88 x 4.88 in (12.4 x 12.4 cm) |
| Required Mounting Hole |
5.04 x 5.04 in (12.8 x 12.8 cm) |
| Hole to Hole Distance |
5.55 x 5.55 in (14.1 x 14.1 cm) |
| Screw Hole Size |
0.197 in (0.5 cm) |
| Cord Length to Controller |
72 in (6 feet) |
| Controller Dimensions |
5.19 x 2.91 x 1.06 in (13.2 x 7.4 x 2.7 cm) |
| Controller Hole to Hole Distance |
4.71 x 2.64 in (12.0 x 6.7 cm) |
| Controller Screw Hole Size |
0.119 in (0.3 cm) |
| Display Size |
3.5 x 1.4 in (9 x 3.5 cm) |
| Cord Length to Plug |
72 in (6 feet) |
| Sensor Probe Length |
144 in (12 feet) |
| Total Airflow |
120 CFM |
| Total Noise |
30 dBA |
| Static Pressure |
5.46 mm-H2O |
| Operating Voltage |
12V DC |
| Power |
2.4 W |
| Current |
0.3 A |
| Wall Adapter Input |
100–240V AC |
| Operating Humidity |
35–85% RH |
| Operating Temperature |
32–140°F |
| Fan Bearings |
Dual Ball |
| Mounting Positions |
Horizontal or Vertical |
| Life Expectancy |
67,000 hours |
| CE & RoHS Certified |
Yes |
What’s included
• AIRTITAN T3 fan unit
• Smart temperature and humidity controller
• Sensor probe
• Power cables
• Mounting hardware
• Installation manual
