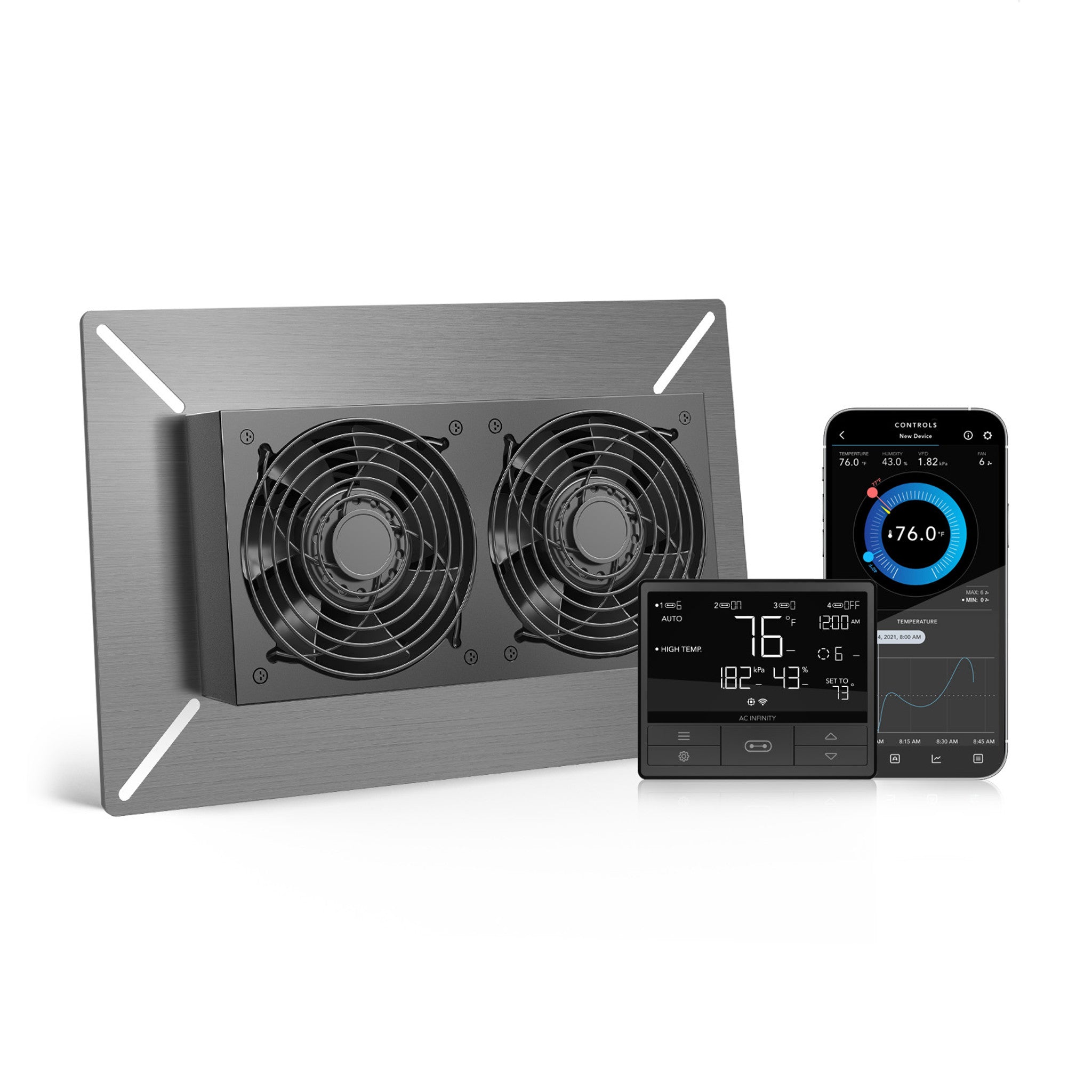

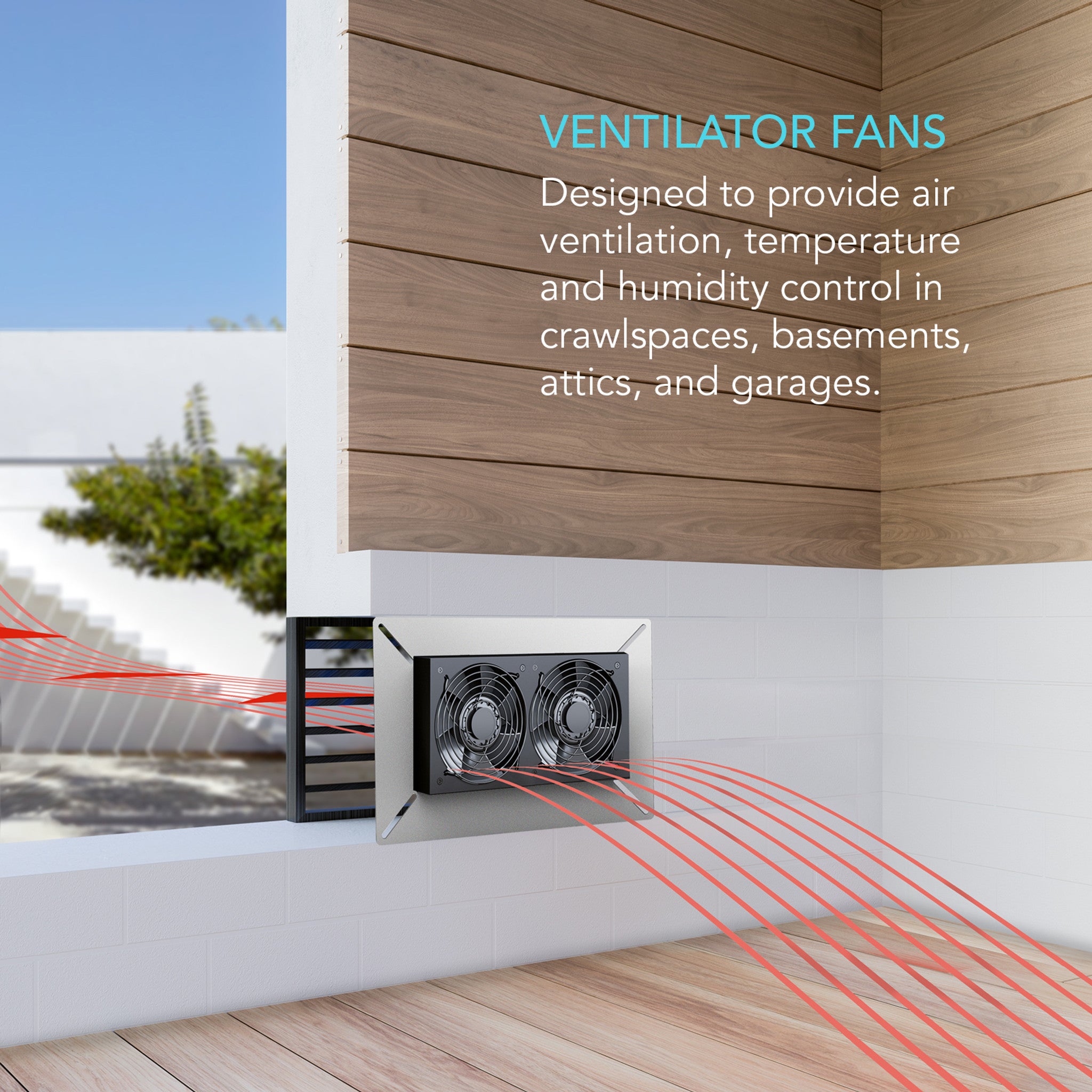

This 12-inch crawlspace ventilator fan is engineered to automatically control humidity, temperature, and airflow in enclosed areas such as crawlspaces, basements, attics, and garages. It removes stale air, moisture, and odors to help prevent mold, mildew, and structural damage inside the home.
The included smart controller provides dynamic temperature, humidity, and VPD automation with programmable timers, cycles, scheduling, and minimum speed settings. Its dual 120mm PWM-controlled fans deliver strong airflow with low noise and low energy consumption. Built with a heavy-duty aluminum frame and IP55-rated fans, this system is designed for long-lasting performance and seamless integration with other UIS™ devices through WiFi.
Key features
• Dual-fan crawlspace ventilation system for moisture and odor control

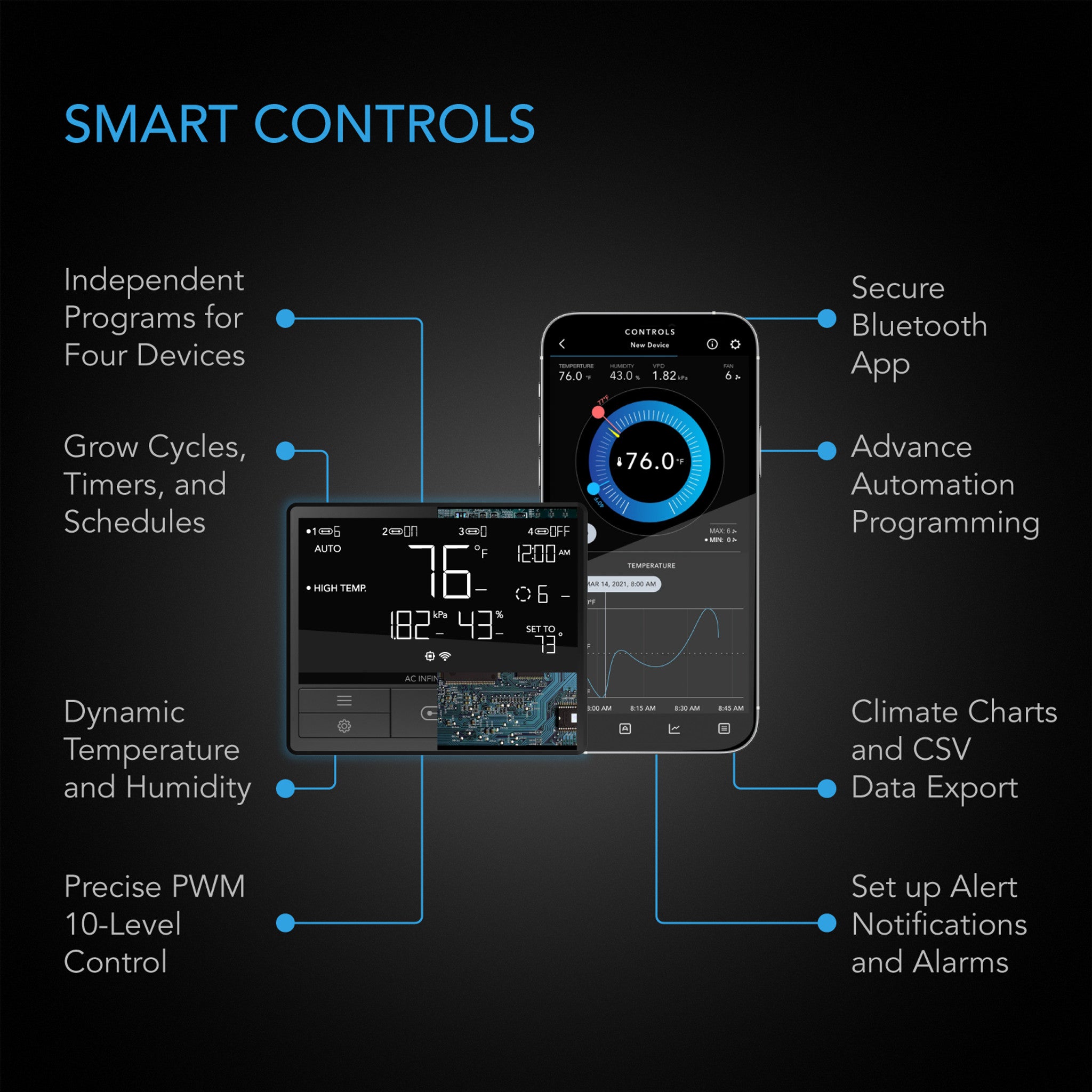

• Smart controller with dynamic temperature, humidity, and VPD automation
• WiFi app access for advanced programs, charts, alerts, and remote control

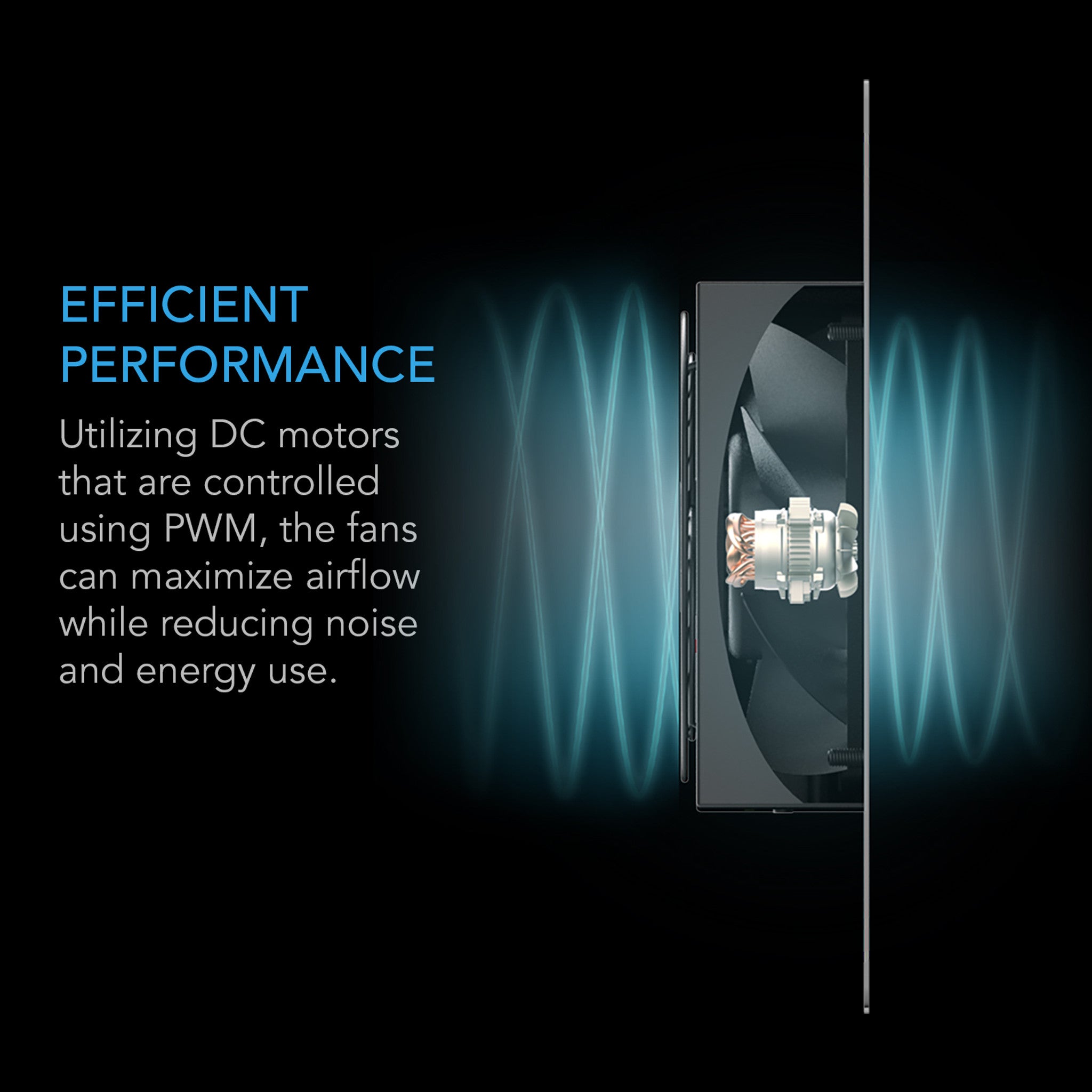

• PWM-controlled DC fans for efficient, quiet, low-power operation
• Heavy-duty aluminum frame with IP55-rated fans for dust and water resistance

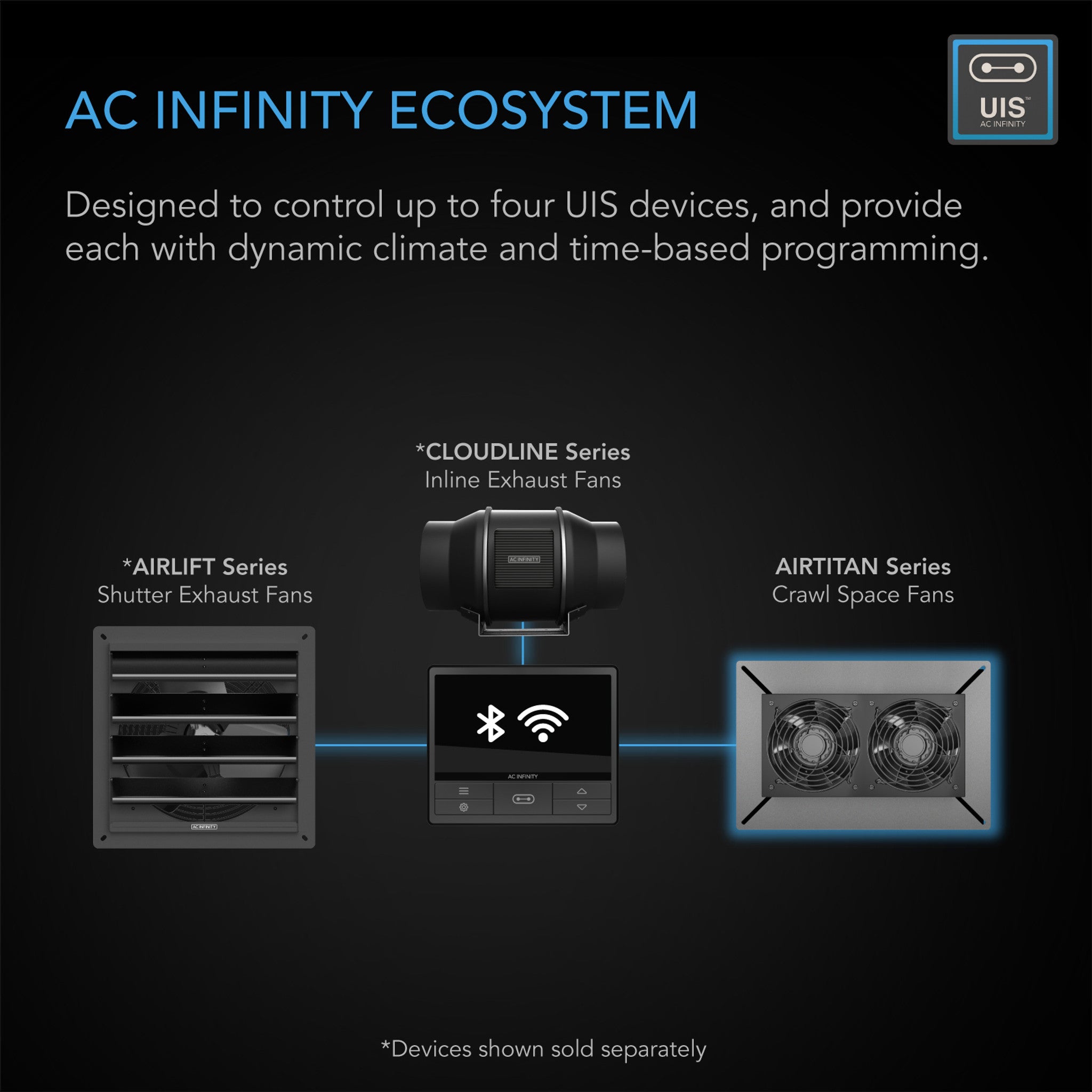

• Compatible with UIS controllers for integrated home ventilation management
Applications

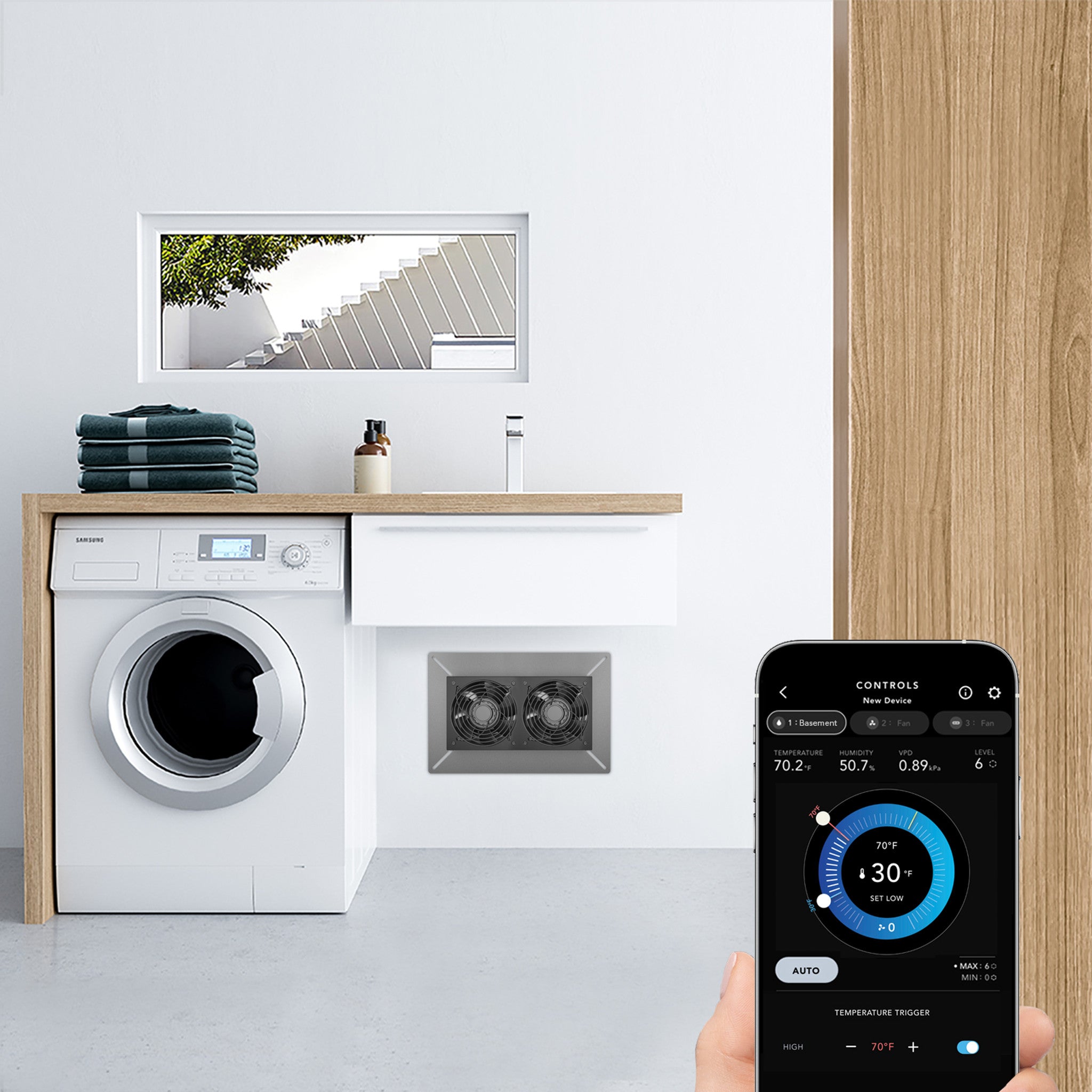

• Crawlspaces and basements
• Attics, garages, and utility rooms
• Removing humidity, stale air, and odors
• Improving home ventilation and air quality
• Automated climate control setups using UIS smart devices

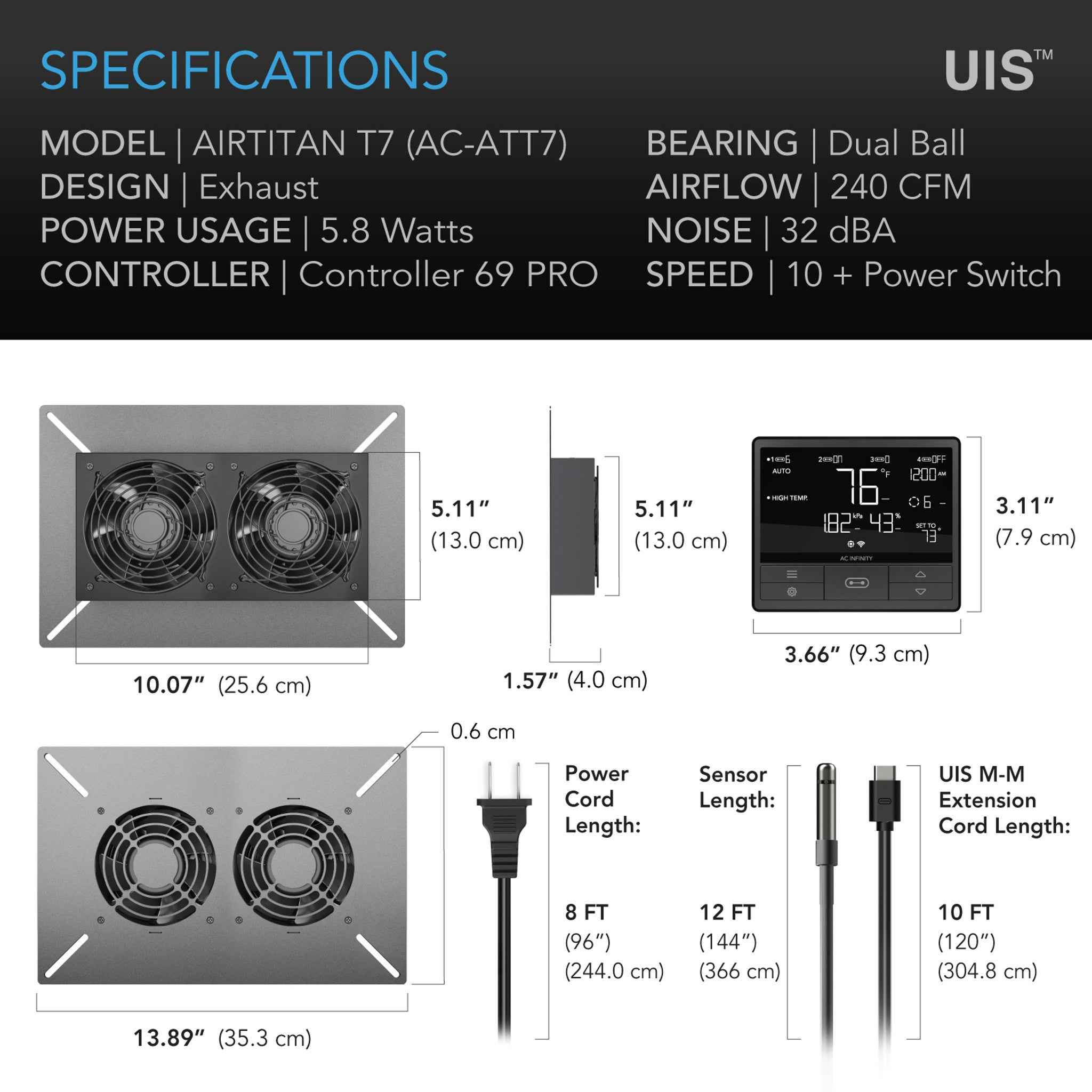

Product specifications
| Specification |
Details |
| Manufacturer |
AC Infinity Inc. |
| Product Name |
AIRTITAN T7 |
| Product Model |
AC-ATT7 |
| UPC Code |
819137020474 |
| Fan Unit Dimensions |
13.89 x 9.00 x 1.57 in (35.3 x 22.8 x 4.0 cm) |
| Backside Enclosure Dimensions |
10.04 x 5.31 in (25.5 x 13.5 cm) |
| Required Mounting Hole |
10.12 x 5.35 in (25.7 x 13.6 cm) |
| Hole to Hole Distance |
4.8 in (12.2 cm) |
| Screw Hole Size |
0.197 in (0.5 cm) |
| Cord Length to Plug |
96 in (8 feet) |
| Controller Dimensions |
5.19 x 2.91 x 1.06 in (13.2 x 7.4 x 2.7 cm) |
| Controller Hole to Hole Distance |
4.71 x 2.64 in (12.0 x 6.7 cm) |
| Controller Screw Hole Size |
0.119 in (0.3 cm) |
| Display Size |
3.5 x 1.4 in (9 x 3.5 cm) |
| Cord Length to Controller |
120 in (10 feet) |
| Sensor Probe Length |
144 in (12 feet) |
| Total Airflow |
240 CFM |
| Total Noise |
32 dBA |
| Static Pressure |
5.46 mm-H2O |
| Operating Voltage |
12V DC |
| Power |
5.8 W |
| Current |
0.6 A |
| Wall Adapter Input |
100–240V AC |
| Operating Humidity |
35–85% RH |
| Operating Temperature |
32–140°F |
| Fan Bearings |
Dual Ball |
| Mounting Positions |
Horizontal or Vertical |
| Life Expectancy |
67,000 hours |
| CE & RoHS Certified |
Yes |
What’s included
• AIRTITAN T7 fan unit (dual-fan design)
• Temperature and humidity smart controller
• Sensor probe
• Power cords
• Mounting hardware
• Installation manual
