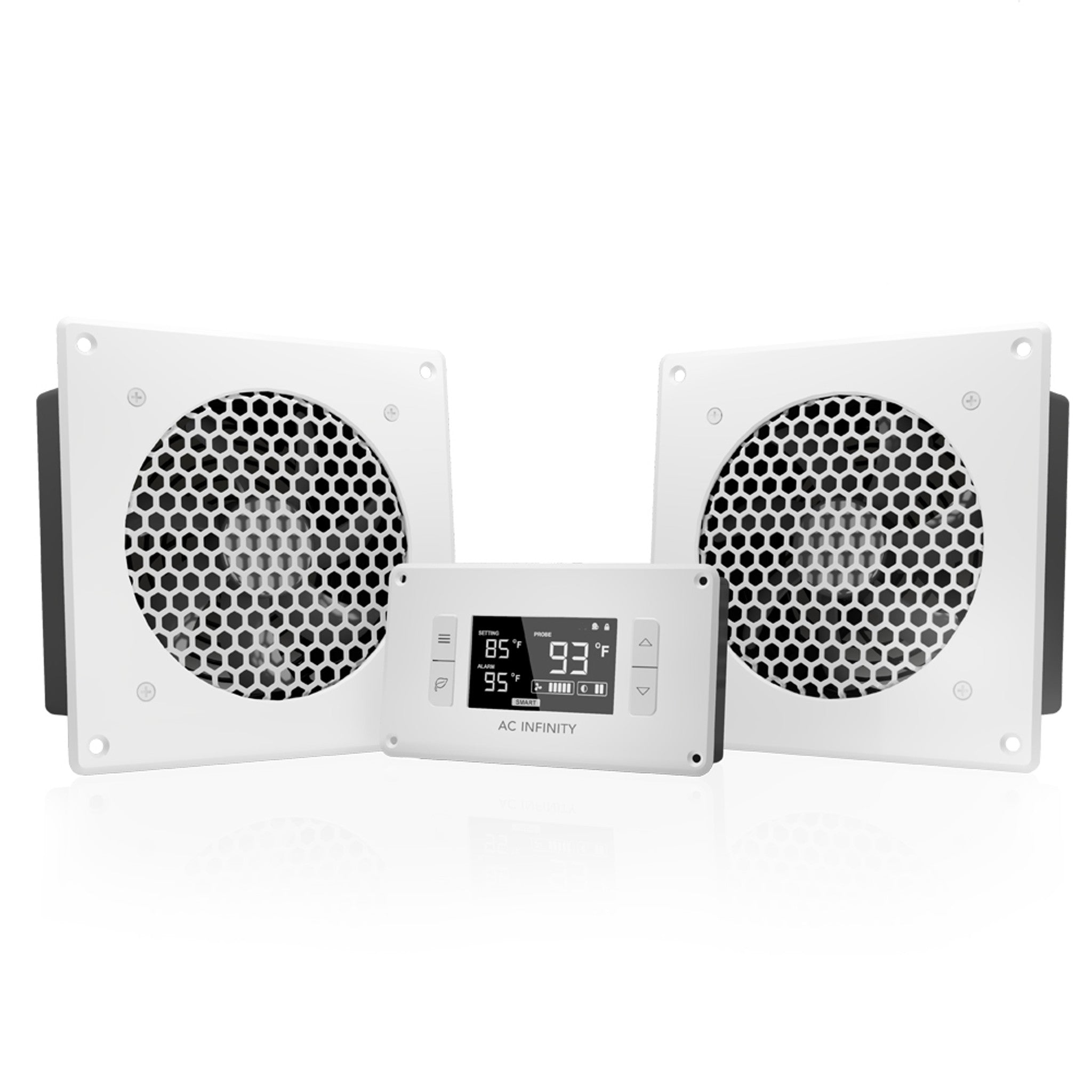

This ultra-quiet cabinet cooling system is engineered to provide reliable airflow while maintaining minimal noise in home theater and AV setups. Its dual 6-inch fans operate with intelligent temperature control that automatically adjusts speed as temperatures change.
The CNC-machined aluminum frame features a modern matte-white finish designed to blend cleanly with contemporary interiors. Built with dual ball bearings rated for long service life, the fan units can be mounted in any orientation. This system includes a precision thermal controller, durable probe, and all necessary hardware for easy installation.
Key features
• Ultra-quiet dual-fan system designed for cabinets and AV enclosures

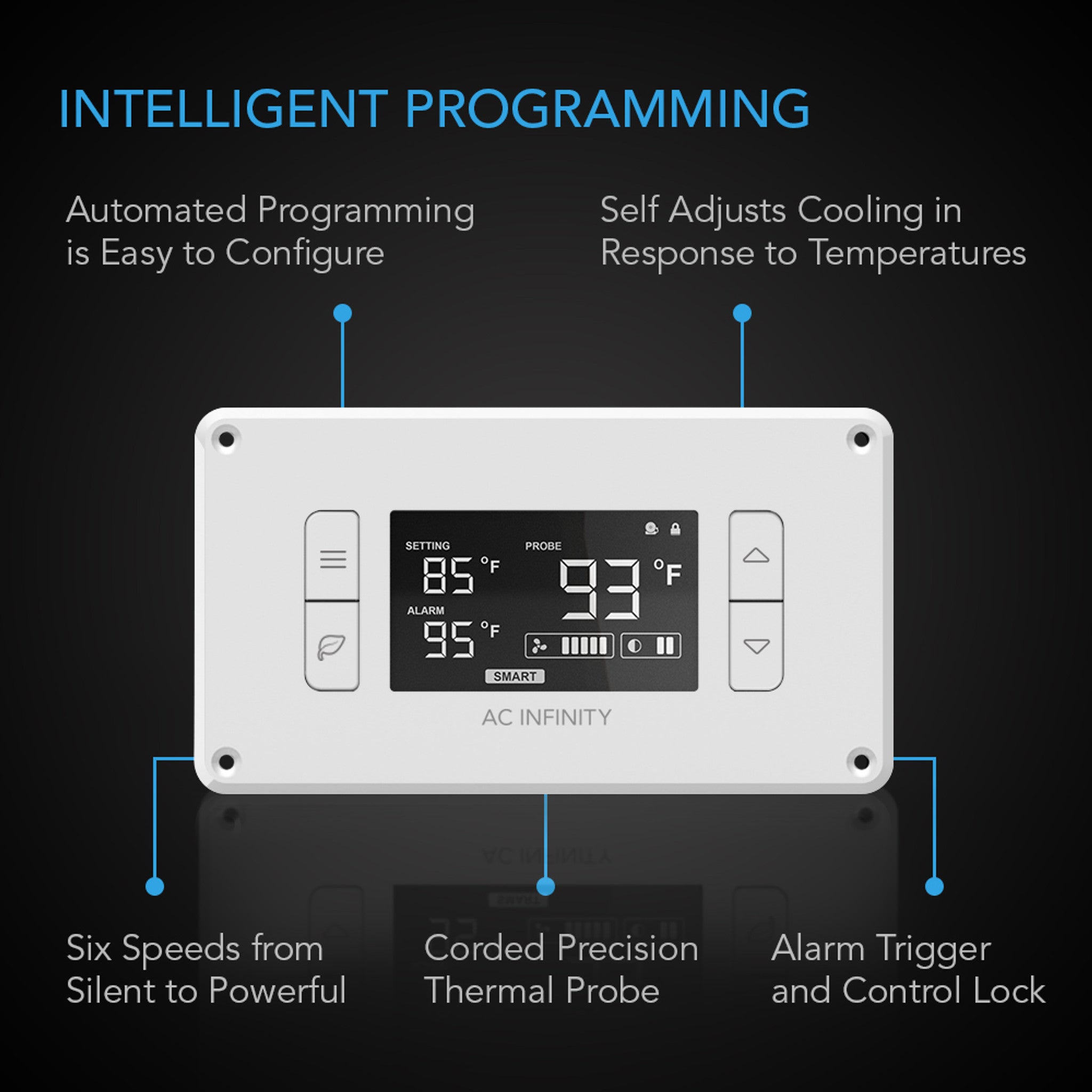

• Intelligent thermal controller automatically adjusts fan speeds
• CNC machined aluminum frame with matte-white finish
• Six fan speeds, display lock, alarm system, and backlight options

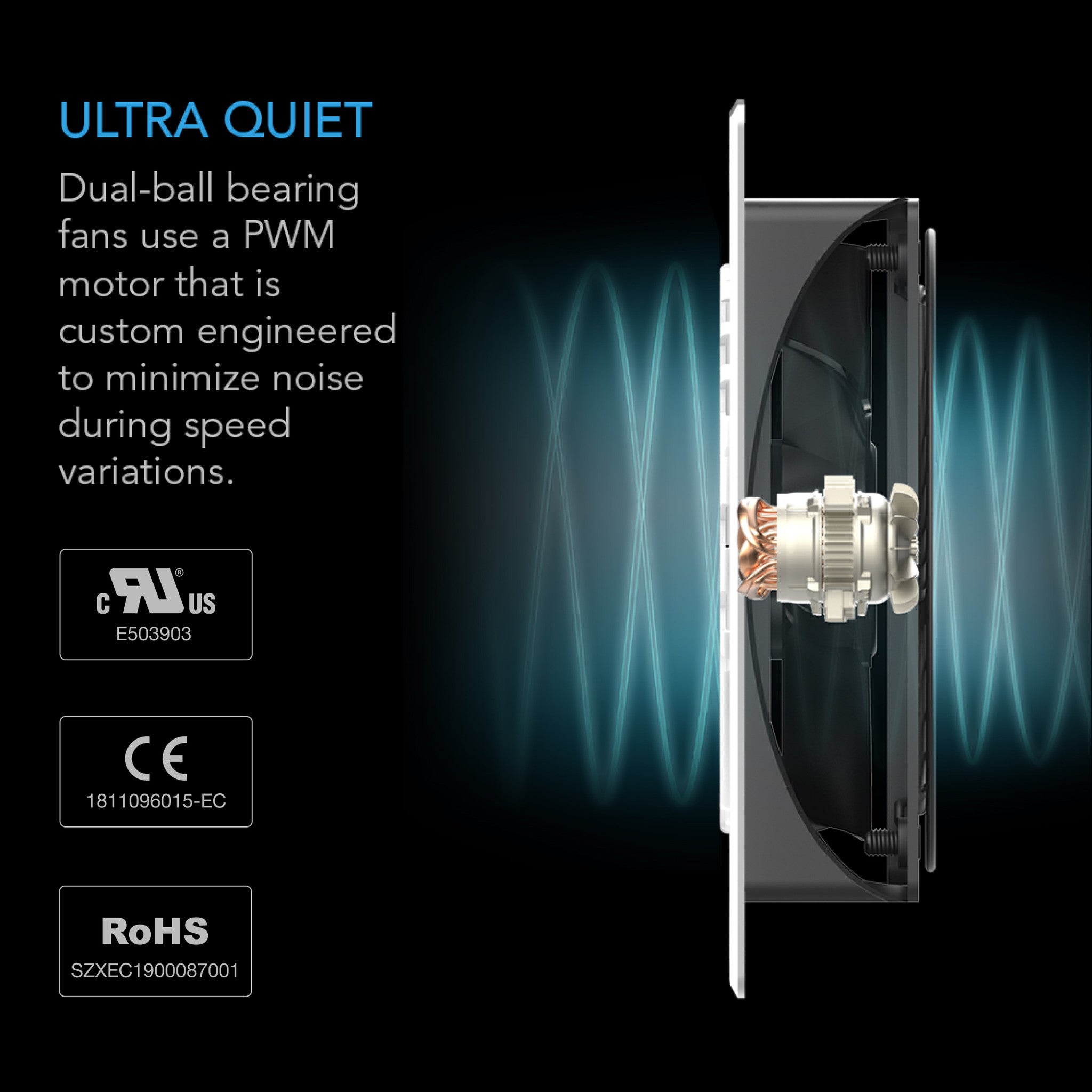

• Long-life dual ball bearings allow flexible mounting positions
• CE, RoHS, and UL compliant for safety and quality
Applications

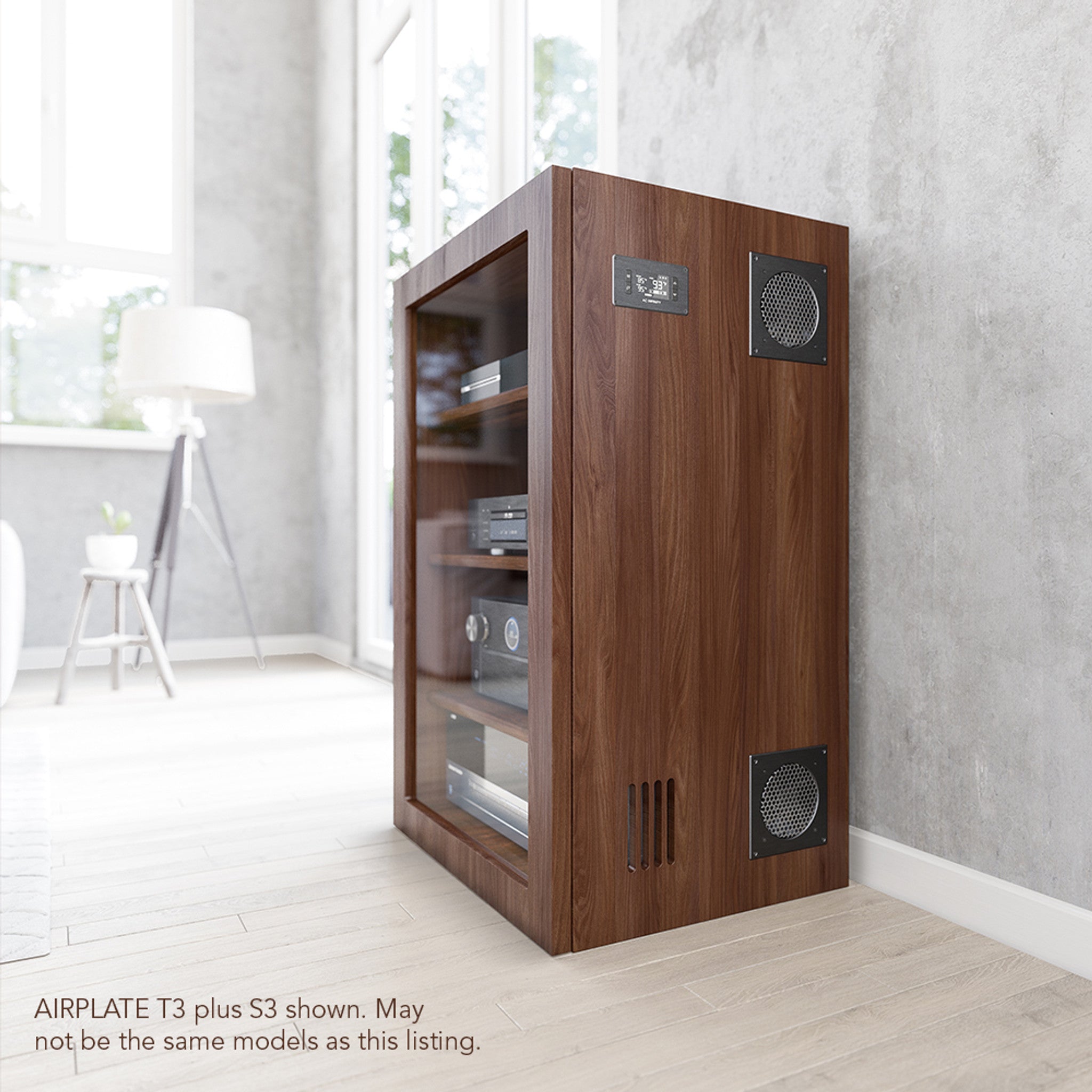

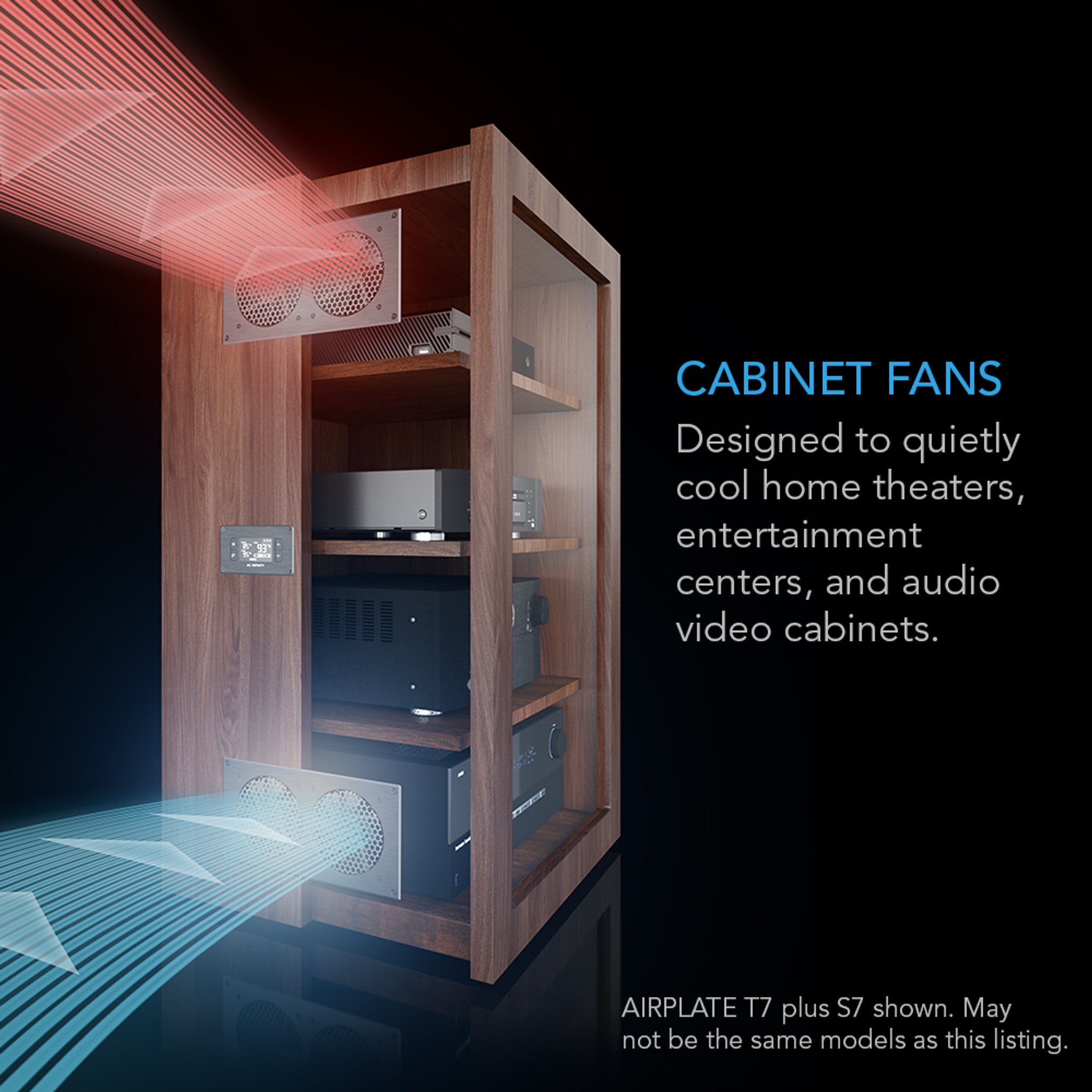

• Home theater equipment cooling
• Entertainment center airflow management
• Audio video cabinet ventilation
• Small enclosures housing amplifiers, receivers, and computers
• AV racks requiring quiet and reliable heat dissipation
Product specifications
| Specification |
Details |
| Manufacturer |
AC Infinity Inc. |
| Product Name |
AIRPLATE T8 White |
| Product Model |
AI-APT8-W |
| UPC Code |
819137020504 |

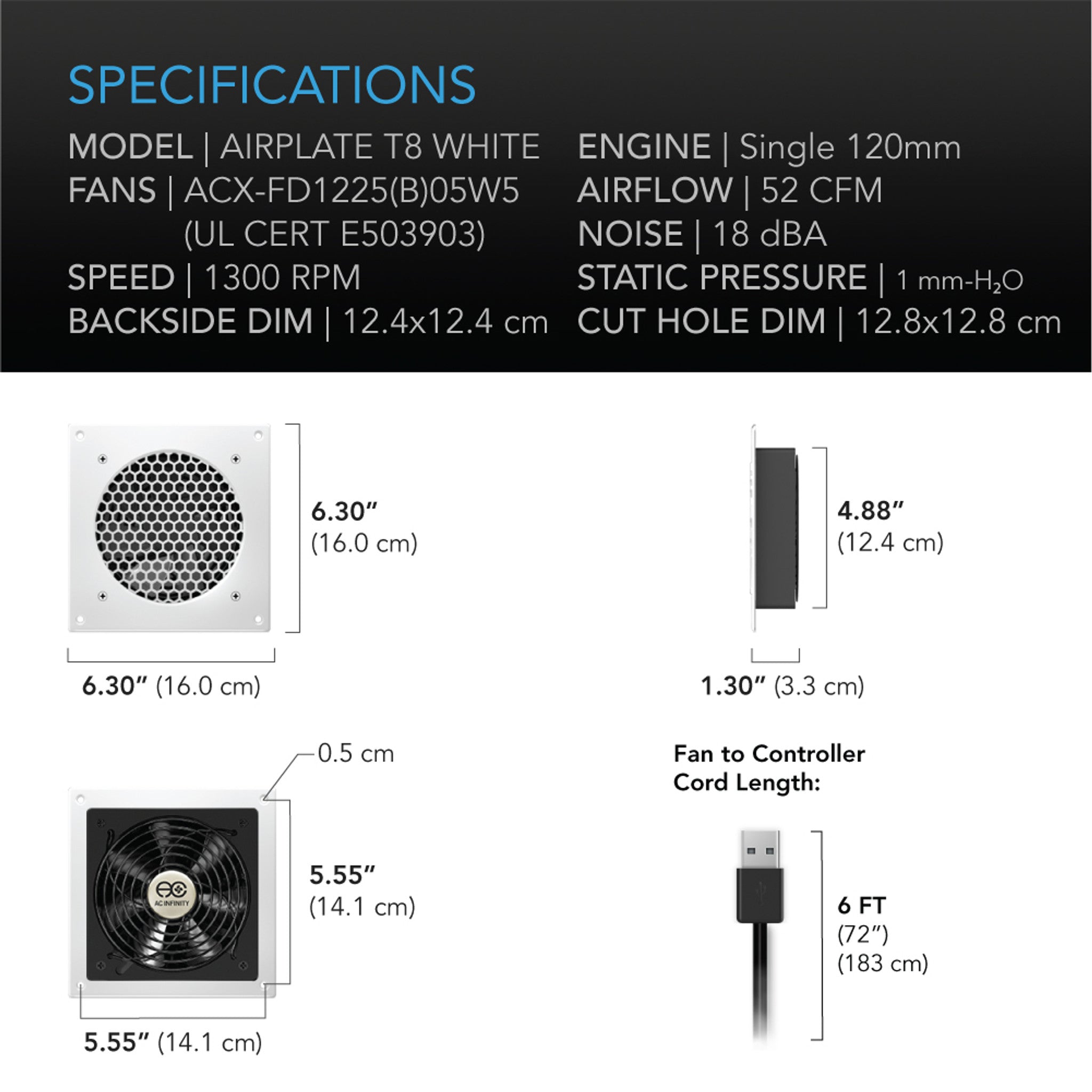

| Fan Unit Dimensions |
6.30 x 6.30 x 1.30 in (16.0 x 16.0 x 3.3 cm) |
| Fan Backside Enclosure |
4.88 x 4.88 in (12.4 x 12.4 cm) |
| Required Mounting Hole (Fan) |
5.04 x 5.04 in (12.8 x 12.8 cm) |
| Hole to Hole Distance (Fan) |
5.55 x 5.55 in (14.1 x 14.1 cm) |
| Screw Hole Size (Fan) |
0.197 in (0.5 cm) |
| Cord Length (Fan) |
72 in (6 feet) |

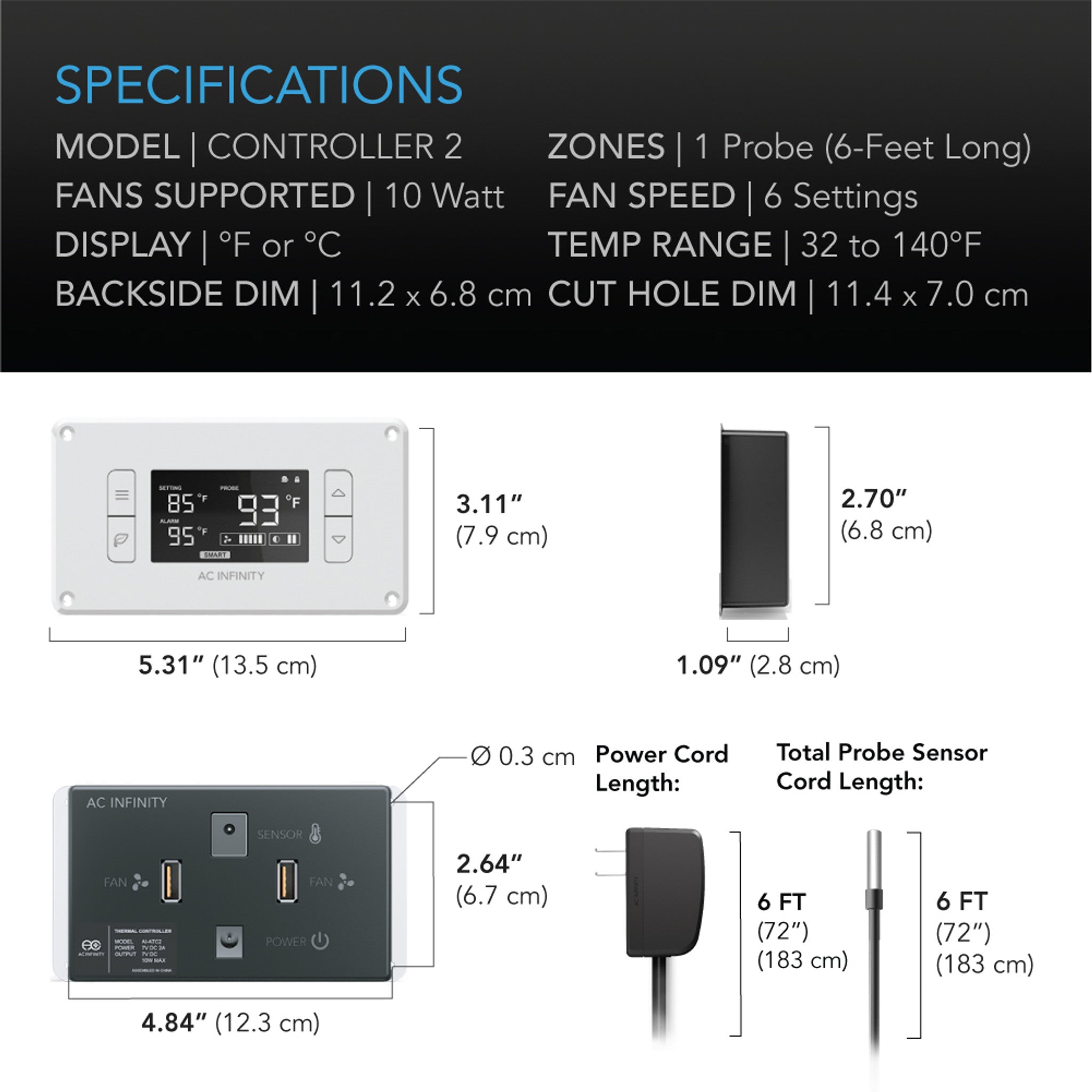

| Controller Dimensions |
5.20 x 3.11 x 1.10 in (13.2 x 7.9 x 2.8 cm) |
| Controller Backside Enclosure |
4.41 x 2.68 in (11.2 x 6.8 cm) |
| Required Mounting Hole (Controller) |
4.48 x 2.76 in (11.4 x 7.0 cm) |
| Hole to Hole Distance (Controller) |
4.71 x 2.64 in (12.0 x 6.7 cm) |
| Controller Screw Hole Size |
0.119 in (0.3 cm) |
| Display Size |
2.25 x 1.25 in (4.7 x 3.2 cm) |
| Controller Cord Length |
72 in (6 feet) |
| Thermal Probe Length |
72 in (6 feet) |
| Number of Fans |
2 |
| Color |
Matte White |
| Total Noise |
19 dBA |
| Static Pressure |
1 mm-H2O |
| Operating Voltage |
3 to 7V DC |
| Power |
3.3 W |
| Current |
0.66 A |
| Wall Adapter Input |
100 to 240V AC |
| Operating Humidity |
35 to 85% RH |
| Operating Temperature |
0 to 158°F |
| Fan Bearings |
Dual Ball |
| Mounting Positions |
Horizontal or Vertical |
| L10 Life Expectancy |
67,000 hours |
| Fan Quality Approvals |
UL, CE, RoHS |
What’s included
• Two AIRPLATE T8 White fan units

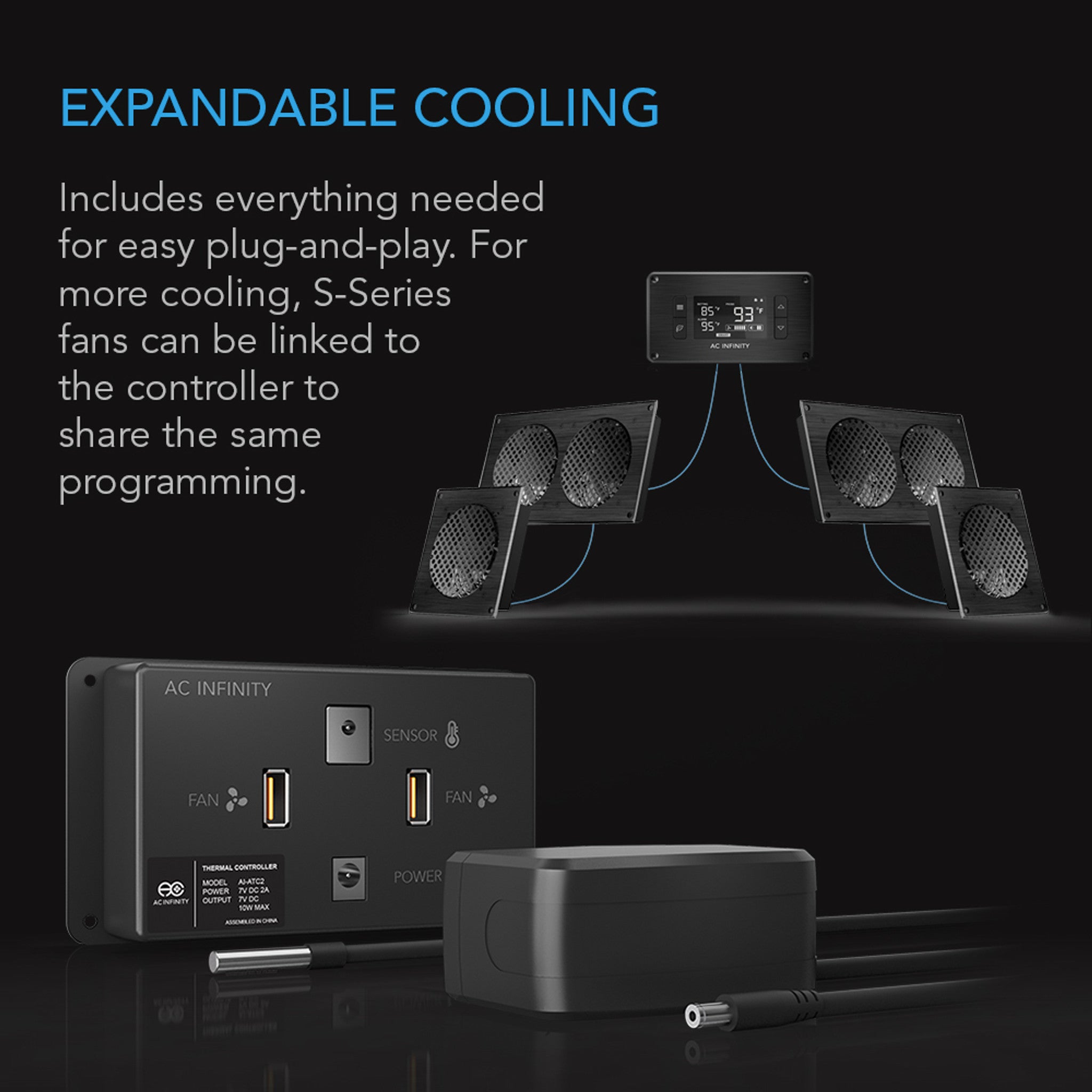

• Thermal controller
• Detachable 6-foot thermal probe
• Power adapter
• Mounting hardware
• Installation manual
