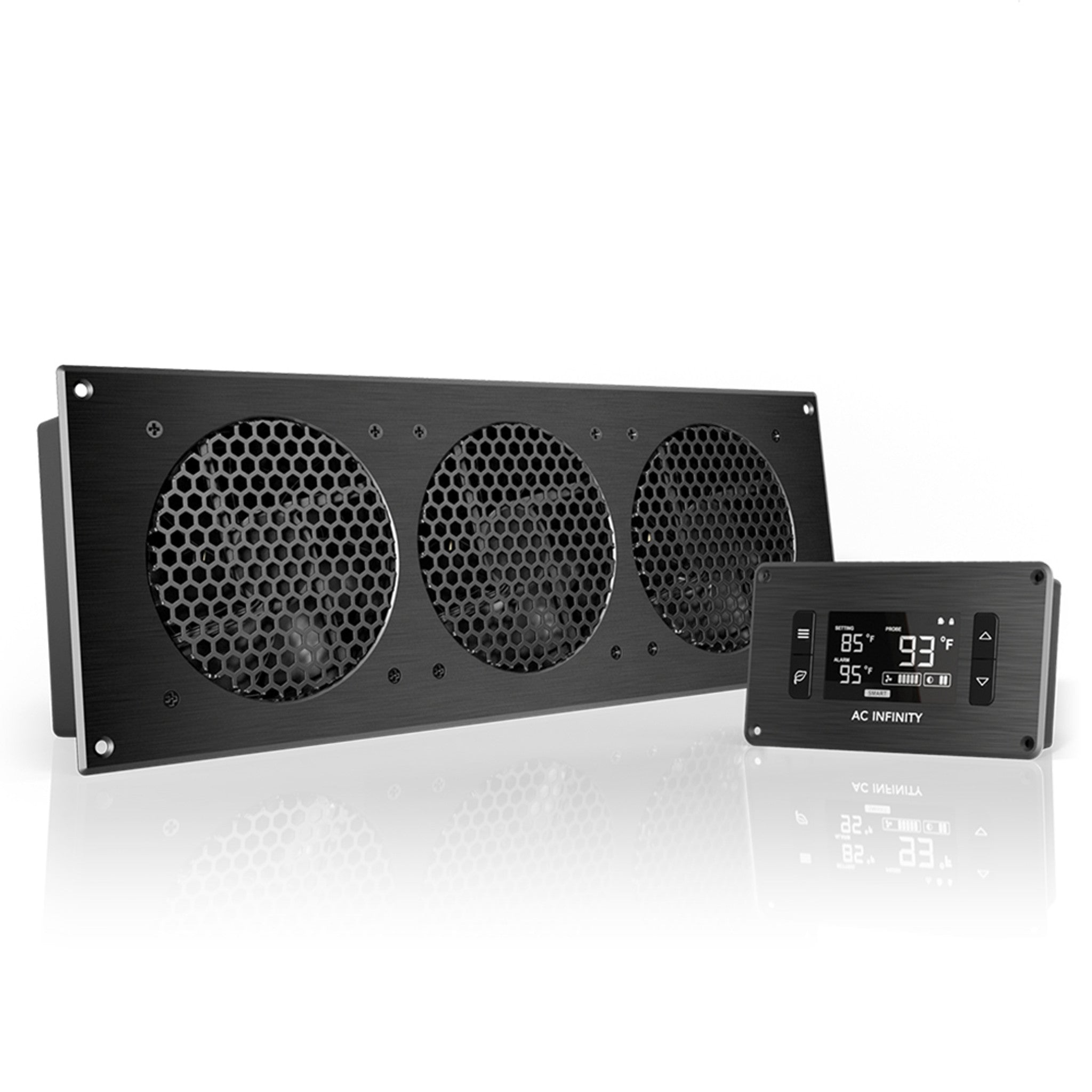

This ultra-quiet 18-inch cooling system is engineered to keep AV cabinets, home theaters, and entertainment centers running at safe temperatures with minimal noise. Its automated thermal controller continually adjusts fan speeds to match changing heat levels, ensuring efficient cooling without manual intervention.
The CNC machined aluminum frames on both the fan unit and controller provide durability and a clean brushed black finish that blends with modern equipment. Dual ball bearings offer long service life and allow mounting in any orientation. This system includes all necessary hardware plus a precision thermal probe for accurate temperature monitoring.
Key features
• Ultra-quiet cooling fan system for cabinets and AV enclosures
• Intelligent thermal controller automatically adjusts fan speed
• CNC machined aluminum frames with a modern brushed black finish

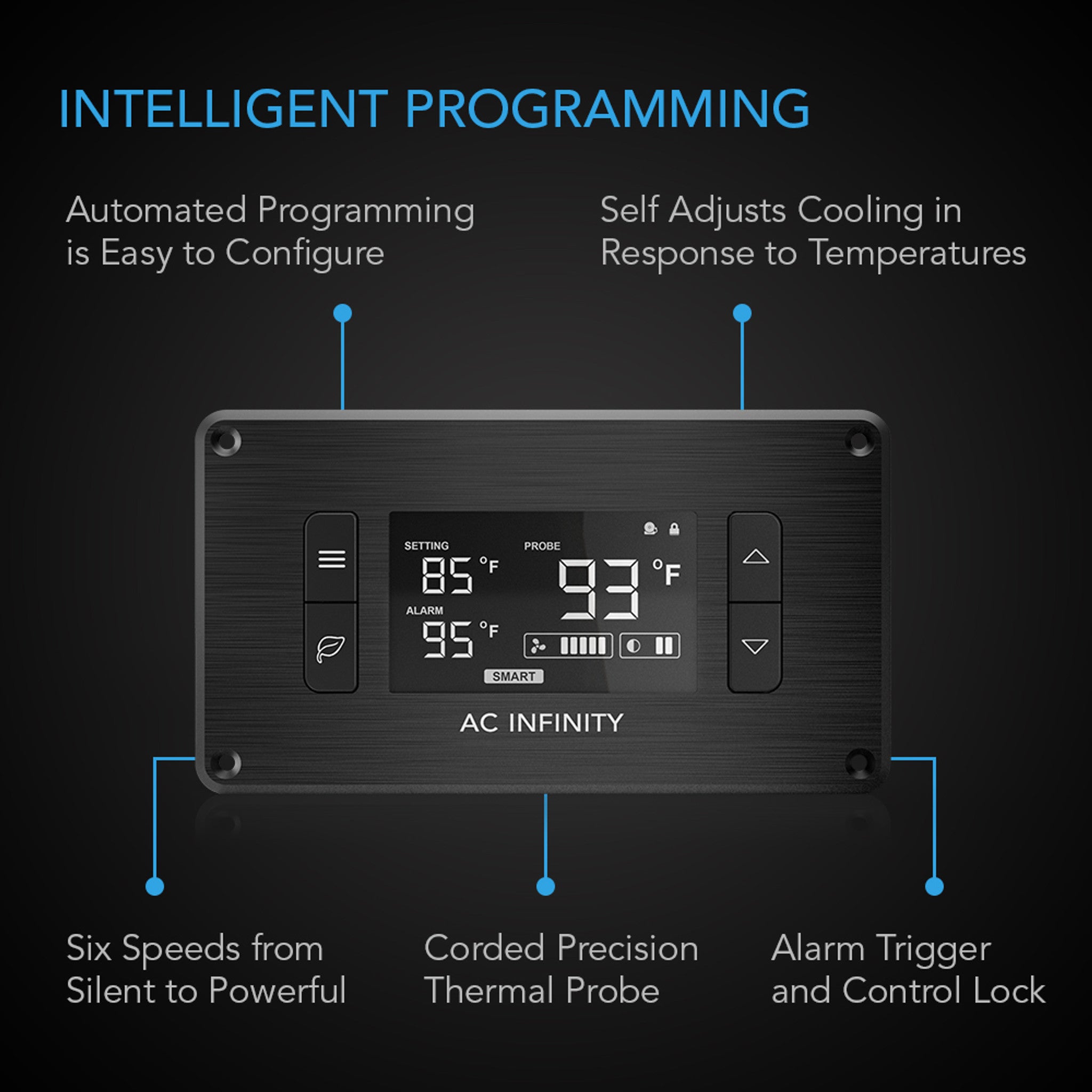

• Six fan speeds, display lock, alarm system, and memory settings

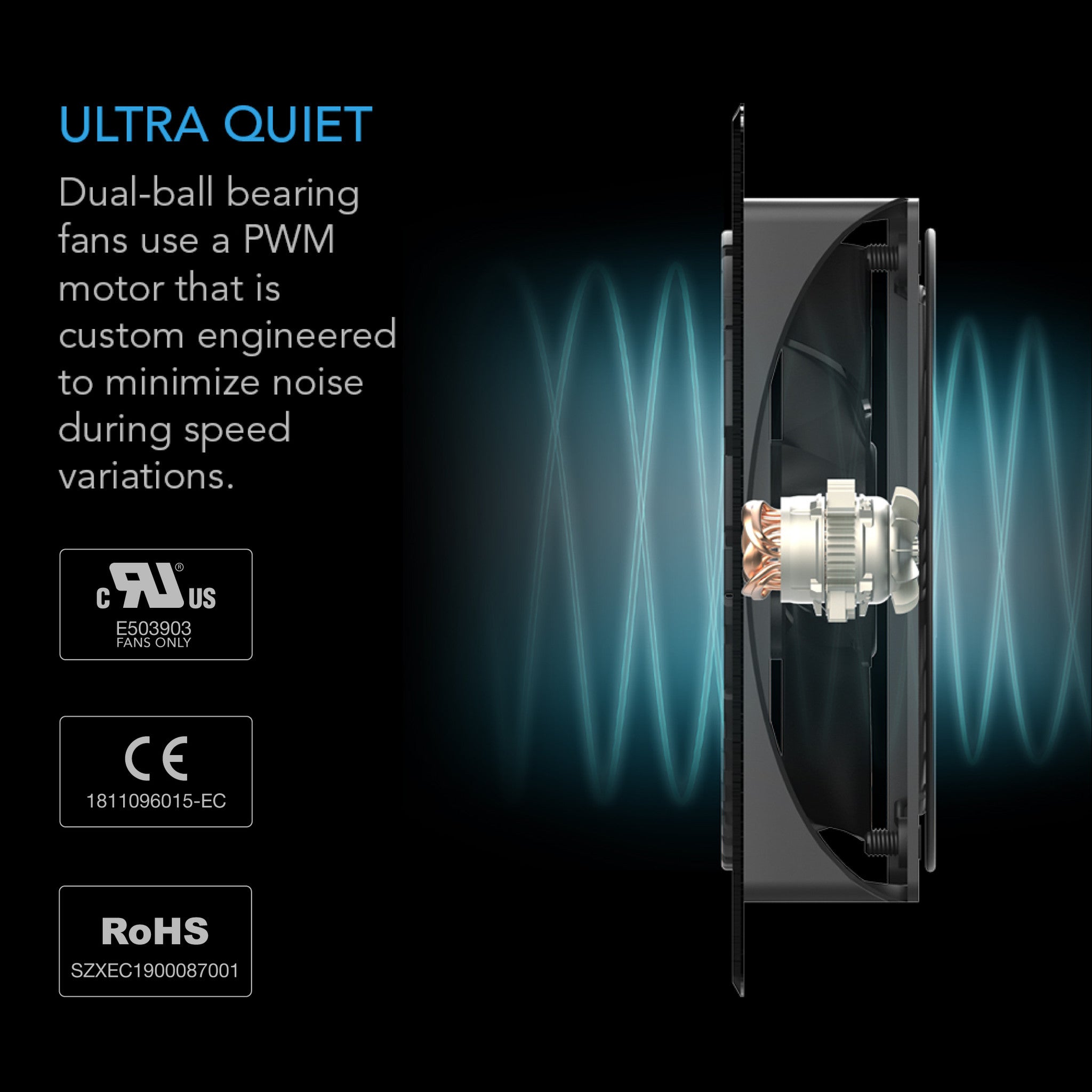

• Long-life dual ball bearings for flexible mounting positions
• UL, CE, and RoHS certified for safety and reliability
Applications

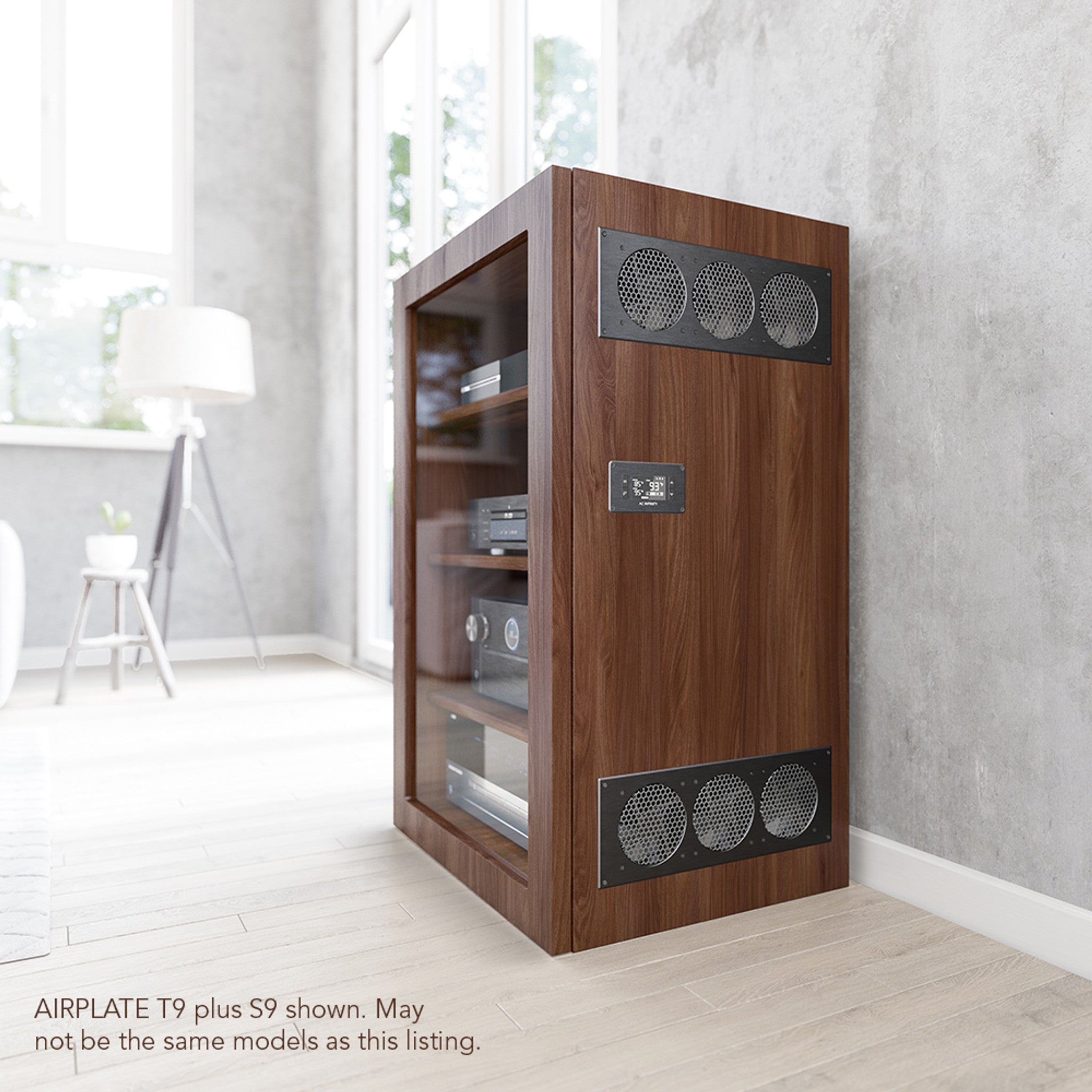

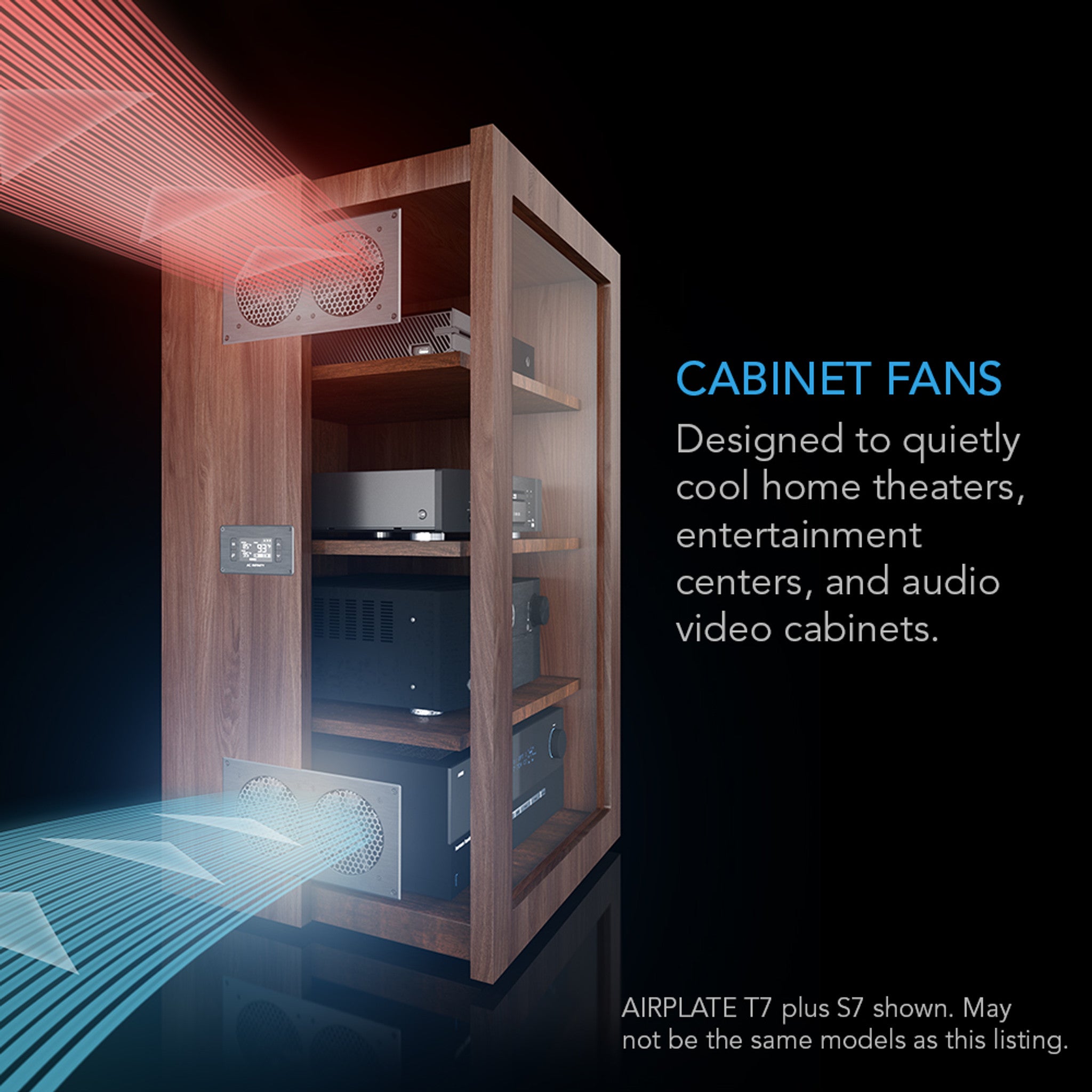

• Home theater cabinet cooling
• Entertainment center ventilation
• Audio and video cabinet airflow management
• AV racks holding receivers, amplifiers, and computer equipment
• Any enclosure requiring quiet and controlled thermal management
Product specifications
| Specification |
Details |
| Manufacturer |
AC Infinity Inc. |
| Product Name |
AIRPLATE T9 |
| Product Model |
AI-APT9 |
| UPC Code |
854759004396 |

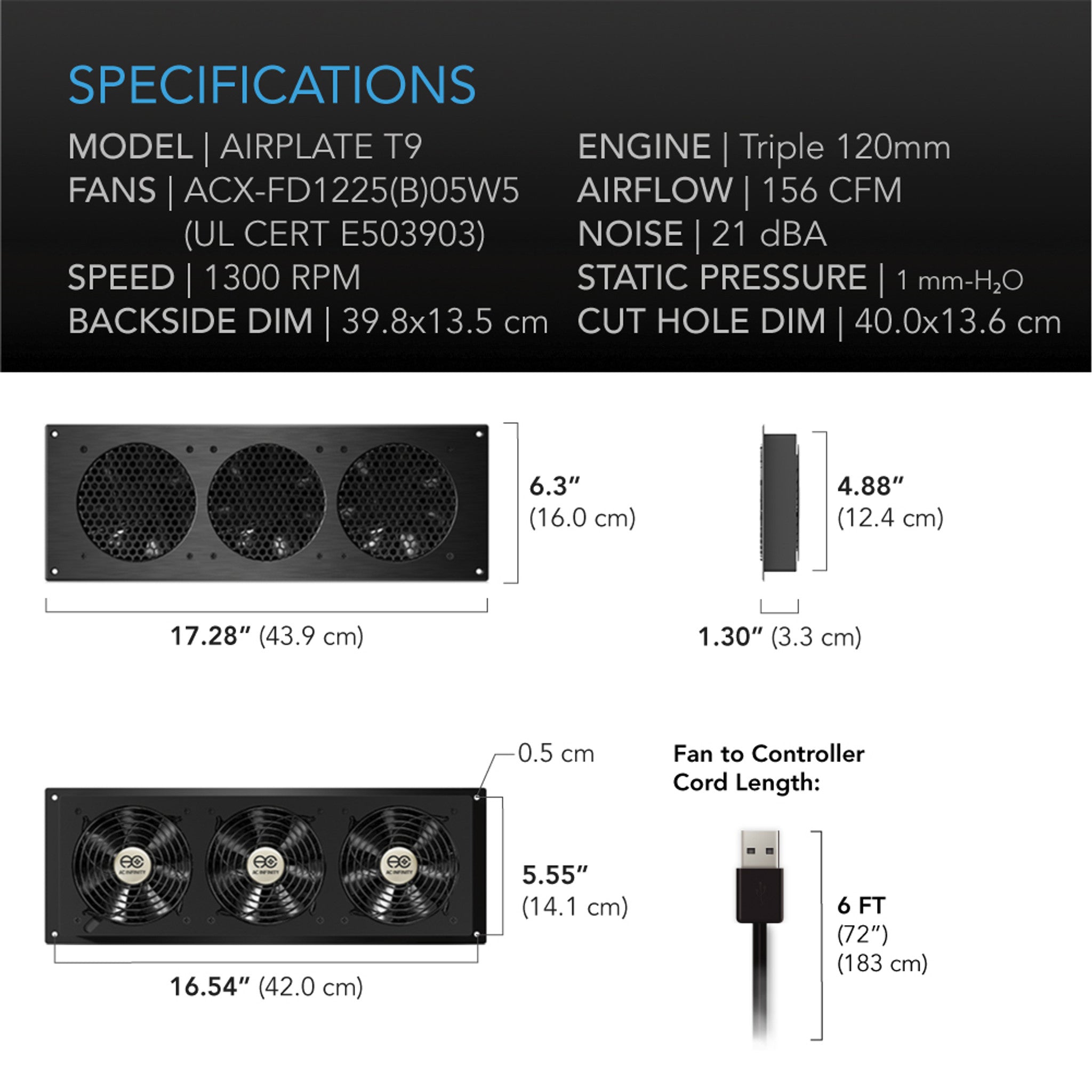

| Fan Unit Dimensions |
17.50 x 6.10 x 1.30 in (43.9 x 15.5 x 3.3 cm) |
| Backside Enclosure Dimensions |
15.67 x 5.31 in (39.8 x 13.5 cm) |
| Required Mounting Hole |
15.75 x 5.35 in (40.0 x 13.6 cm) |
| Hole to Hole Distance |
16.54 x 5.25 in (42.0 x 13.6 cm) |
| Screw Hole Size |
0.197 in (0.5 cm) |
| Fan Unit Cord Length |
72 in (6 feet) |

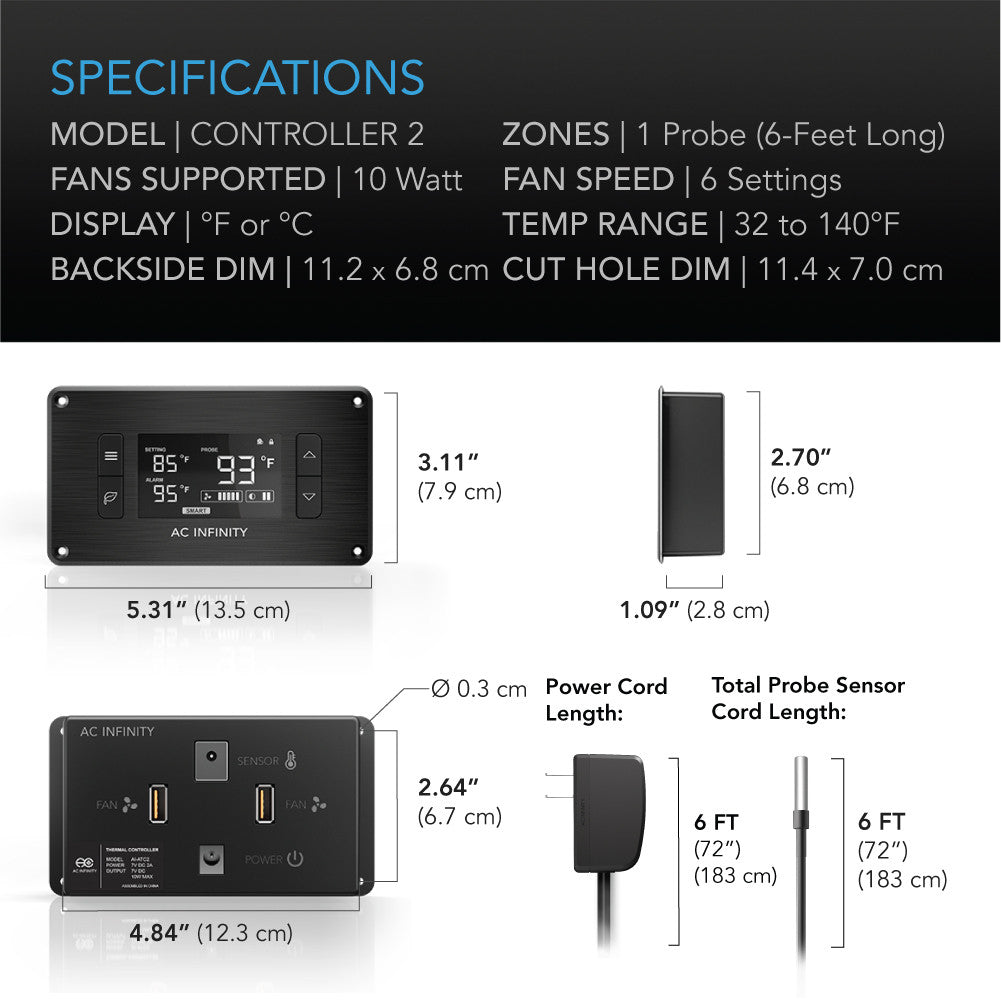

| Controller Dimensions |
5.20 x 3.11 x 1.10 in (13.2 x 7.9 x 2.8 cm) |
| Controller Backside Enclosure |
4.41 x 2.68 in (11.2 x 6.8 cm) |
| Controller Required Mounting Hole |
4.48 x 2.76 in (11.4 x 7.0 cm) |
| Controller Hole to Hole Distance |
4.71 x 2.64 in (12.0 x 6.7 cm) |
| Controller Screw Hole Size |
0.119 in (0.3 cm) |
| Display Size |
2.25 x 1.25 in (4.7 x 3.2 cm) |
| Controller Cord Length |
72 in (6 feet) |
| Thermal Probe Length |
72 in (6 feet) |
| Total Airflow |
156 CFM |
| Total Noise |
21 dBA |
| Static Pressure |
1 mm-H2O |
| Operating Voltage |
3 to 7V DC |
| Power |
3.6 W |
| Current |
0.72 A |
| Wall Adapter Input |
100 to 240V AC |
| Operating Humidity |
35 to 85% RH |
| Operating Temperature |
0 to 158°F |
| Fan Bearings |
Dual Ball |
| Mounting Positions |
Horizontal or Vertical |
| L10 Life Expectancy |
67,000 hours |
| Fan Quality Approvals |
UL, CE, RoHS |

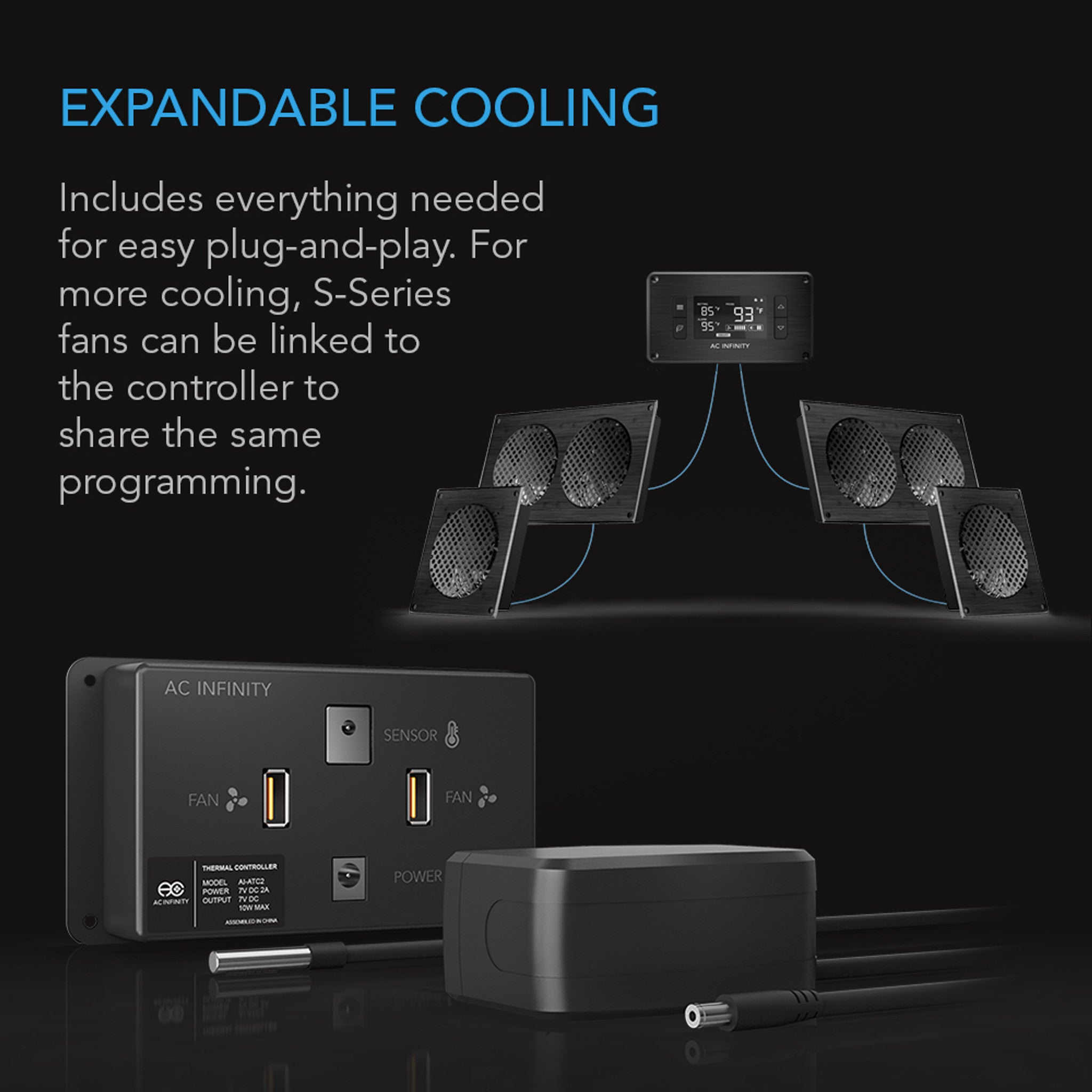

What’s included
• AIRPLATE T9 fan unit
• Thermal controller
• Detachable 6-foot thermal probe
• Power adapter
• Mounting hardware
• Installation manual
