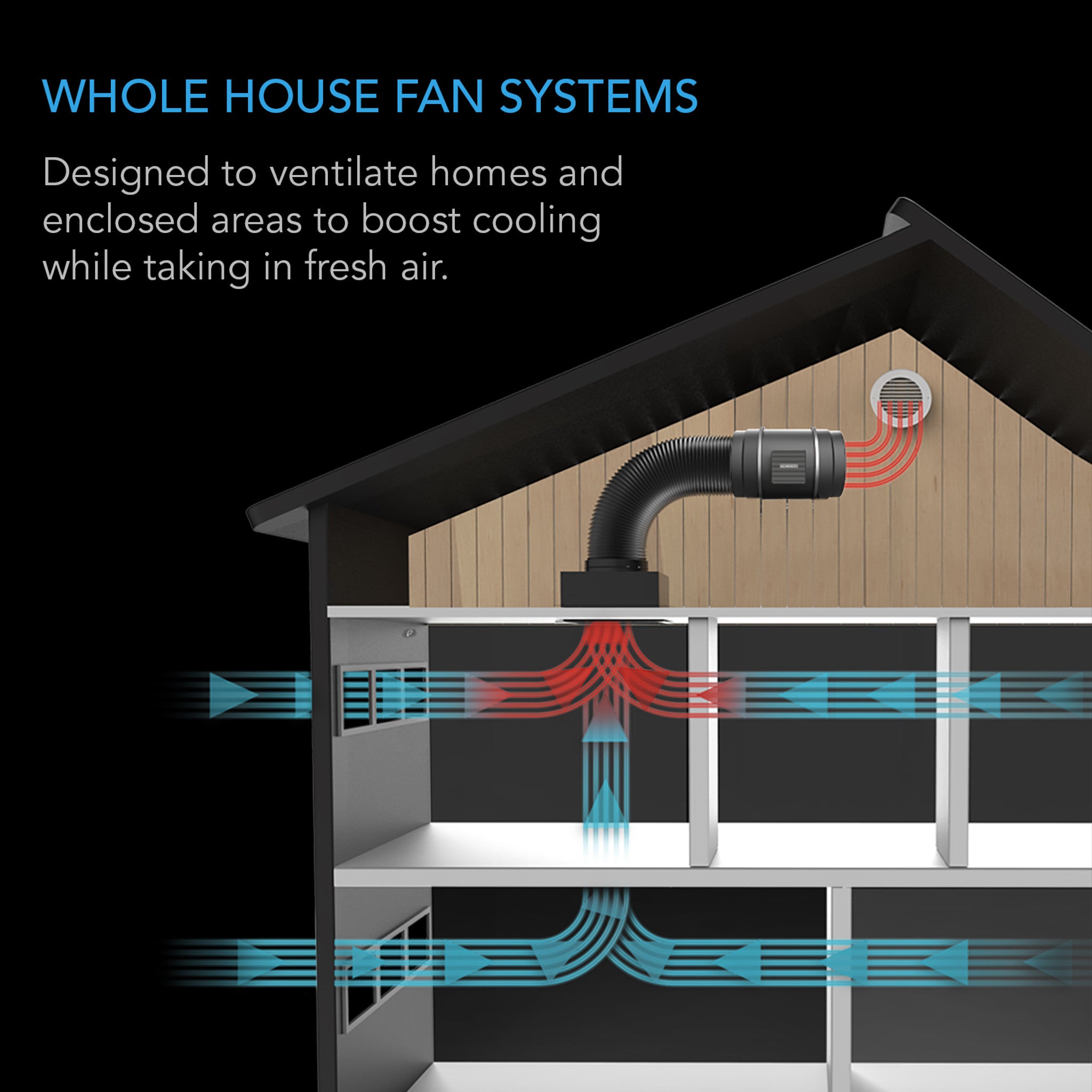

This 10-inch whole house fan is engineered to cool and ventilate homes by exhausting hot indoor air and drawing in fresh outdoor air through passive intake. Its wireless 10-speed controller allows you to fine-tune airflow and noise levels from anywhere in your home, with automatic memory to retain previous settings. A quiet, energy-efficient EC motor controlled by PWM delivers powerful airflow while reducing noise and long-term energy usage. The included insulated two-door shutters prevent attic air from entering the living space when the fan is not in use. The full kit includes ducting, clamps, grille, and all hardware for efficient attic installation.
Key features
• Whole house attic fan designed to cool and ventilate entire homes

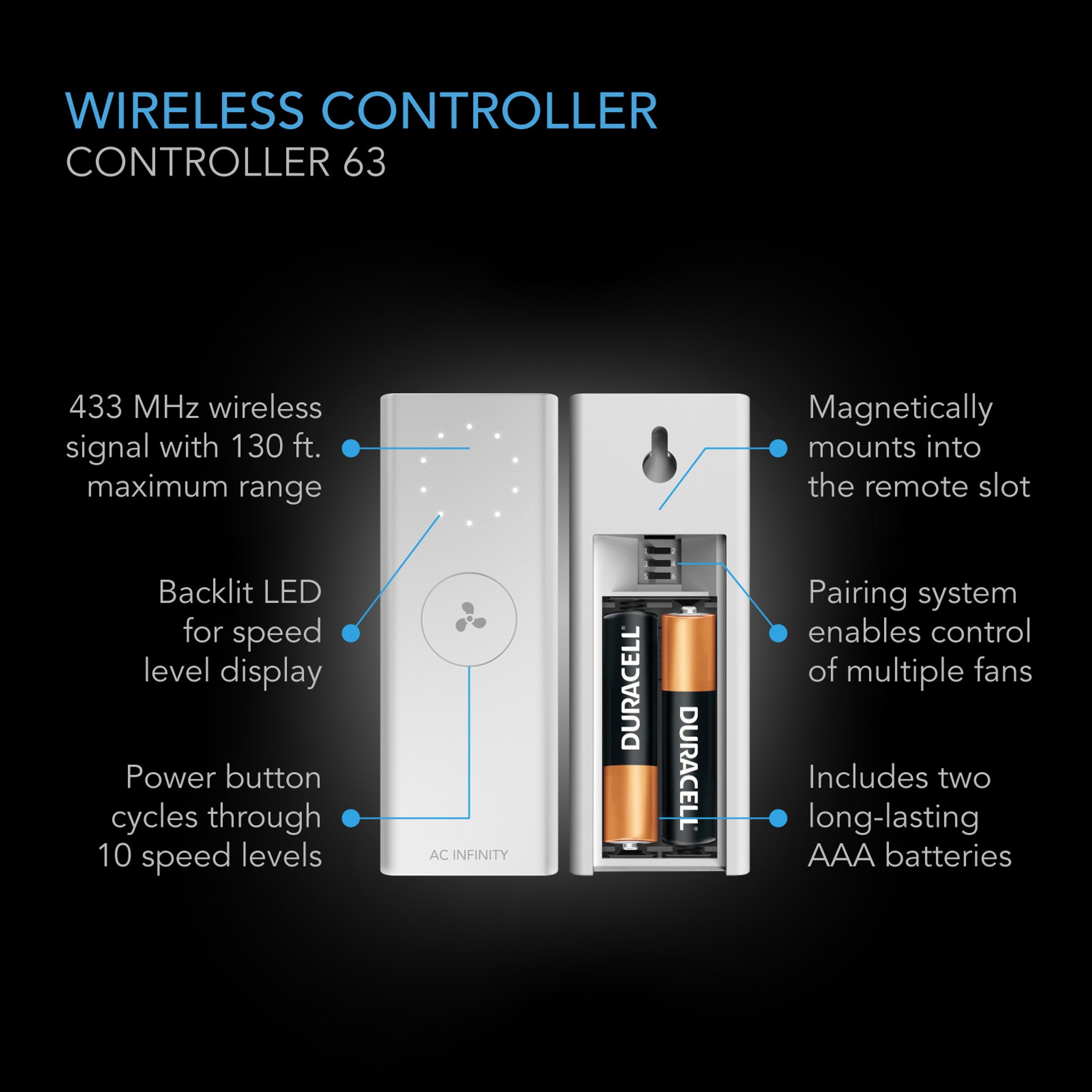

• 10-speed wireless controller with memory for remote airflow adjustments

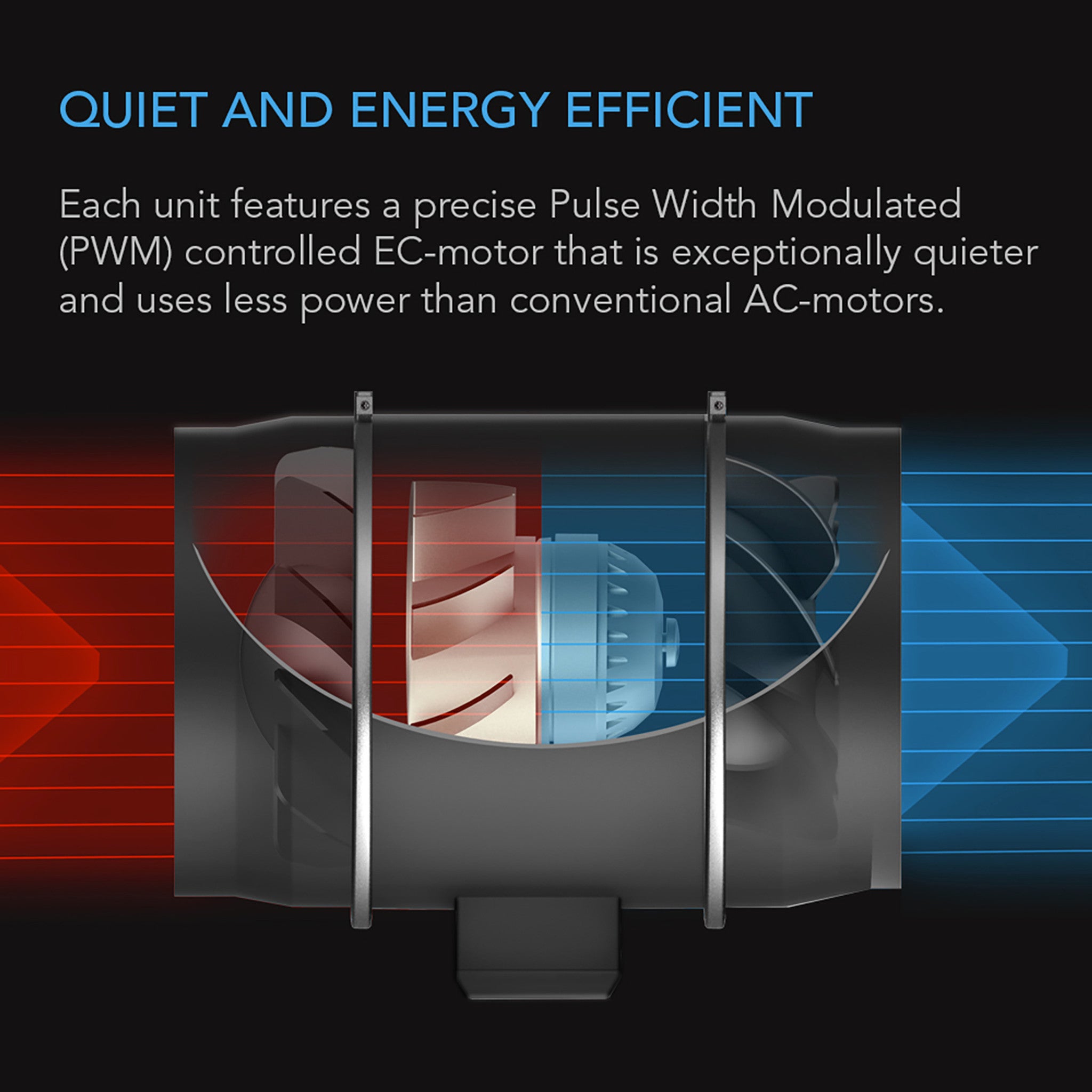

• Energy-efficient PWM EC motor runs quieter and lasts longer than AC motors
• Insulated two-door gravity shutters block attic air when fan is off
• Includes 4-layer ducting, clamps, wall grille, and installation hardware
• Dual ball bearings rated for 67,000 hours with IP-44 dust and moisture resistance
Applications

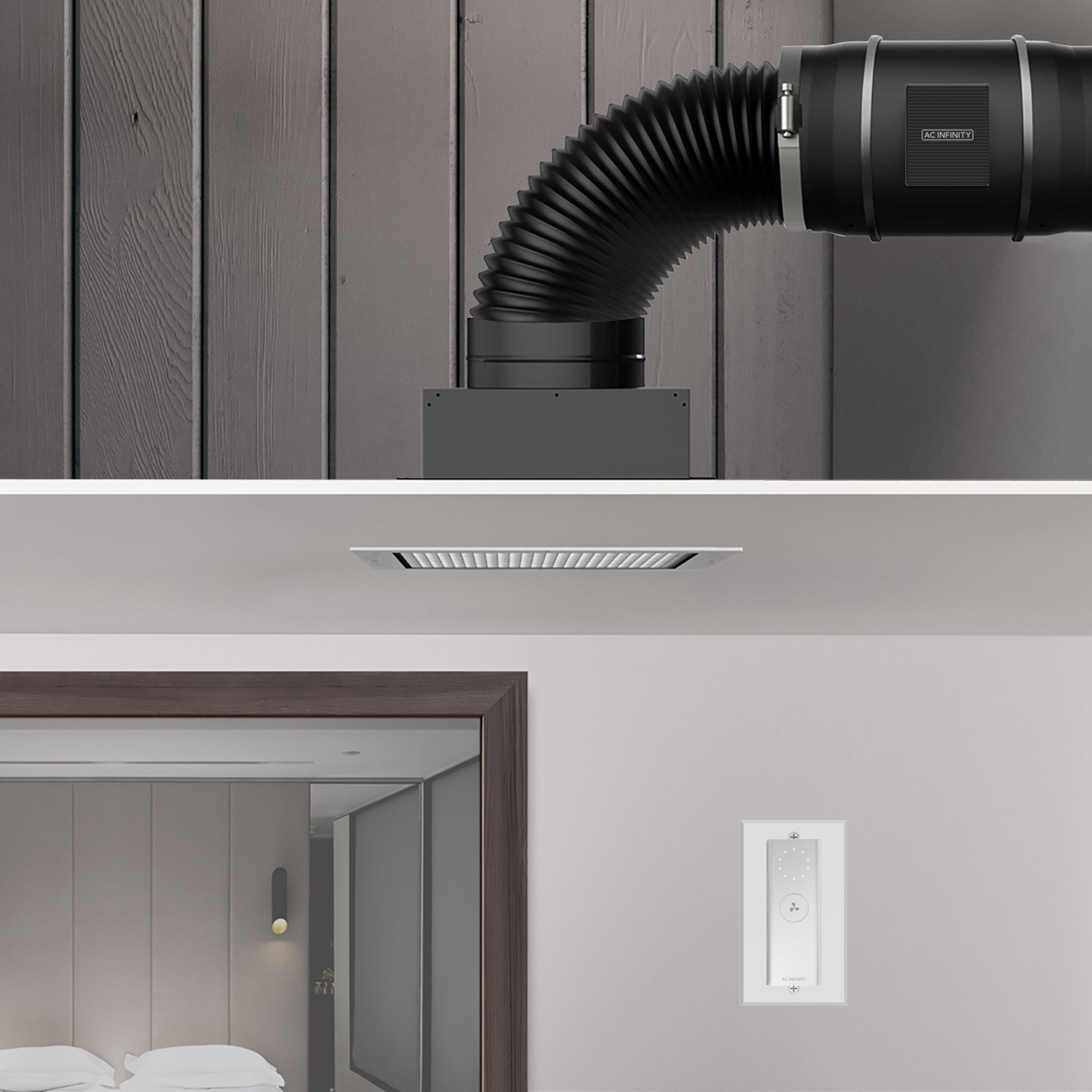

• Whole-home cooling and ventilation through attic installation
• Removing hot, stale indoor air and replacing it with fresh outdoor air
• Energy-efficient cooling alternative to air conditioning
• Homes seeking improved airflow and temperature control during warm months

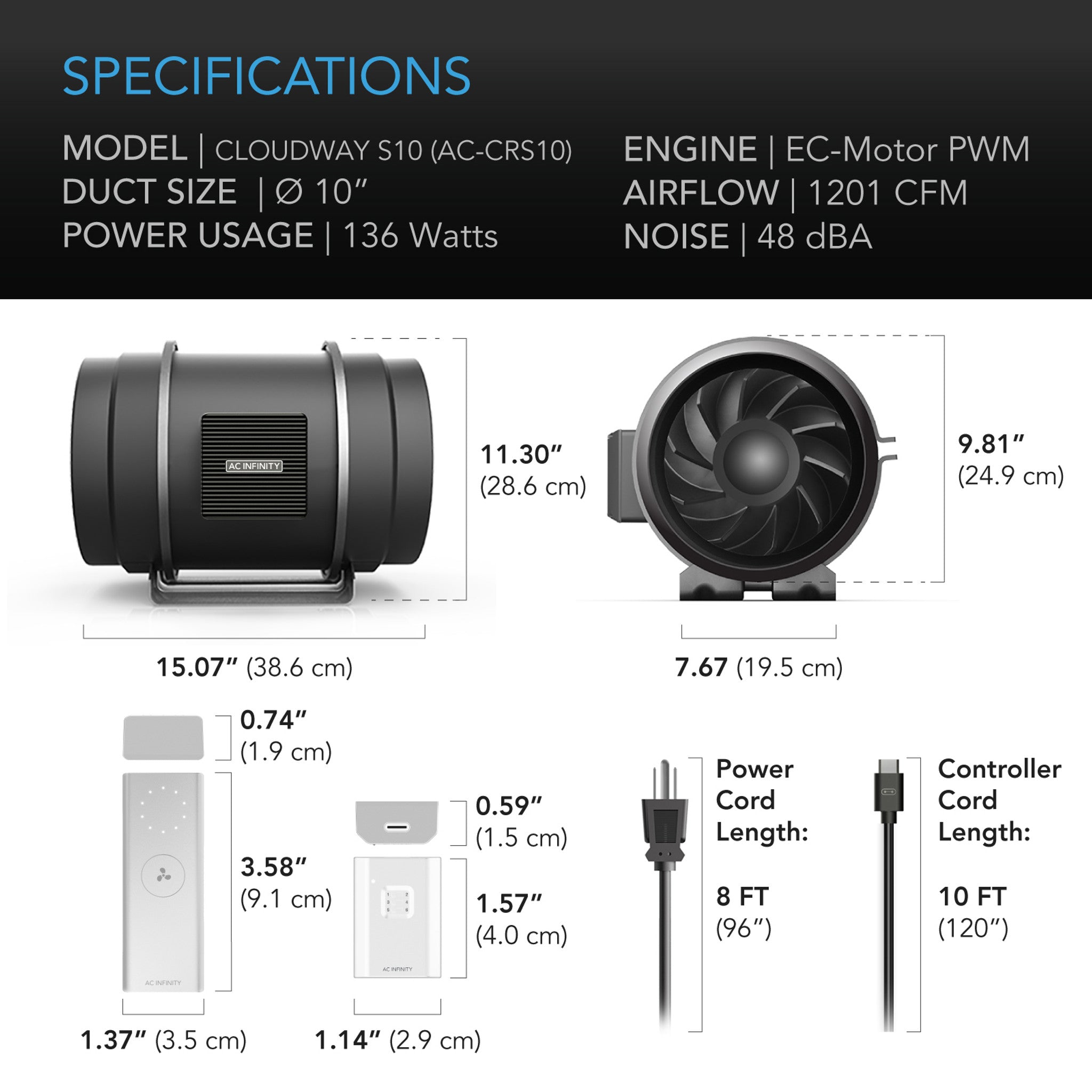

Product specifications
Manufacturer: AC Infinity Inc.
Product Name: CLOUDWAY S10
Product Model: AC-CRS10
UPC Code: 819137023031
Duct Size: 10 in
Duct Tube Length: 6 ft
Fan Unit Dimensions: 9.81 x 15.07 x 11.30 in (24.9 x 38.6 x 28.6 cm)
Mounting Hole-to-Hole Distance: 5.90 x 5.90 in (15.0 x 15.0 cm)
Screw Hole Size: 0.472 in (1.2 cm)
Cord Length to Controller: 240 in (20 feet)
Cord Length to Plug: 96 in (8 feet)
Controller Dimensions: 3.59 x 1.37 x 0.75 in (9.1 x 3.5 x 1.9 cm)
Receiver Dimensions: 1.14 x 1.57 x 0.59 in (2.9 x 4.0 x 1.5 cm)
Mounting Hole Size: 0.25 in (6.5 mm)
Total Airflow: 1201 CFM
Total Noise: 48 dBA
Static Pressure: 352 Pa
Voltage: 100–240V AC
Frequency: 50/60Hz
Max Power Draw: 250 W
Average Power Usage: 136 W
Current: 2.7 A
Power Plug: NEMA 1-15 Type-A
Operating Humidity: 35–85% RH
Operating Temperature: 32–140°F
Ingress Protection: IP44
Fan Bearings: Dual Ball
Mounting Positions: Horizontal or Vertical
Life Expectancy: 67,000 hours
Certifications: CE, RoHS

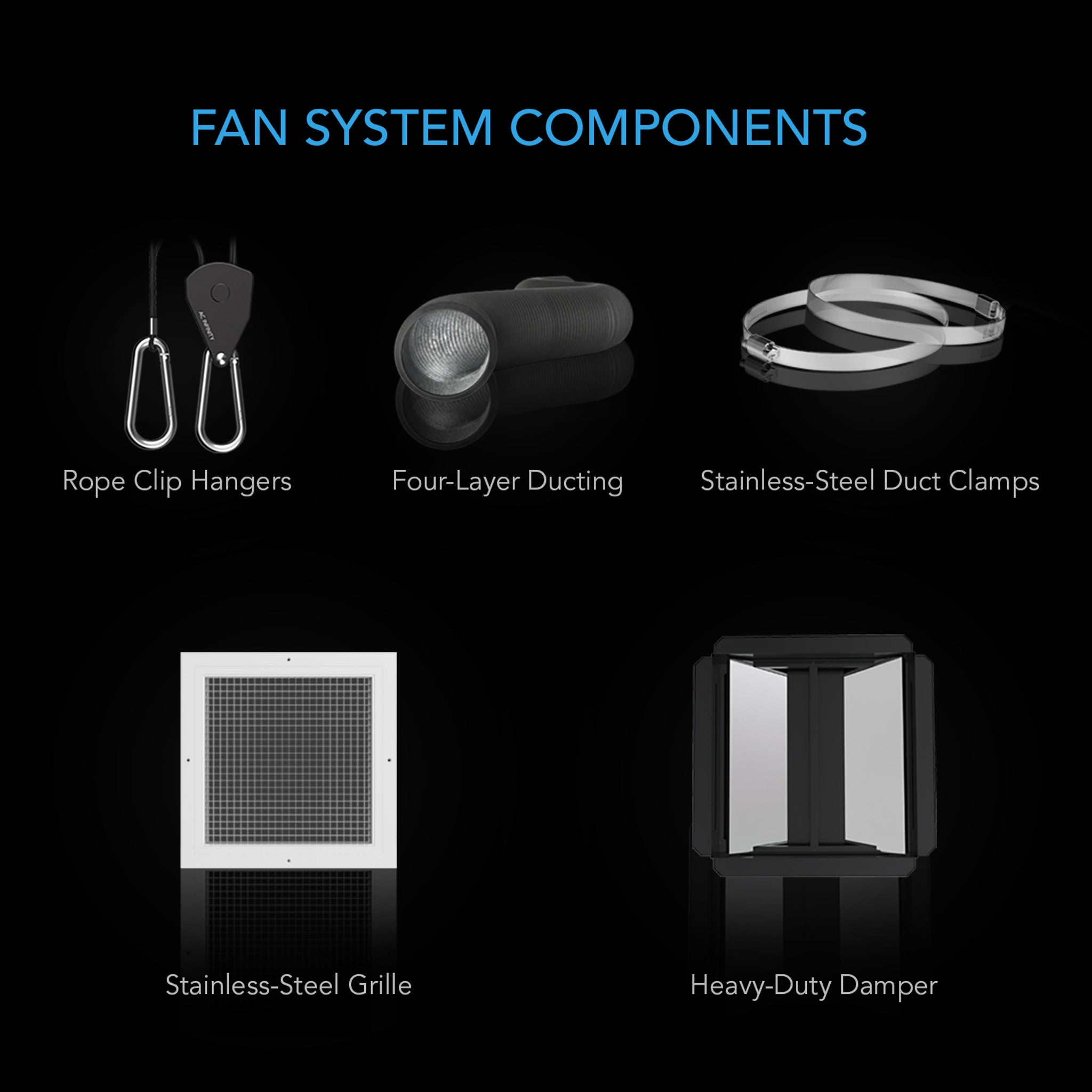

What’s included

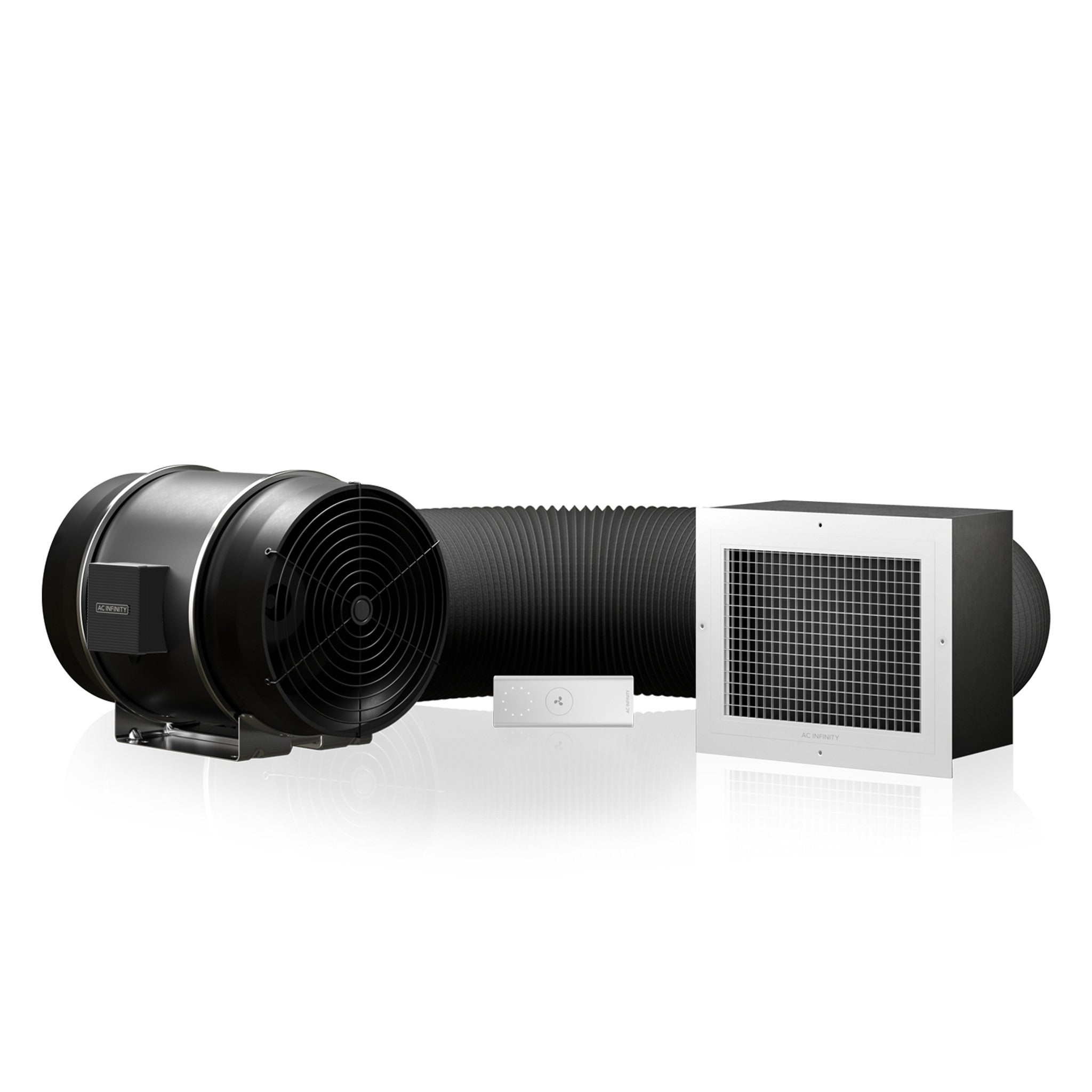

• CLOUDWAY S10 whole house fan
• Wireless 10-speed controller
• 4-layer insulated ducting
• Stainless steel duct clamps
• Wall grille

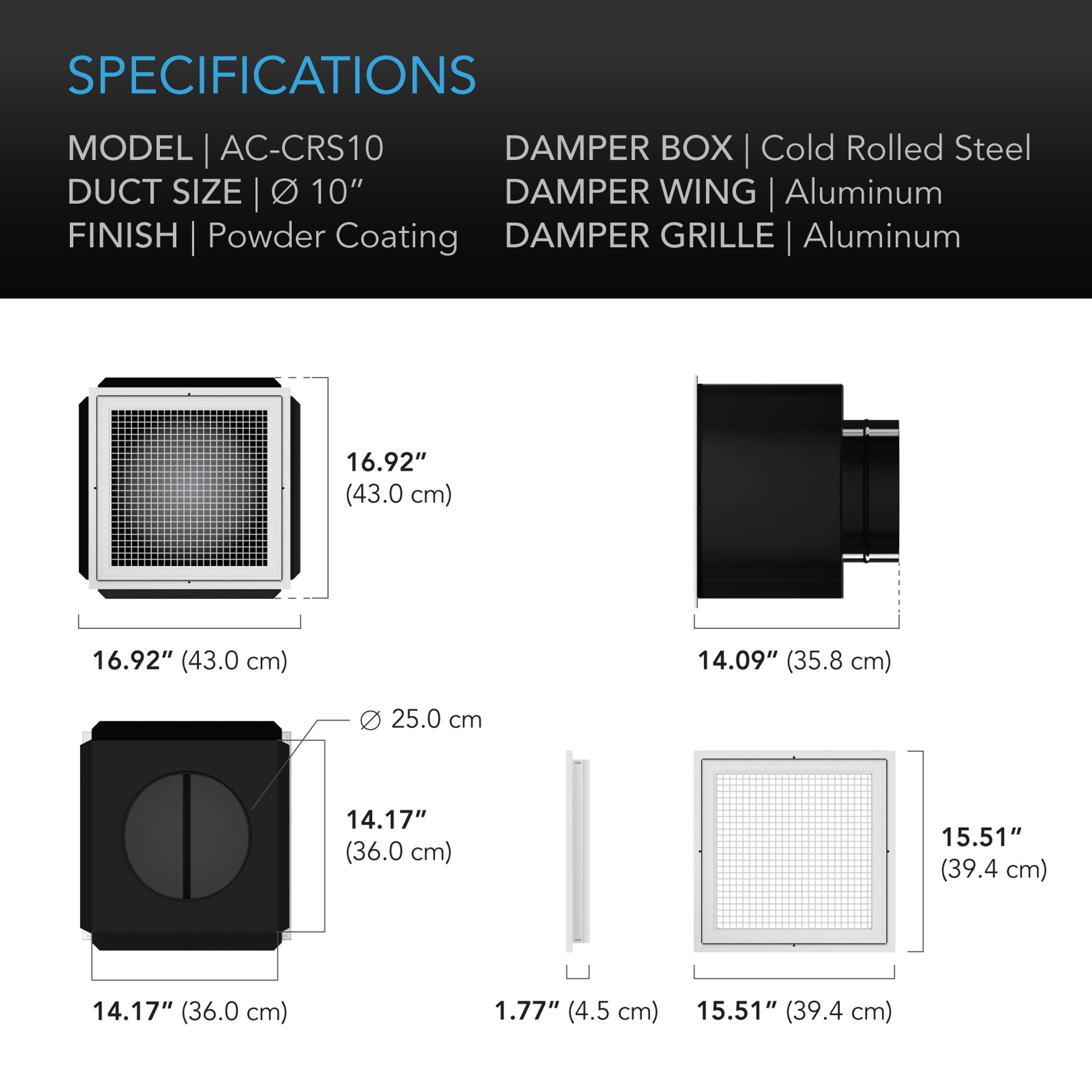

• Two-door insulated shutter
• Installation hardware
• Product manual
