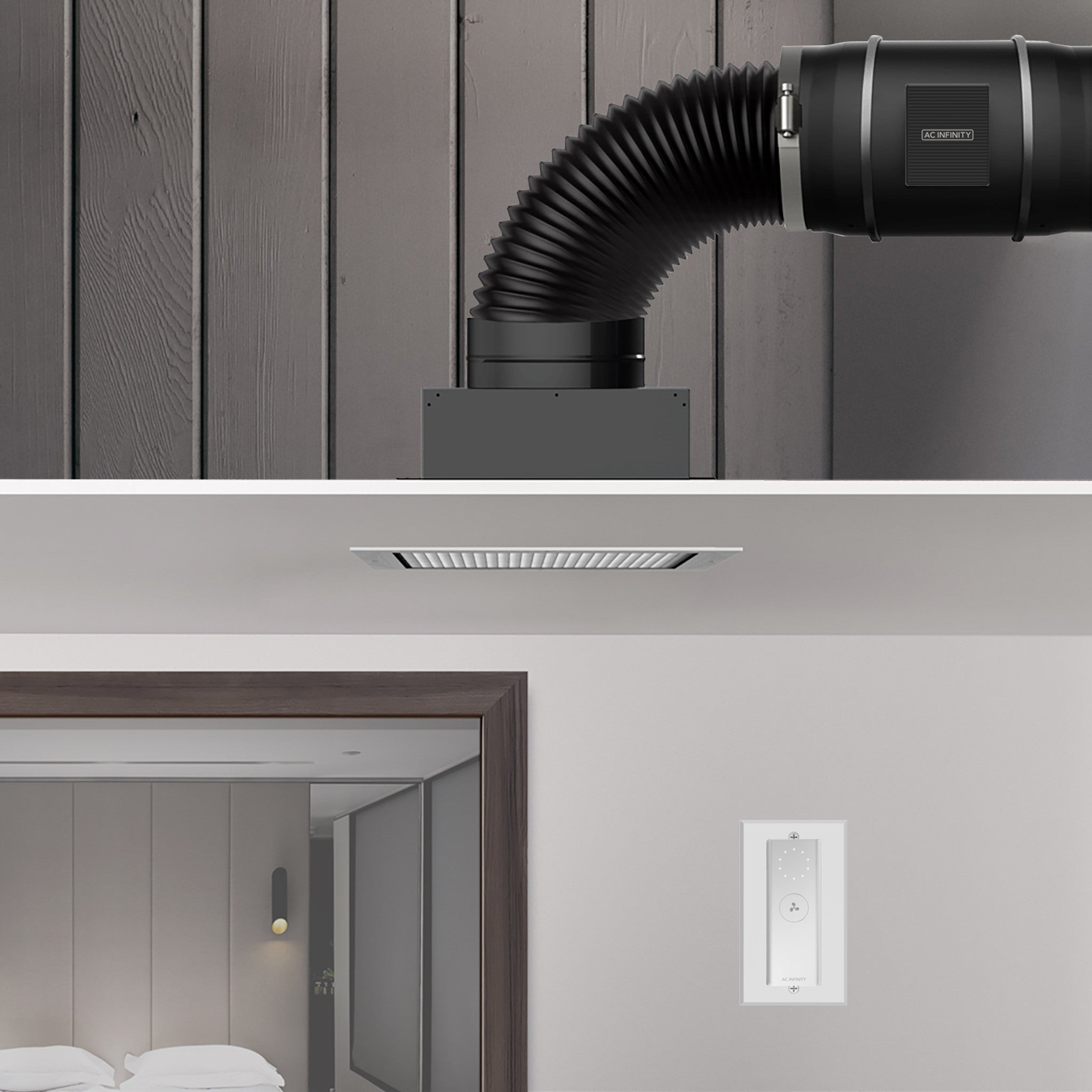

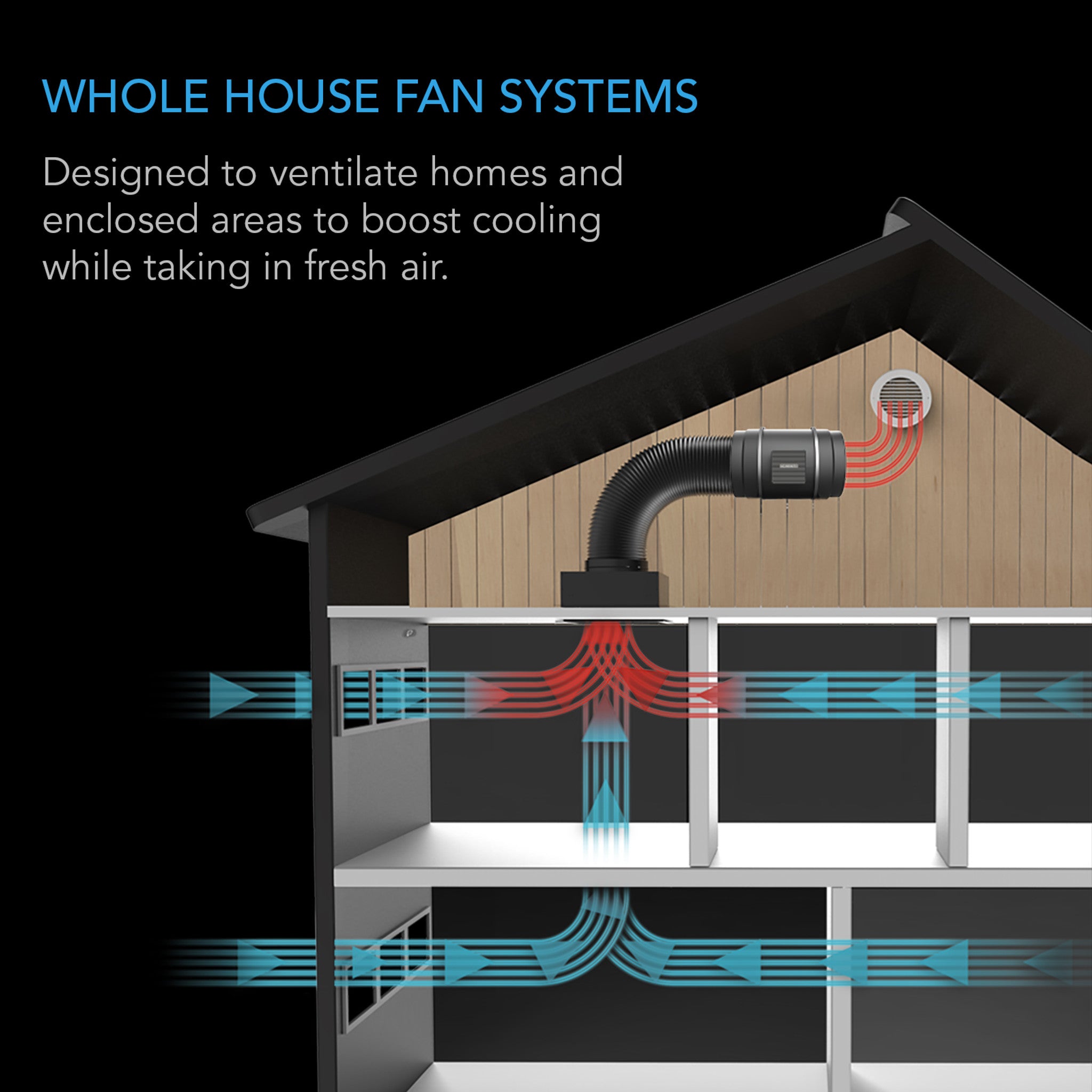

This 12-inch whole house fan is designed to cool and ventilate your home by exhausting hot indoor air and pulling in fresh outdoor air through passive intake. The wireless 10-speed controller allows you to conveniently adjust airflow and noise levels from anywhere in the home, with built-in memory to retain previous settings. Powered by a highly efficient PWM-controlled EC motor, the fan delivers strong airflow while remaining quieter and more energy-efficient than traditional AC-based systems. The included insulated two-door shutter prevents attic air from entering the living space when the fan is turned off. This complete kit includes ducting, clamps, grille, and installation hardware for quick setup in attic spaces.
Key features
• Whole house attic fan designed to improve cooling and ventilation

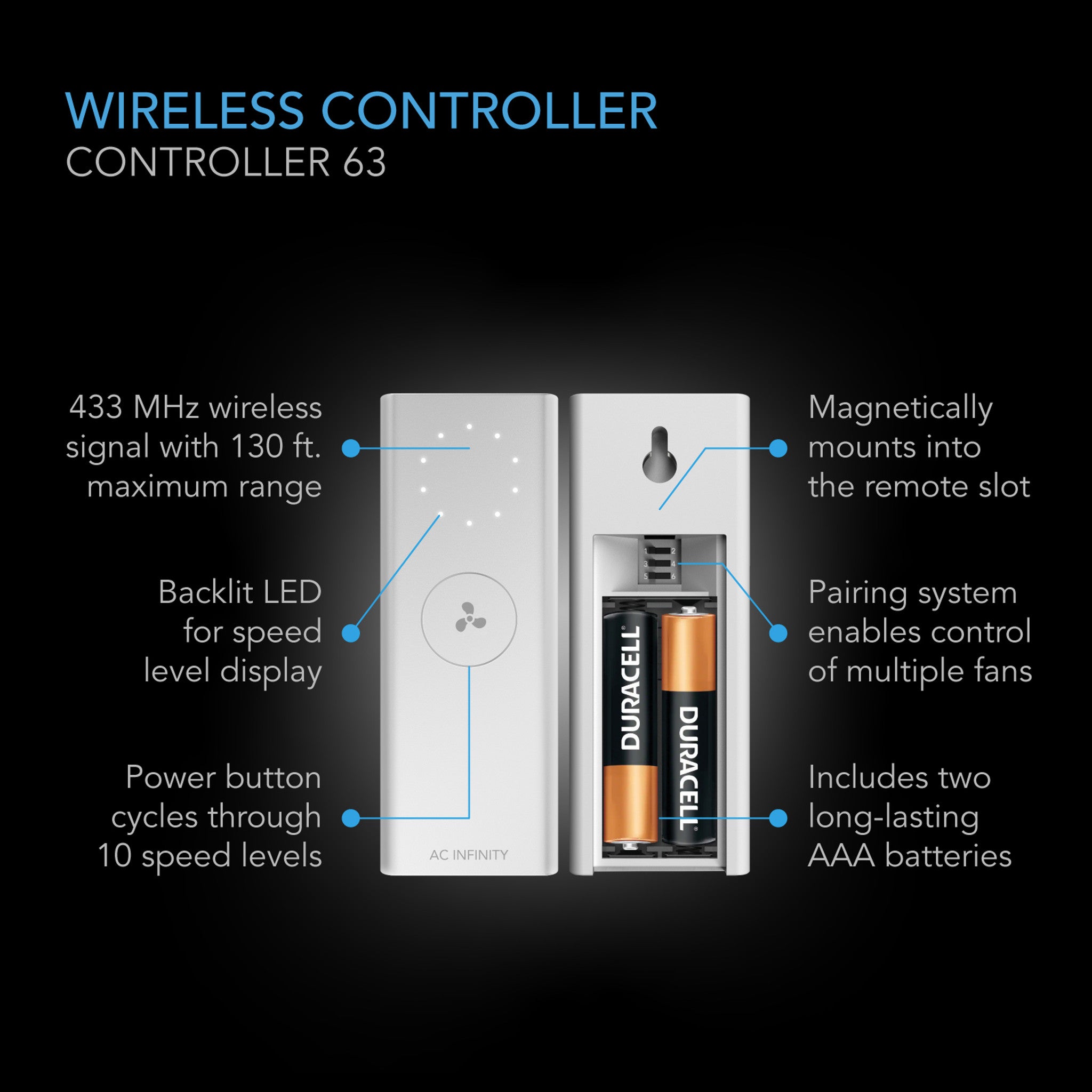

• 10-speed wireless remote with backup memory for easy airflow control

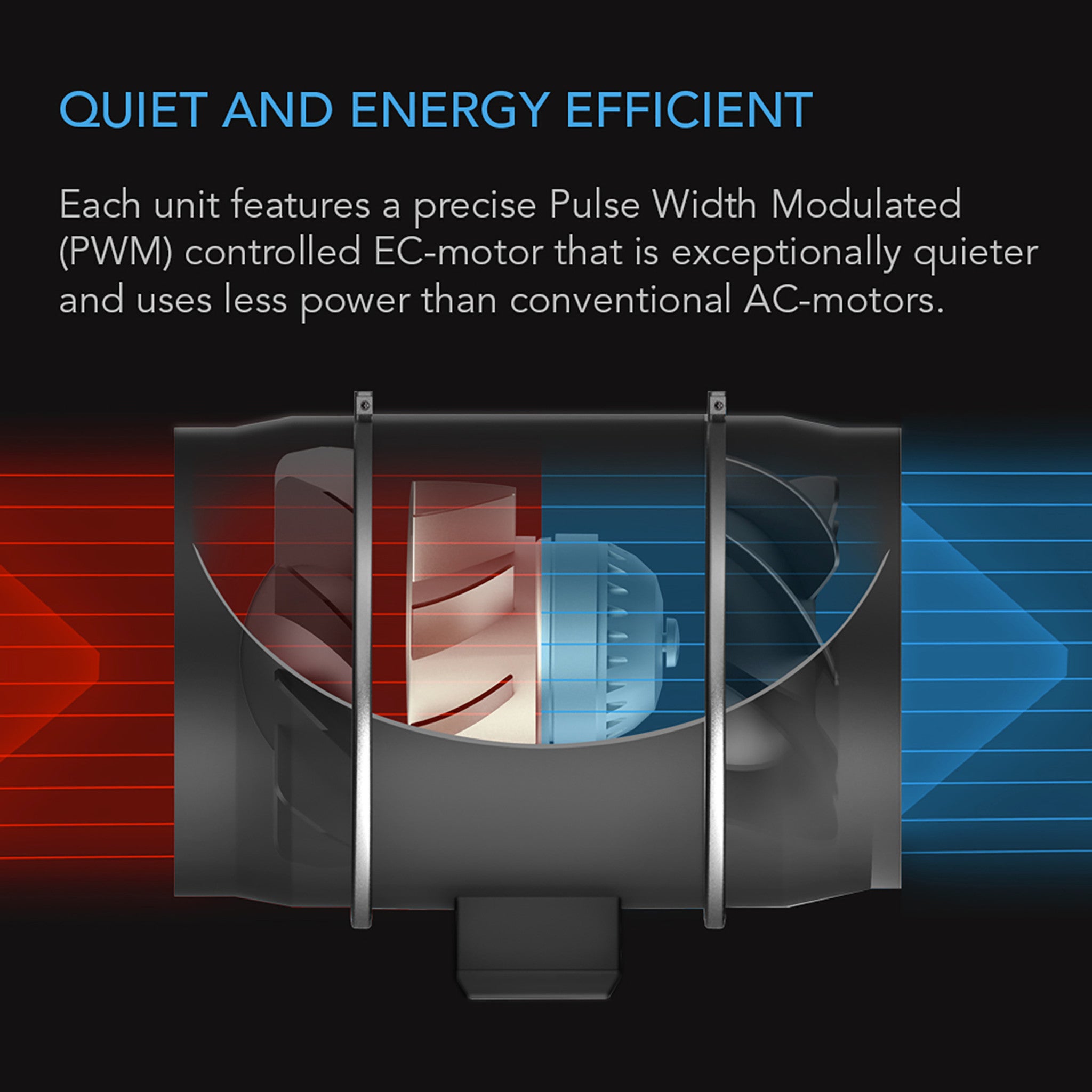

• Premium EC motor with PWM technology for quieter, energy-efficient operation
• Insulated two-door shutter blocks attic air when fan is not operating
• Includes 4-layer ducting, stainless steel clamps, and wall grille
• Dual ball bearings rated for 67,000 hours with IP44 dust and moisture resistance
Applications
• Whole-home cooling and ventilation
• Removing hot, stale indoor air and replacing it with fresh air
• Energy-saving alternative to air conditioning
• Residential attics, houses, multi-level homes requiring airflow improvement

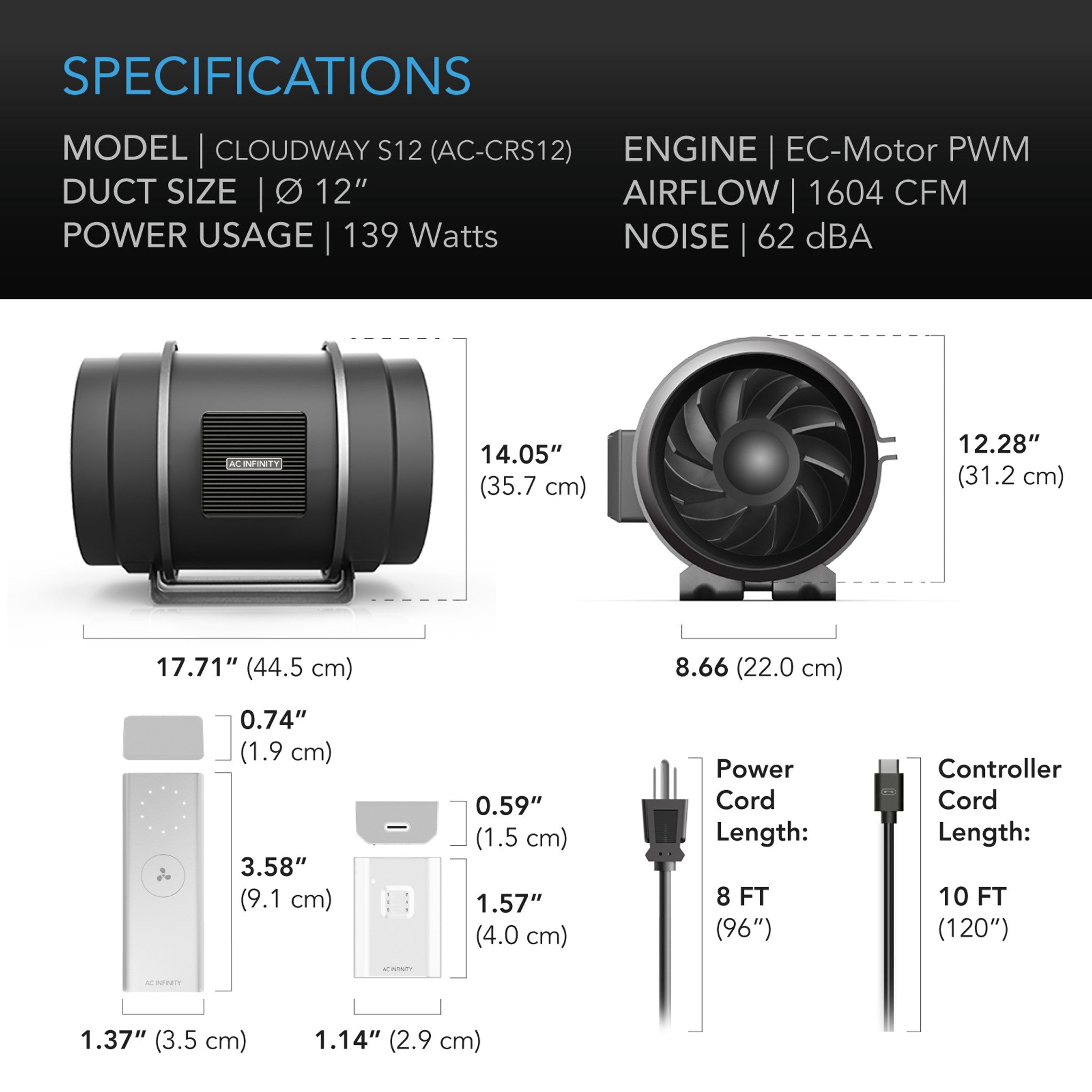

Product specifications
Manufacturer: AC Infinity Inc.
Product Name: CLOUDWAY S12
Product Model: AC-CRS12
UPC Code: 819137023048
Duct Size: 12 in
Duct Tube Length: 6 ft
Fan Unit Dimensions: 12.28 x 17.71 x 14.05 in (31.2 x 45.0 x 35.7 cm)
Mounting Hole-to-Hole Distance: 7.00 x 7.12 in (17.8 x 18.1 cm)
Screw Hole Size: 0.462 in (1.18 cm)
Cord Length to Controller: 240 in (20 feet)
Cord Length to Plug: 96 in (8 feet)
Controller Dimensions: 3.59 x 1.37 x 0.75 in (9.1 x 3.5 x 1.9 cm)
Receiver Dimensions: 1.14 x 1.57 x 0.59 in (2.9 x 4.0 x 1.5 cm)
Mounting Hole Size: 0.25 in (6.5 mm)
Total Airflow: 1604 CFM
Total Noise: 62 dBA
Static Pressure: 818 Pa
Voltage: 100–240V AC
Frequency: 50/60Hz
Max Power Draw: 250 W
Average Power Usage: 139 W
Current: 2.5 A
Power Connector: NEMA 1-15 Type-A
Operating Humidity: 35–85% RH
Operating Temperature: 0–140°F
Ingress Protection: IP44
Fan Bearings: Dual Ball
Mounting Positions: Horizontal or Vertical
Life Expectancy: 67,000 hours
Certifications: CE, RoHS

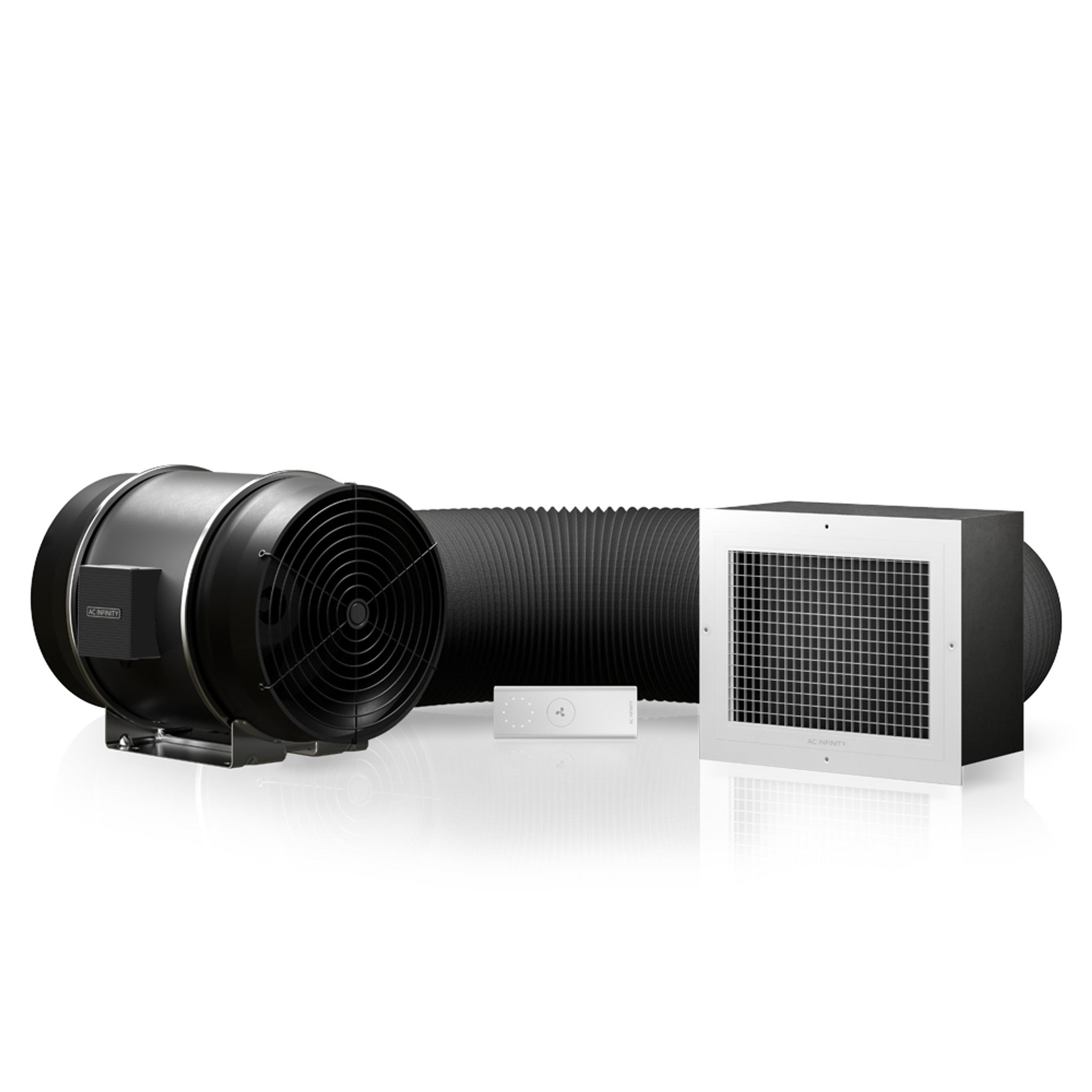

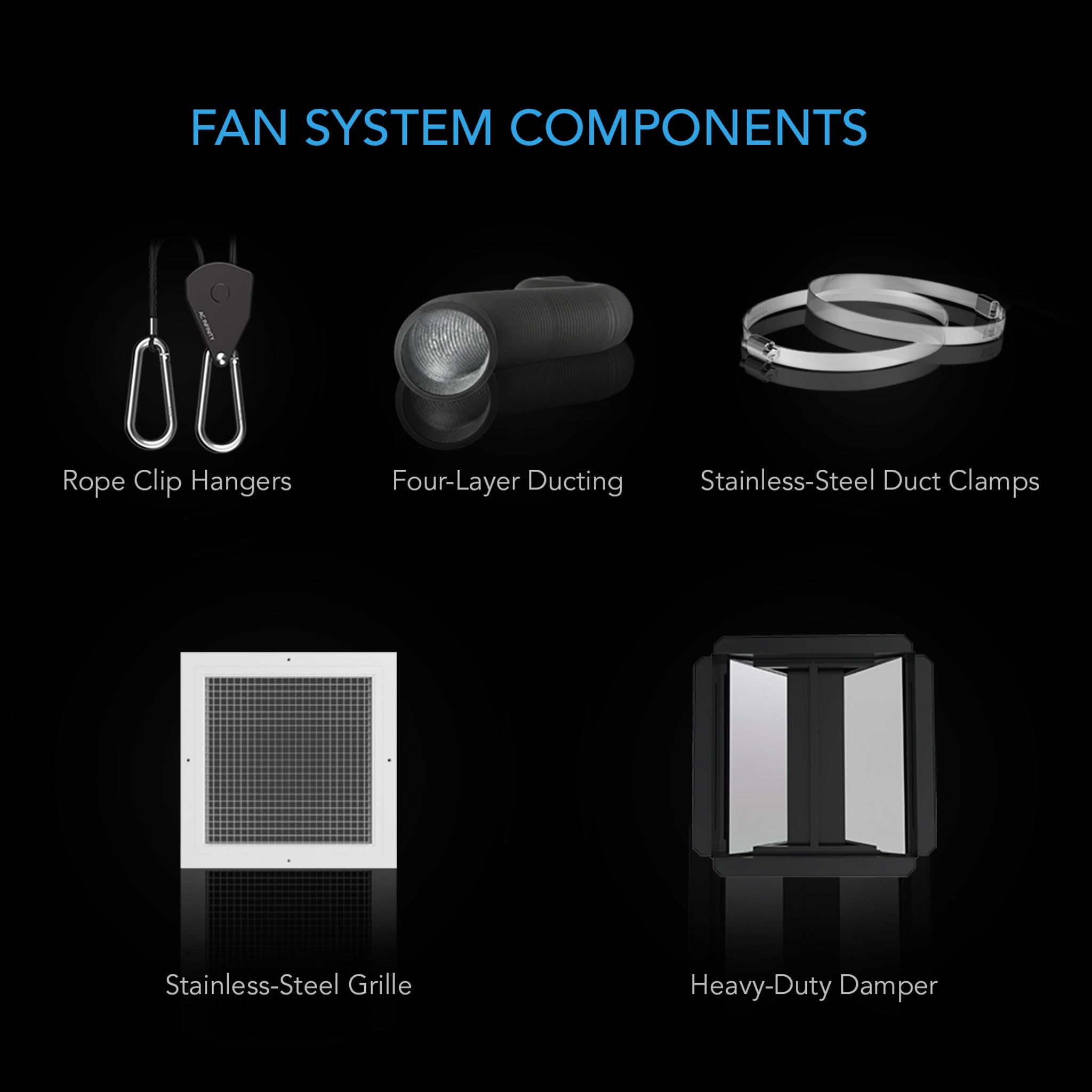

What’s included
• CLOUDWAY S12 whole house fan
• Wireless 10-speed controller
• 4-layer insulated ducting
• Stainless steel duct clamps
• Wall grille
• Insulated two-door shutter
• Installation hardware
• Product manual
