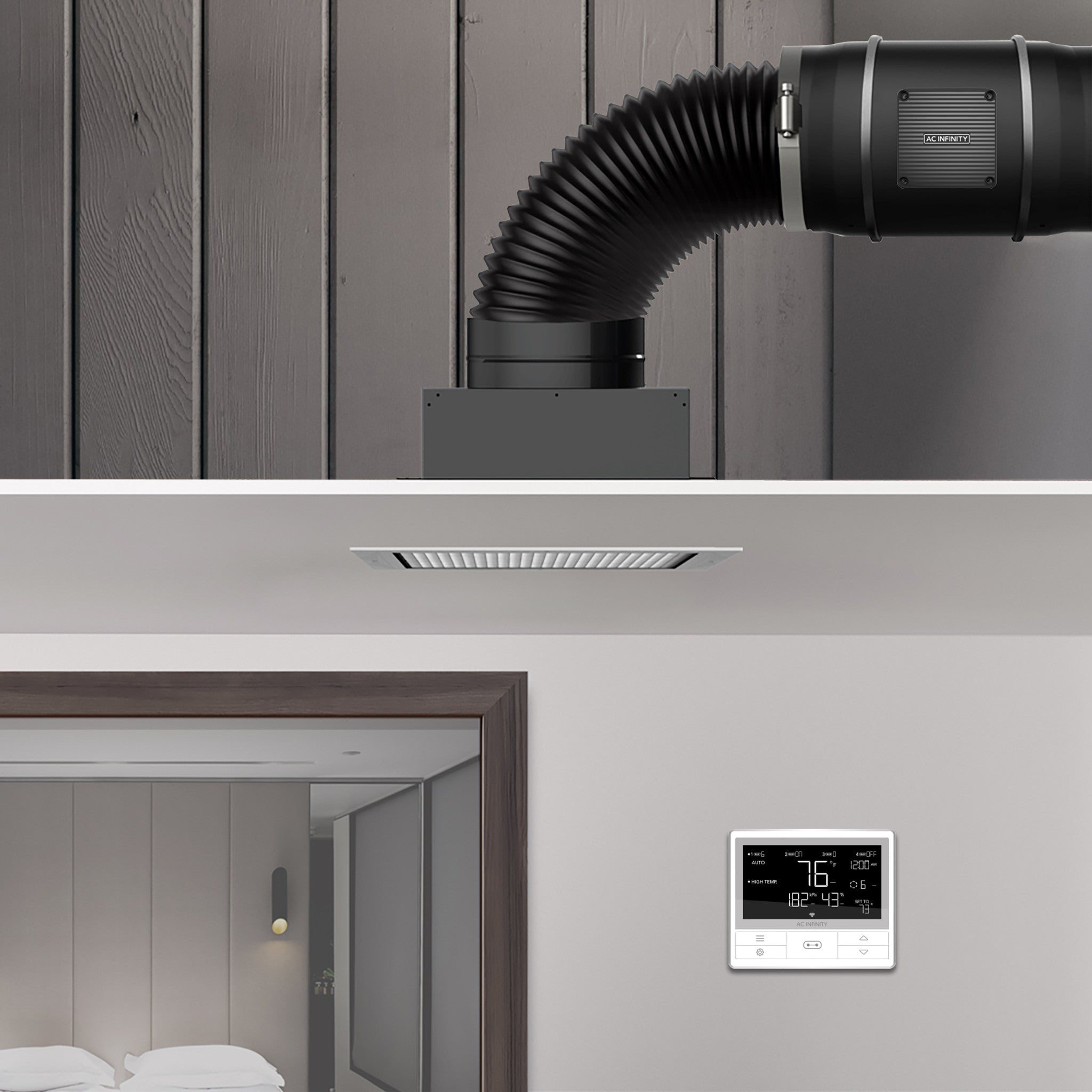

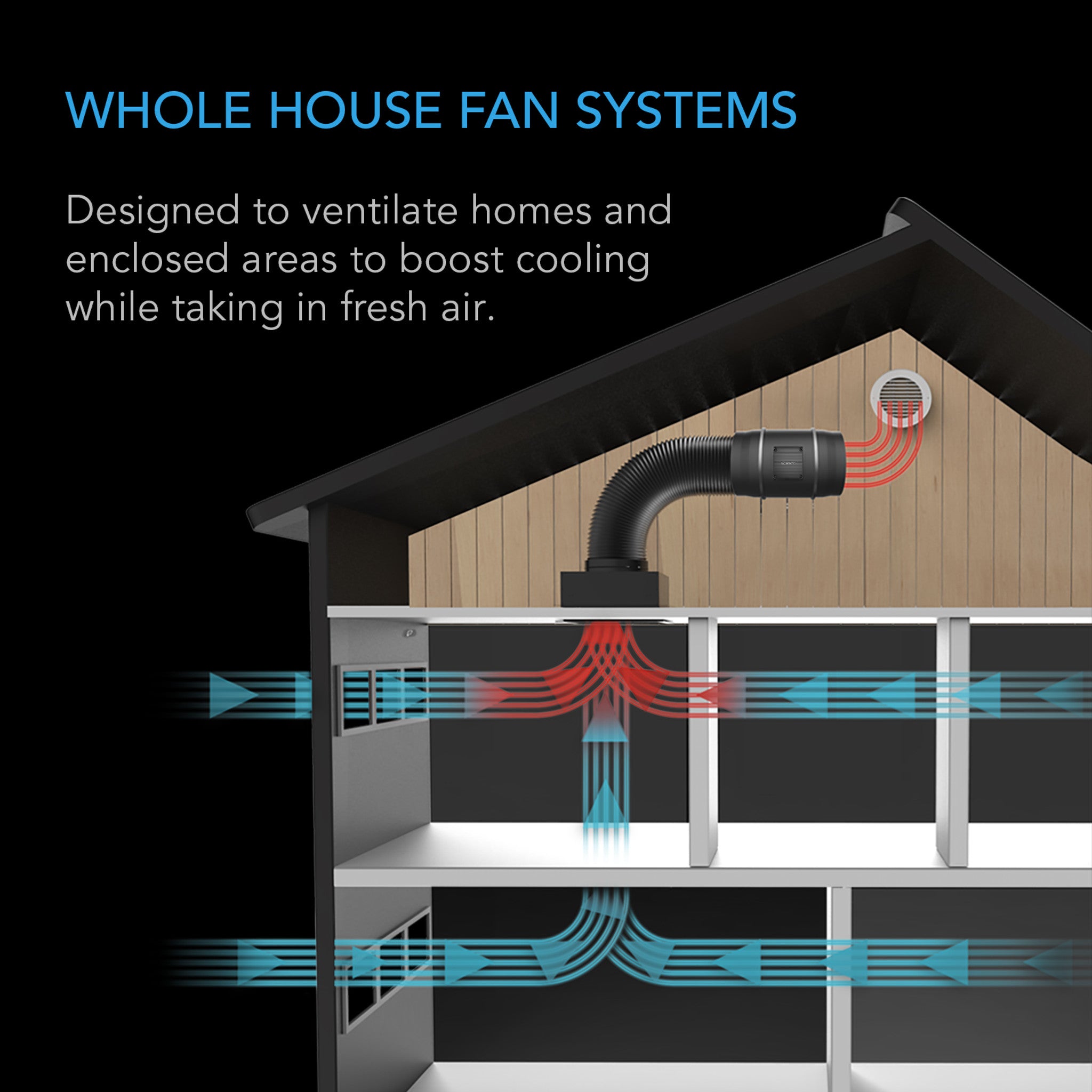

This 10-inch whole house fan is engineered to cool and ventilate entire homes by exhausting hot indoor air and drawing in fresh outdoor air through passive intake. The WiFi-enabled smart controller features temperature, humidity, and VPD triggers, allowing the fan to automatically adjust speeds to maintain a comfortable indoor climate. PWM-controlled EC motor technology provides powerful, energy-efficient airflow with quieter performance than traditional alternatives. The included kit features 4-layer ducting, stainless-steel clamps, a wall grille, and an insulated two-door shutter that seals off attic air when the fan is not operating. Designed for attic installation, the CLOUDWAY T10 delivers whole-home airflow with intelligent automation.
Key features
• Whole house attic fan designed to cool and ventilate indoor spaces
• Smart WiFi controller with temperature, humidity, and VPD triggers
• Dynamic programming with timers, cycles, scheduling, and minimum fan speed

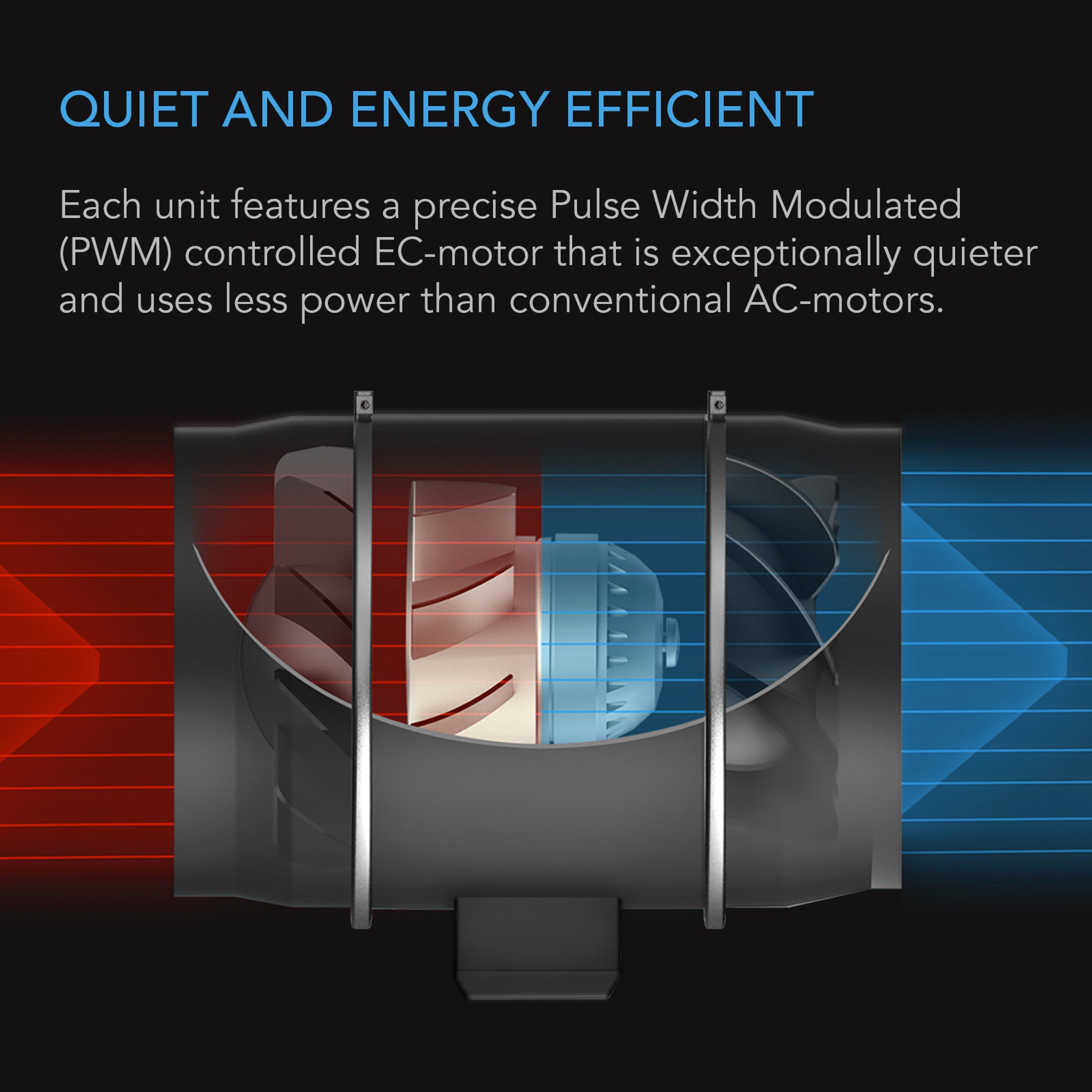

• Quiet, energy-efficient EC motor controlled with PWM technology
• Insulated two-door shutter prevents attic air from entering the home
• Full installation kit includes ducting, clamps, grille, and hardware
• Dual ball bearings rated for 67,000 hours with IP44 dust and moisture resistance
Applications
• Whole-home cooling through attic-based ventilation
• Replacing hot, stale indoor air with fresh outdoor airflow
• Energy-efficient alternative to running air conditioning
• Climate-controlled home ventilation using smart automation
• Residential attics, single-story and multi-story homes

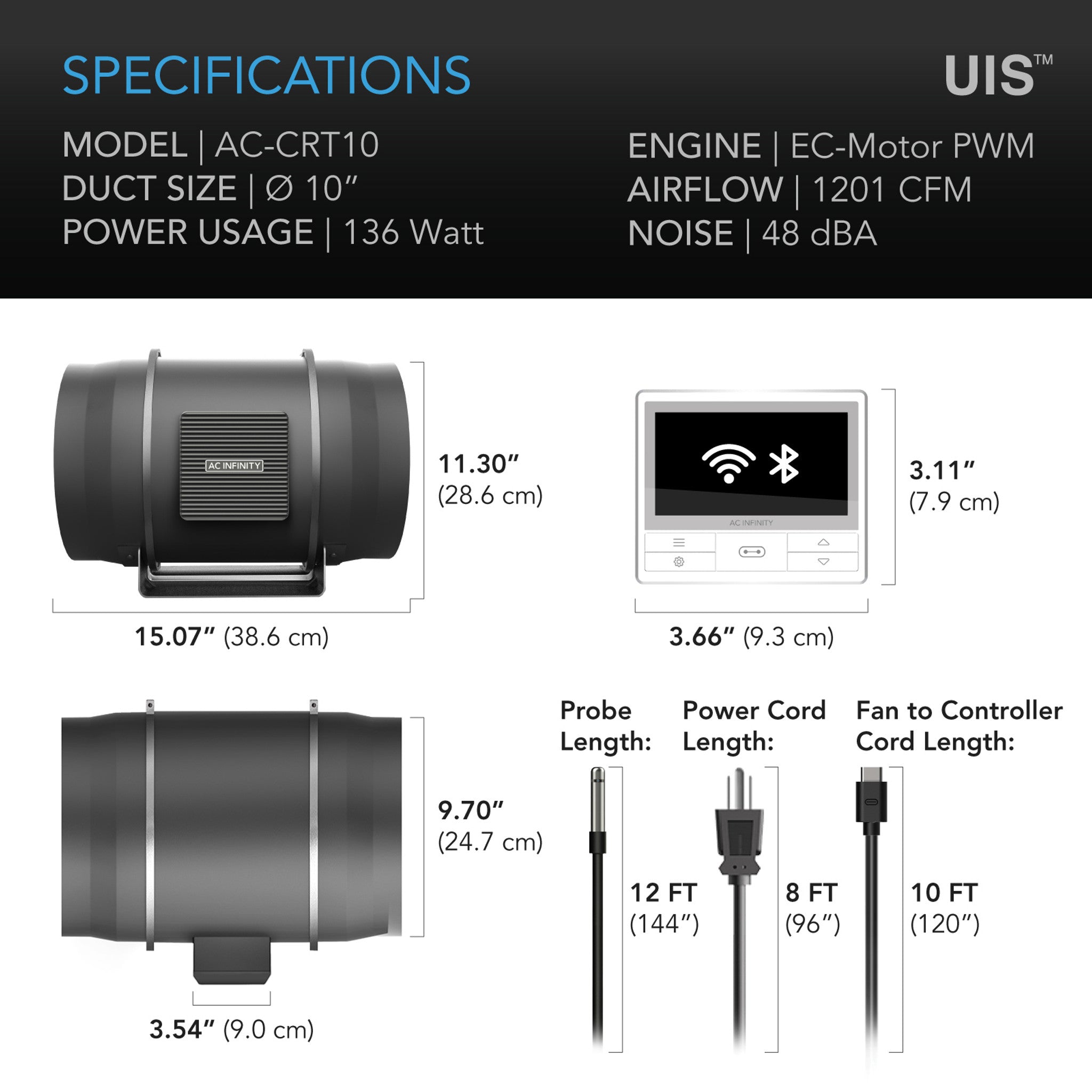

Product specifications
Manufacturer: AC Infinity Inc.
Product Name: CLOUDWAY T10
Product Model: AC-CRT10
UPC Code: 819137021082
Duct Size: 10 in
Duct Tube Length: 6 ft
Fan Unit Dimensions: 9.81 x 15.07 x 11.30 in (24.9 x 38.6 x 28.6 cm)
Mounting Hole-to-Hole Distance: 5.90 x 5.90 in (15.0 x 15.0 cm)
Screw Hole Size: 0.472 in (1.2 cm)
Cord Length to Controller: 120 in (10 feet)
Cord Length to Plug: 96 in (8 feet)
Controller Dimensions: 3.66 x 3.11 x 0.98 in (9.3 x 7.9 x 2.5 cm)
Display Size: 3.5 x 1.4 in (9 x 3.5 cm)
Sensor Probe Length: 144 in (12 feet)
Total Airflow: 1201 CFM
Total Noise: 48 dBA
Static Pressure: 352 Pa
Voltage: 100–240V AC
Frequency: 50/60Hz
Max Power Draw: 255 W
Average Power Usage: 150 W
Current: 2.7 A
Power Connector: NEMA 1-15 Type-A
Operating Humidity: 35–85% RH
Operating Temperature: 0–140°F
Ingress Protection: IP44
Fan Bearings: Dual Ball
Mounting Positions: Horizontal or Vertical
Life Expectancy: 67,000 hours
Certifications: CE, RoHS

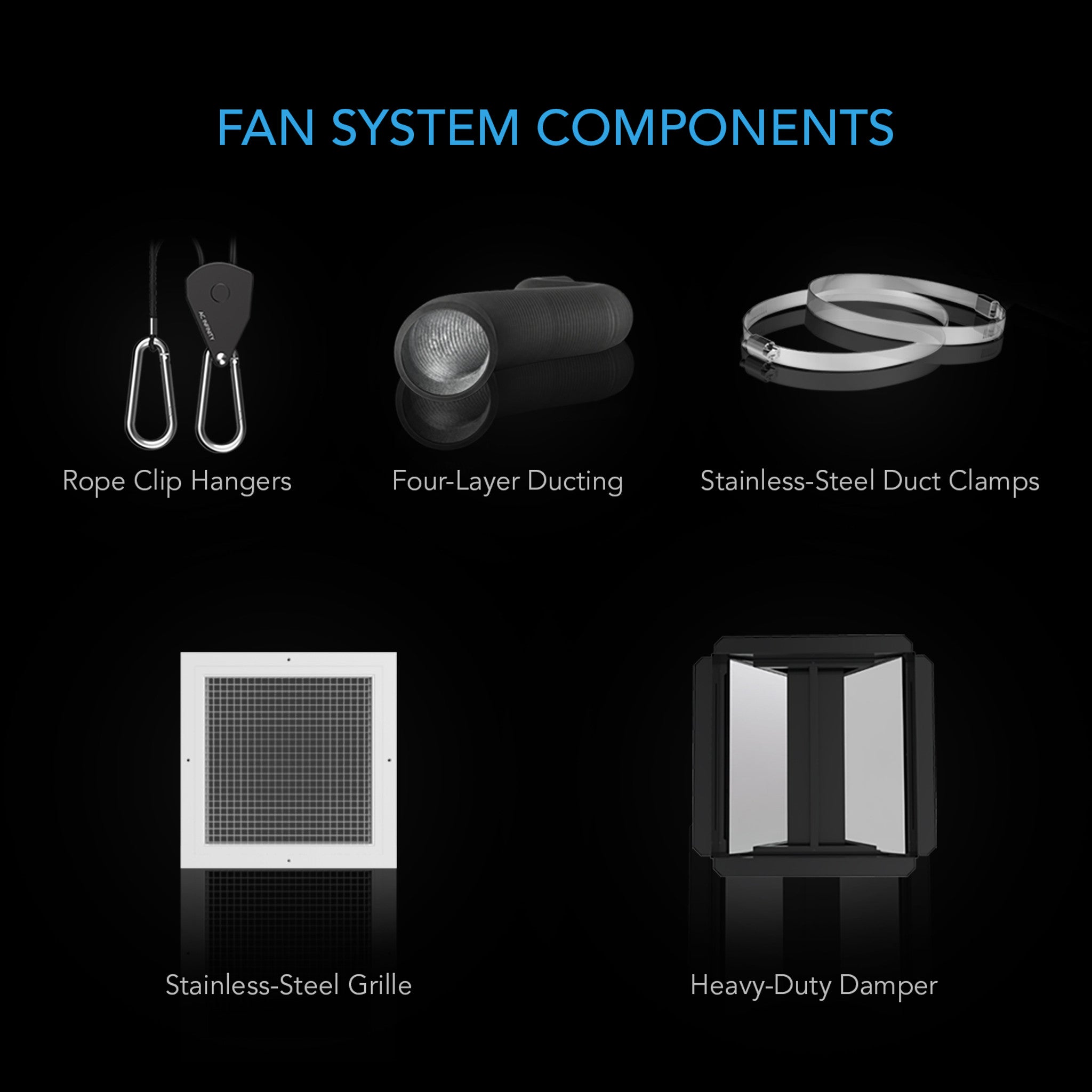

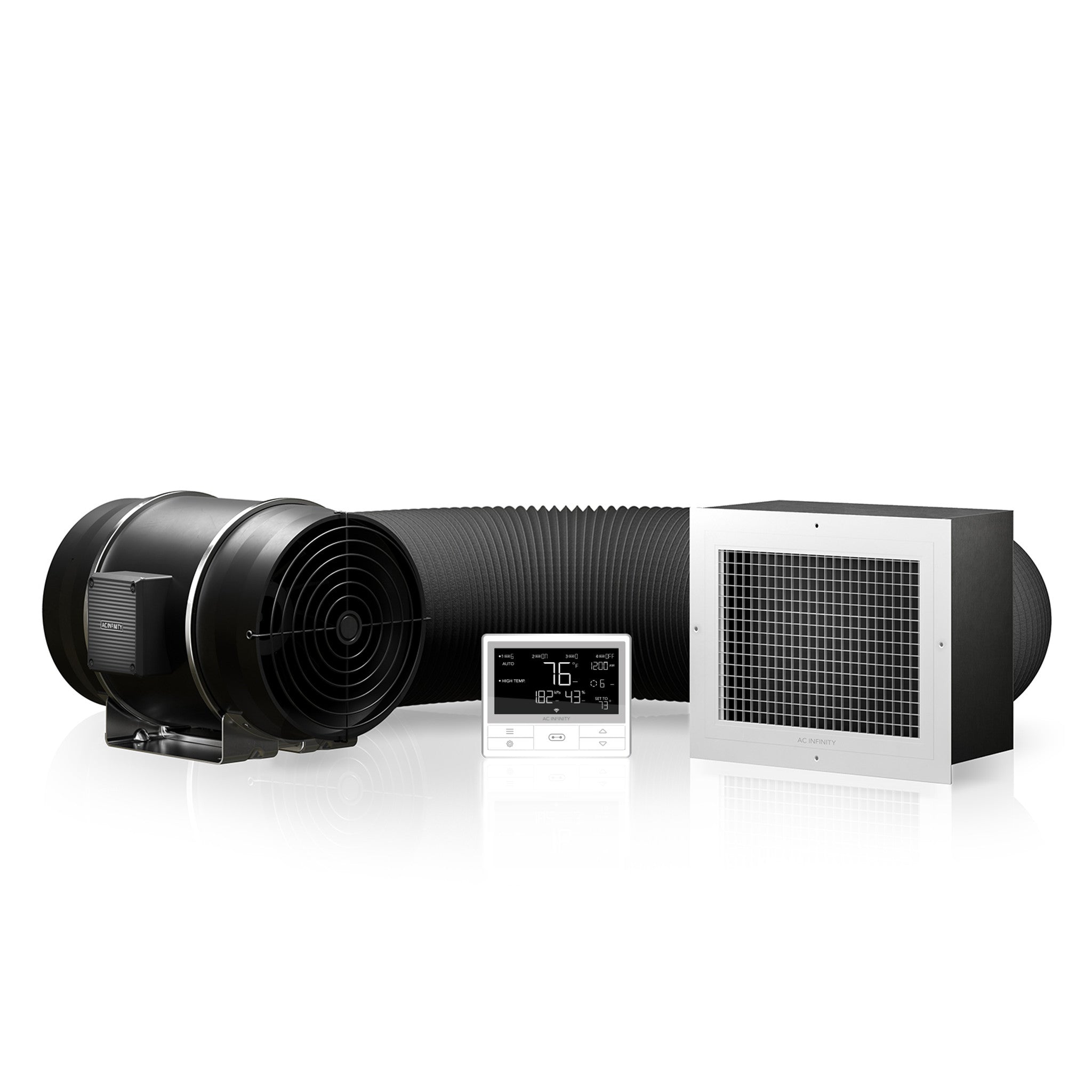

What’s included
• CLOUDWAY T10 whole house fan
• Smart WiFi temperature/humidity/VPD controller
• 4-layer insulated ducting
• Stainless steel duct clamps
• Wall grille
• Two-door insulated shutter
• Installation hardware
• Product manual
