Click on image to zoom

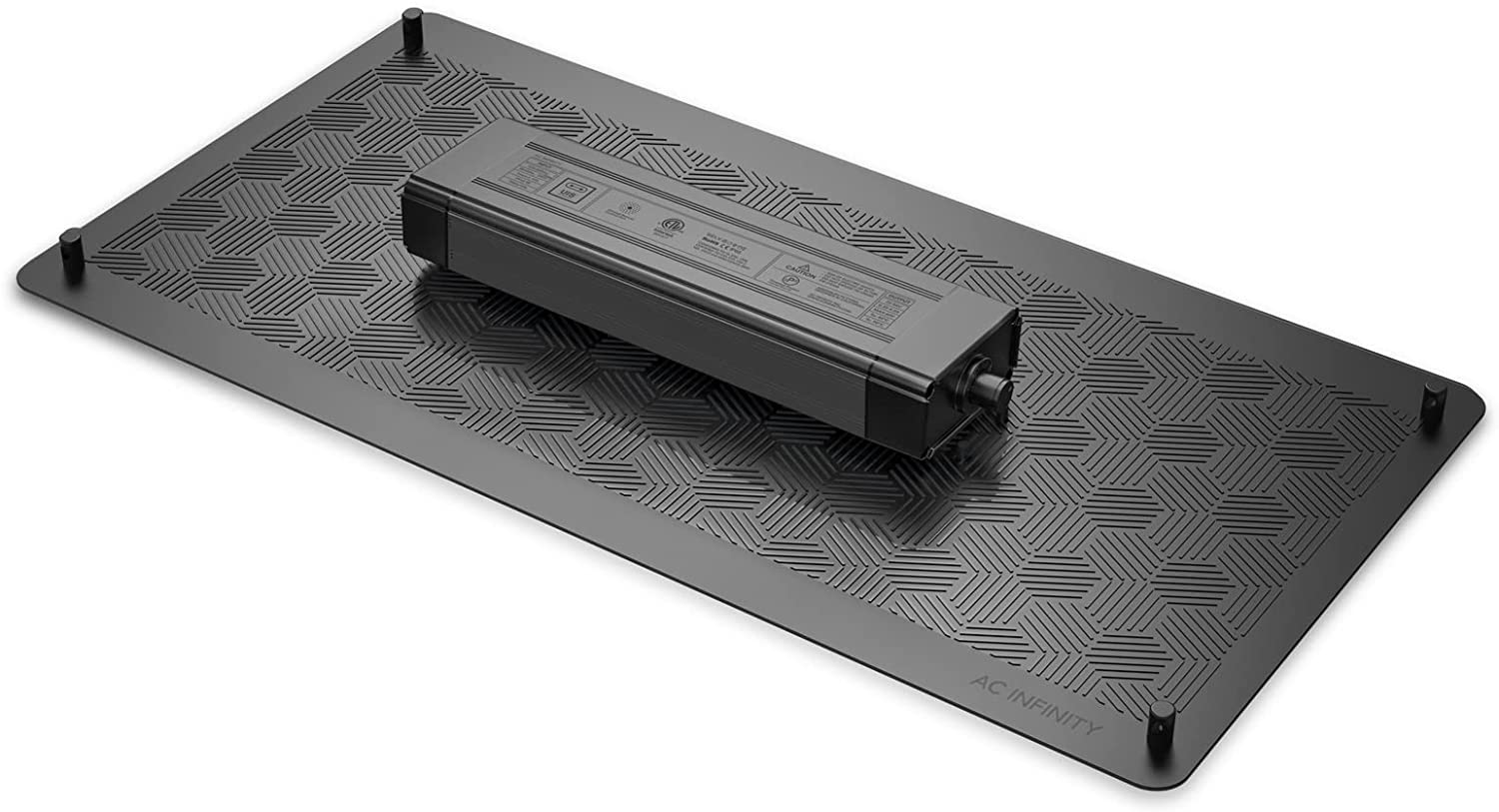

Black metal heat sink mounting plate for AC Infinity LED grow light driver, shown at an angle on a white background. AC Infinity LED grow light hanging inside a fabric tent with plants, duct fan, and climate controller visible. Infographic showing Samsung LM301B LED types, wavelengths, and a PAR spectrum chart for optimal plant growth. Diagram of LED grow light diode layout with PAR maps showing light intensity at 12, 14, and 18-inch heights. Black dimmable grow light controller with a central knob, metal casing, and features listed for smart connectivity. Diagram showing an AC Infinity controller connected to inline fans, LED lights, shutter fans, and clip-on fans. Ionboard S24: A slim, black rectangular 200W LED grow light with dimensions and technical specifications for gardening.

Ionboard S24 200 Watt LED Grow Light for 2x4

AC Infinity
Price:
$239.00
img 1

Free Shipping Over $49

img 2

Financing
Available Here

img 3

Discreet Packaging

img 4

Have a Question?
716-217-0353

Description

Fill your 2x4 tent with 1,726 PPFD from a single board

The AC Infinity Ionboard S24 is a 220W full-spectrum LED grow light built around 544 Samsung LM301H diodes on a fanless aluminum board. It covers a 2x4 ft. footprint with 2.65 µmol/J efficiency, dims from 0 to 100% in 20% increments, and plugs directly into AC Infinity's UIS controller ecosystem for automated scheduling. The board is IP65-sealed, so humidity and dust are not a concern.

Samsung LM301H diodes IP65 sealed ETL certified
Free shipping on orders over $49
30-day returns on all orders
Serving growers since 2006
Gallery
See the Ionboard S24 in action
Side by side
Budget blurples vs. the Ionboard S24
Budget LED panels
  • Generic diodes with 1.5-1.8 µmol/J efficiency, higher power bills for less usable light
  • Narrow or incomplete spectrum missing far-red wavelengths plants use in flowering
  • Noisy built-in fans that add heat and wear out over time
  • No dimming or only basic high/low toggle with no precision control
  • Standalone unit with no controller integration or scheduling capability
  • Exposed components that degrade in high-humidity grow environments
Ionboard S24
  • Samsung LM301H diodes at 2.65 µmol/J, more usable light per watt consumed
  • Full spectrum: 3000K, 6500K white plus 660nm red and 730nm far-red for all growth stages
  • Fanless aluminum unibody dissipates heat passively with zero noise
  • 0-100% dimming in 20% steps via the built-in driver knob
  • UIS platform compatible: connect to AC Infinity controllers for automated grow cycles
  • IP65-sealed board and components rated for 35-85% RH environments
Key features
What the Ionboard S24 actually does for your grow

544 Samsung LM301H diodes 2.65 µmol/J

AC Infinity's Horticulture Series diodes blend 3000K and 6500K white LEDs with 660nm red and 730nm far-red. The diodes are algorithmically positioned across the board for uniform PAR coverage and deep canopy penetration.

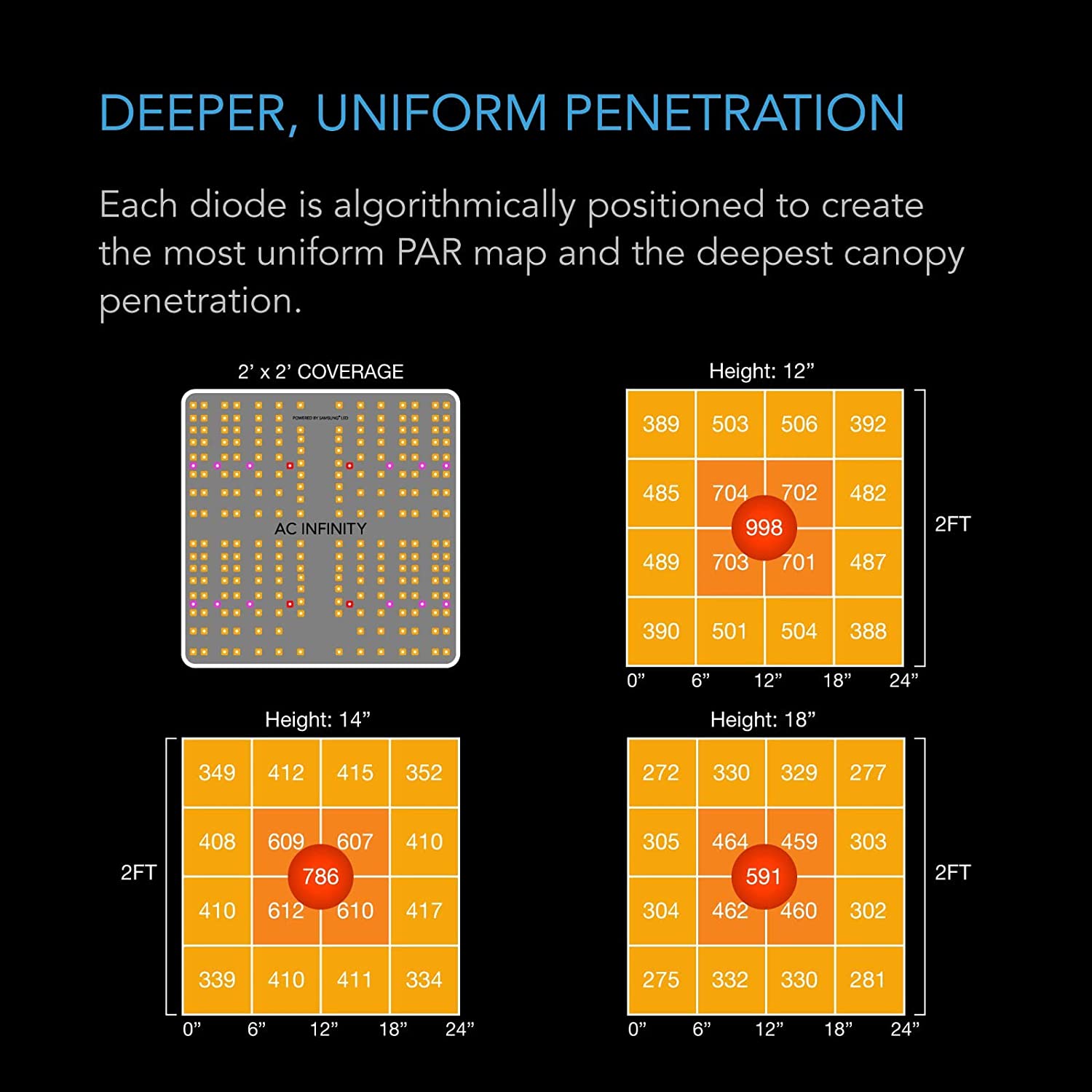

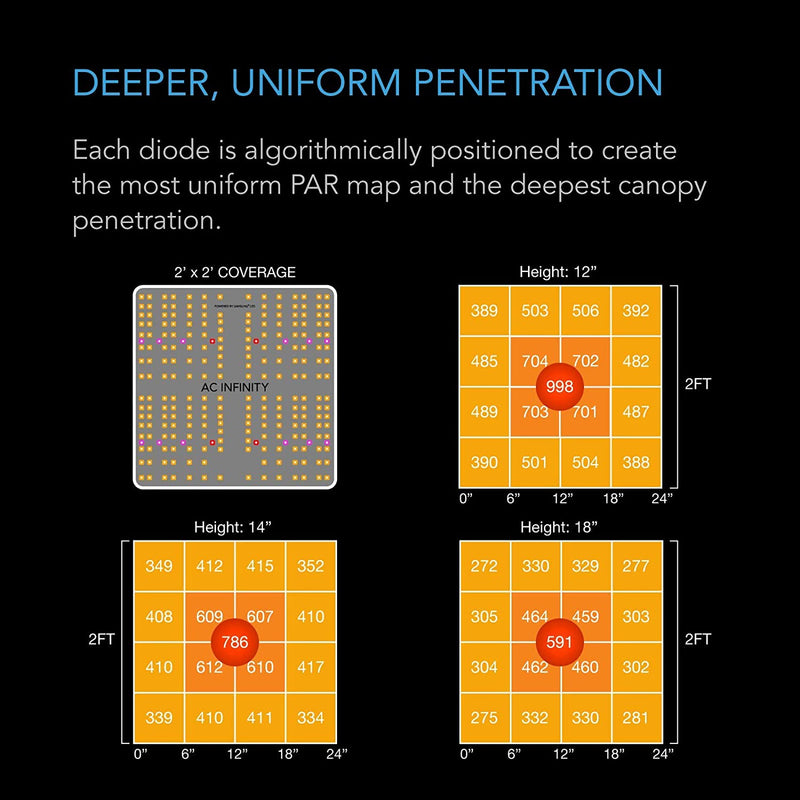

1,726 PPFD at full power 220W

Measured center-canopy in a 2x4 reflective tent. That is enough photon density for high-light crops through the entire flowering cycle without supplemental lighting.

0-100% dimming in 20% steps

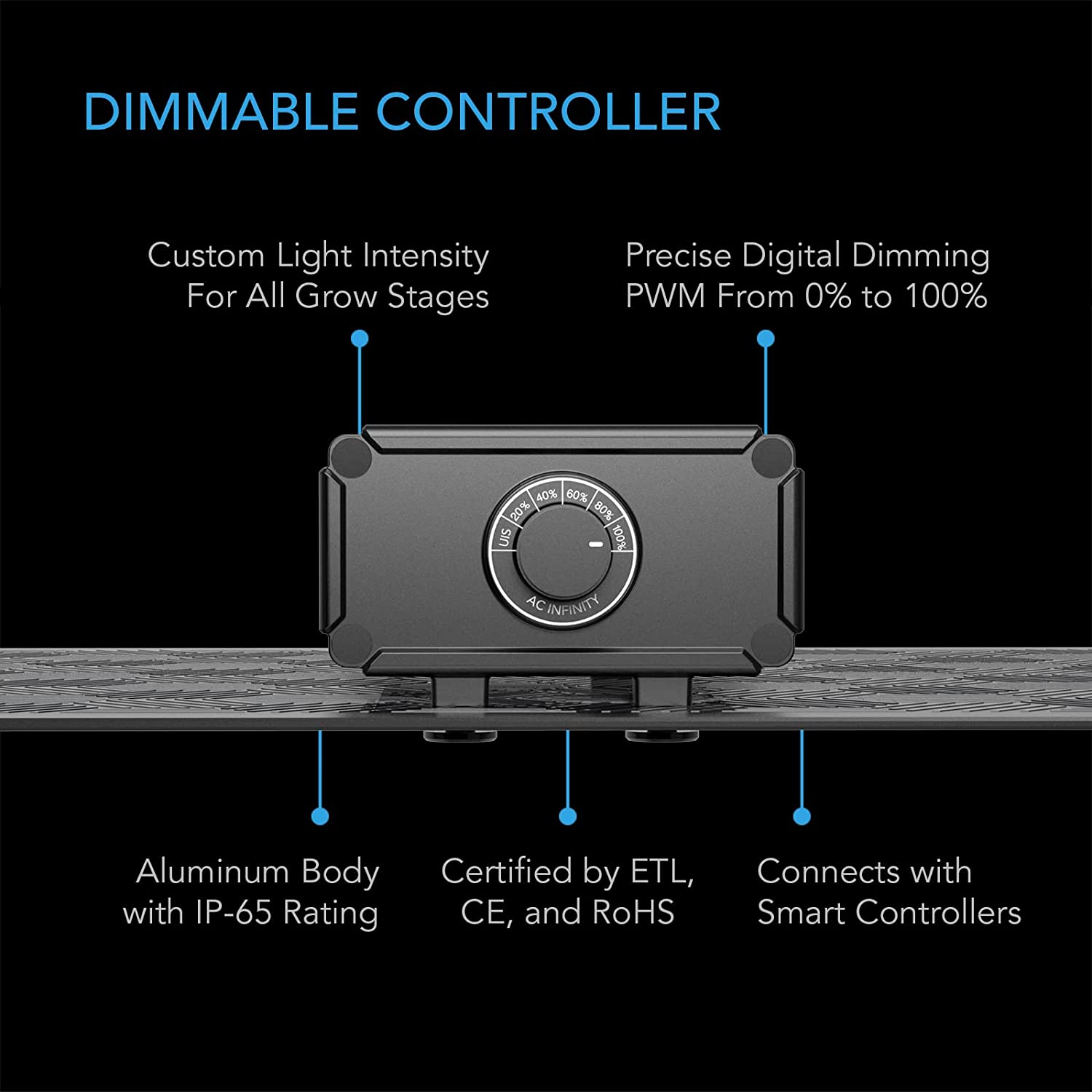

The proprietary IB-200 driver includes a control knob on the unit. Dial it down for seedlings, up for flower, without swapping fixtures or buying a separate dimmer.

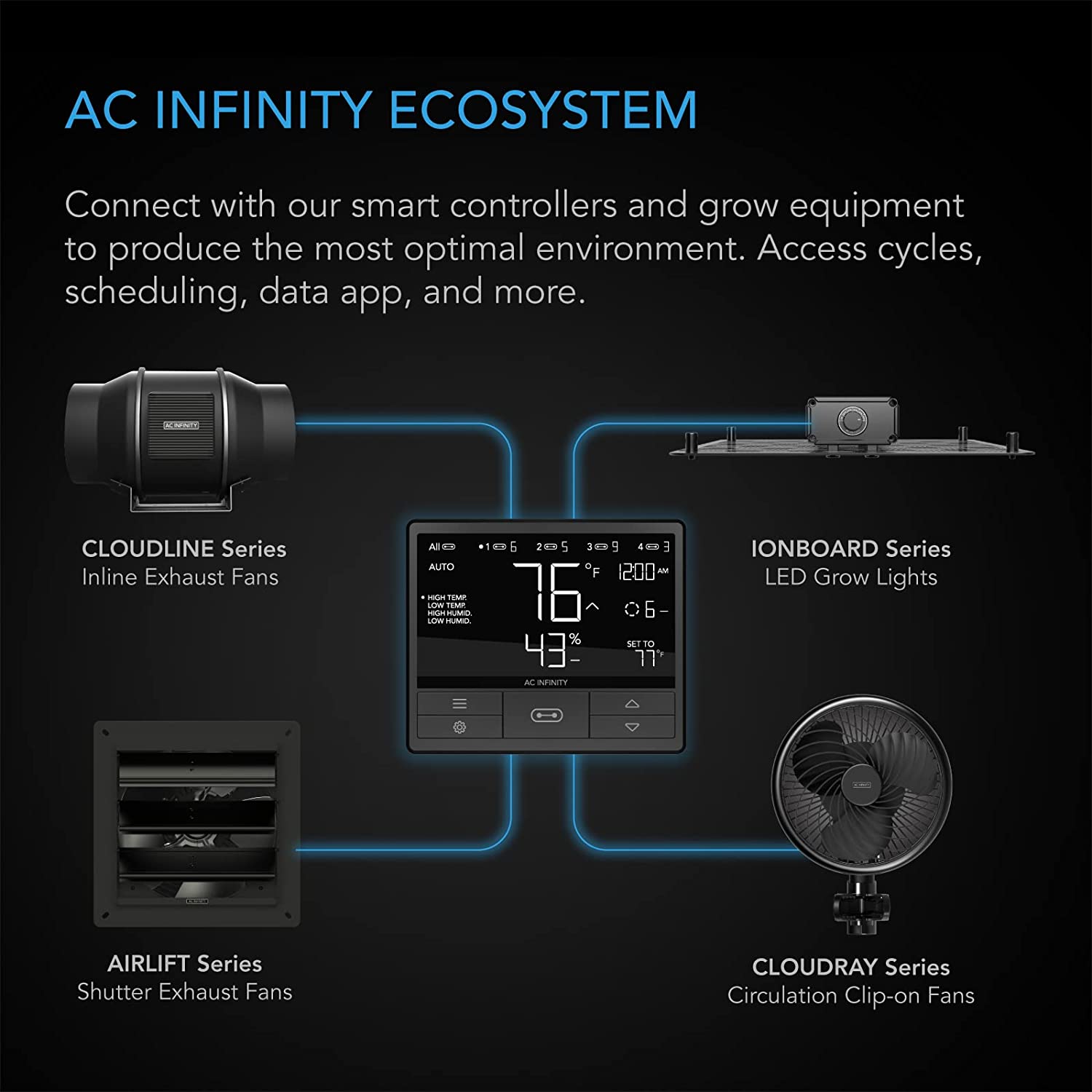

UIS platform and daisy chaining

Connect to a Controller 69 Pro or Controller AI for automated light schedules, sunrise/sunset ramps, and app-based monitoring. Daisy chain multiple boards off one controller using expansion dongles (sold separately).

IP65-sealed fanless aluminum body

The unibody aluminum board dissipates heat without fans, so there are zero moving parts and zero noise. The IP65 seal keeps moisture and dust out of the diode array and driver connections.

50,000-hour rated lifespan

At 18 hours per day, that works out to roughly 7.5 years of continuous use before diode output begins to degrade. AC Infinity backs the unit with a 2-year warranty.

Specs
Technical specifications
Wattage
220W
PPFD
1,726 µmol/m²/s
Coverage
2 x 4 ft.
Efficiency
2.65 µmol/J
Spectrum
660nm, 730nm, 3000K, 6500K
Board dimensions
11.81 x 23.62 x 0.43 in.
Voltage
100-277V AC, 50/60 Hz
Lifespan
50,000 hours

How to set up the Ionboard S24

1

Hang the board

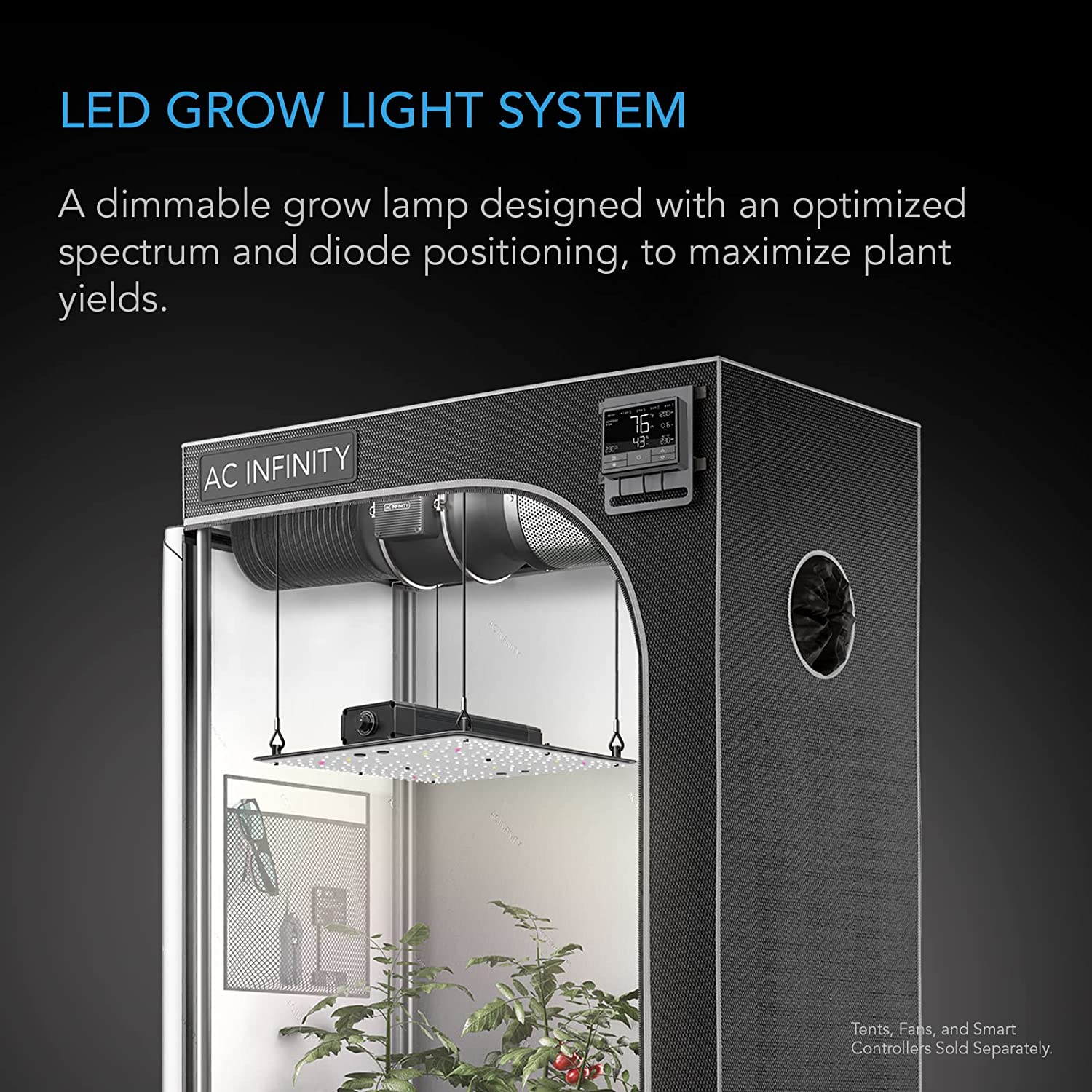

Use the included metal bar hangers or rope hangers to mount the board inside your tent. Adjust height to 18-24 inches above the canopy for seedlings, 12-18 inches for flowering.

2

Connect the driver

The IB-200 driver mounts outside or inside the tent. Keeping it outside reduces tent heat. Plug the driver into a standard 120V outlet (or 240V/277V where applicable).

3

Set your dimming level

Turn the driver knob to set intensity. Start seedlings around 40%, bump to 60-80% for veg, and run 100% during flower. Each click is a 20% increment.

4

Connect a controller (optional)

Plug into an AC Infinity Controller 69 Pro or Controller AI to automate on/off schedules, sunrise/sunset dimming ramps, and app monitoring. The dongle port also supports daisy chaining additional Ionboards.

In the box
Everything you need to start growing
Included with every unit
  • Ionboard S24 LED grow light board
  • IB-200 proprietary driver with digital dimmer
  • Rope hanging kit
  • Wire/metal bar hanging kit
  • Power cord with US plug (NEMA 1-15)
Compatible add-ons
  • Controller 69 Pro: automated schedules, temp/humidity triggers
  • Controller AI+: AI-powered dynamic adjustments via the app
  • UIS Splitter Dongle: daisy chain multiple Ionboard fixtures
  • Tip: The Ionboard S24 works standalone out of the box. Controllers and dongles add automation but are not required.
Questions
Frequently asked questions
The Ionboard S24 covers germination through flowering with its full spectrum (3000K, 6500K, 660nm, 730nm). Use the dimmer to lower intensity for seedlings and crank it up for flower. No need to swap fixtures between stages.
The board physically measures about 12 x 24 inches, so it fits lengthwise in a 2x4 and can also work in wider tents. For a 2x2 tent, the Ionboard S22 (100W) is a better dimensional match. If you do use the S24 in a 2x2, you will want to dim it significantly to avoid light stress.
No. The Ionboard S24 works out of the box with manual dimming via the driver knob. A controller adds automated scheduling, sunrise/sunset ramps, and app monitoring, but it is completely optional. Many growers start without one and add it later.
At 220W, the Ionboard S24 produces significantly less heat than a 400W or 600W HPS that covers similar area. The fanless aluminum body spreads heat across the board surface rather than concentrating it. Most growers in 2x4 tents with proper ventilation do not need to add cooling specifically for this light.
Yes. The driver has a port for connecting to other Ionboard fixtures using expansion dongles (sold separately). When paired with a UIS controller, you can manage multiple lights from one device. This is useful if you scale up to a larger tent or run multiple zones.
AC Infinity provides a 2-year manufacturer warranty covering defects in materials and workmanship. With a rated lifespan of 50,000 hours, the diodes should maintain output well beyond the warranty period under normal use.
If you receive a defective or damaged unit, email us a photo at help@happyhydro.com and we'll make it right immediately: replacement or refund, your call. For change-of-mind returns, we accept returns within 30 days for items in new, resalable condition. If you're not sure whether this product is right for your setup, call us first at 716-217-0353. We'd rather answer your questions before you order.
Happy Hydro has been selling growing equipment since 2006. We've carried AC Infinity for years because the systems work great and customers who buy them leave happy. Have questions before you order? Call 716-217-0353 or email help@happyhydro.com. We're easy to reach and happy to help!
