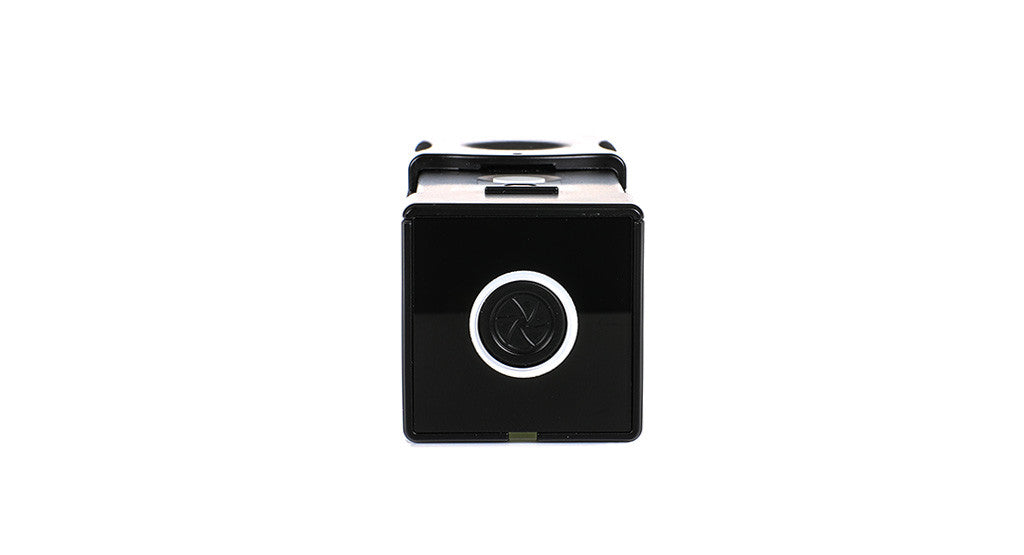

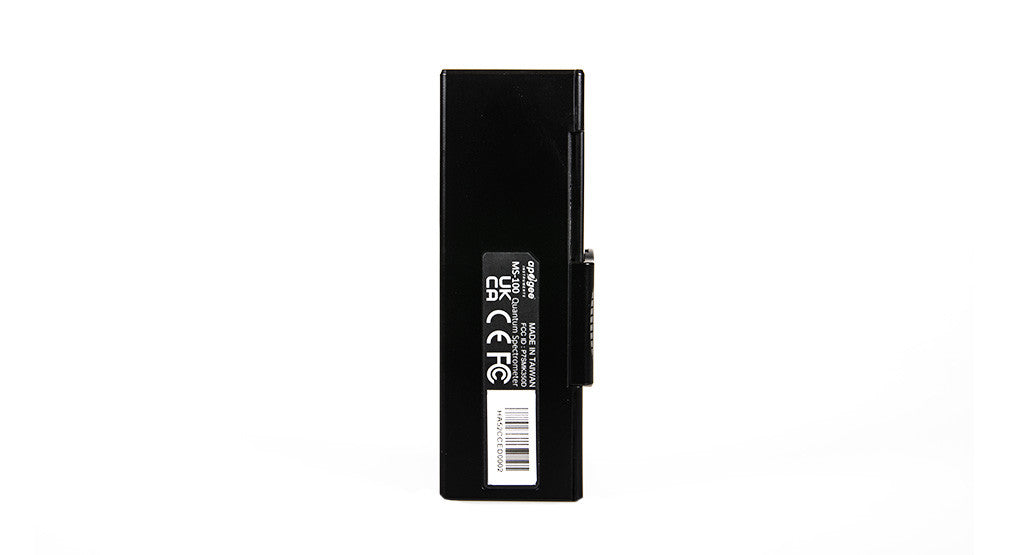

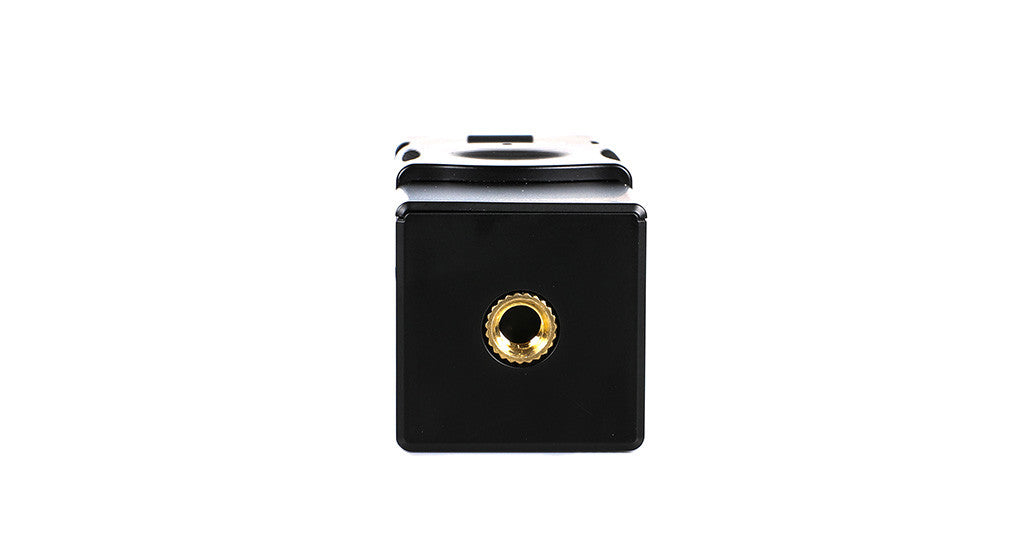

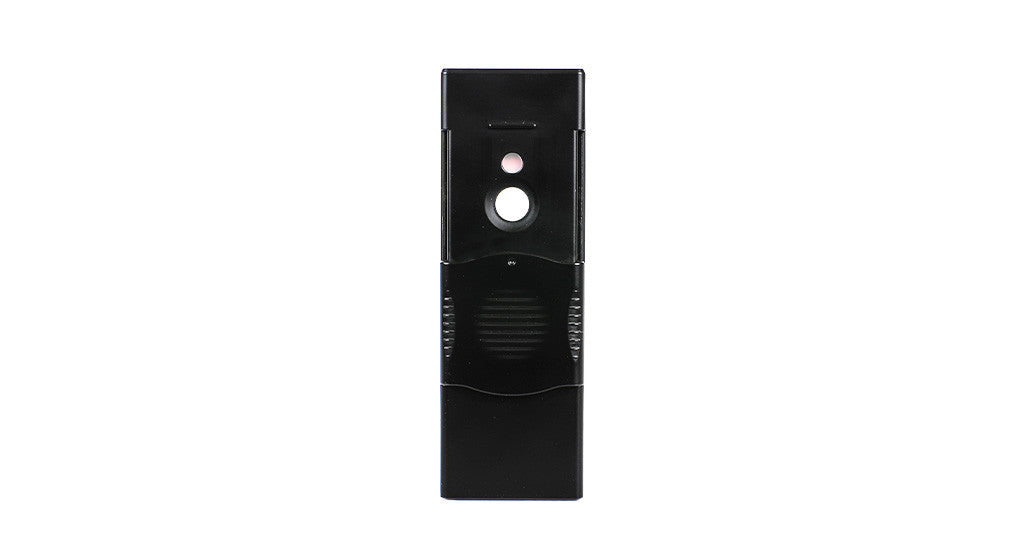

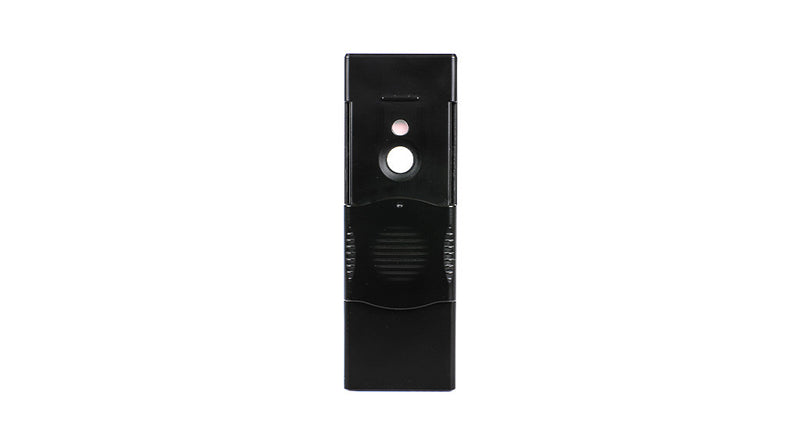

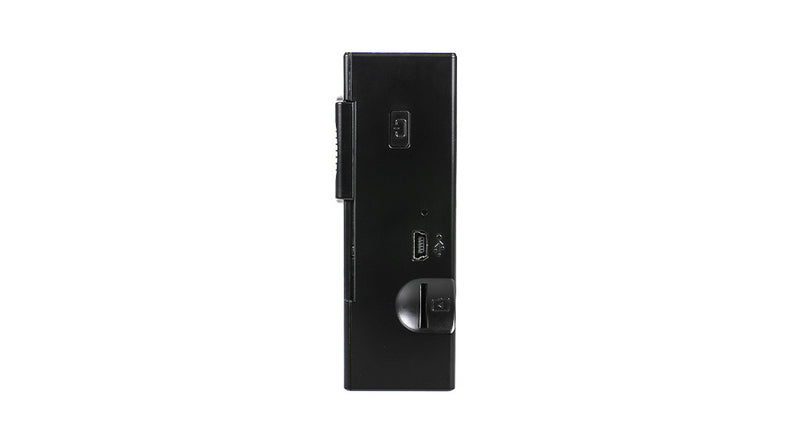

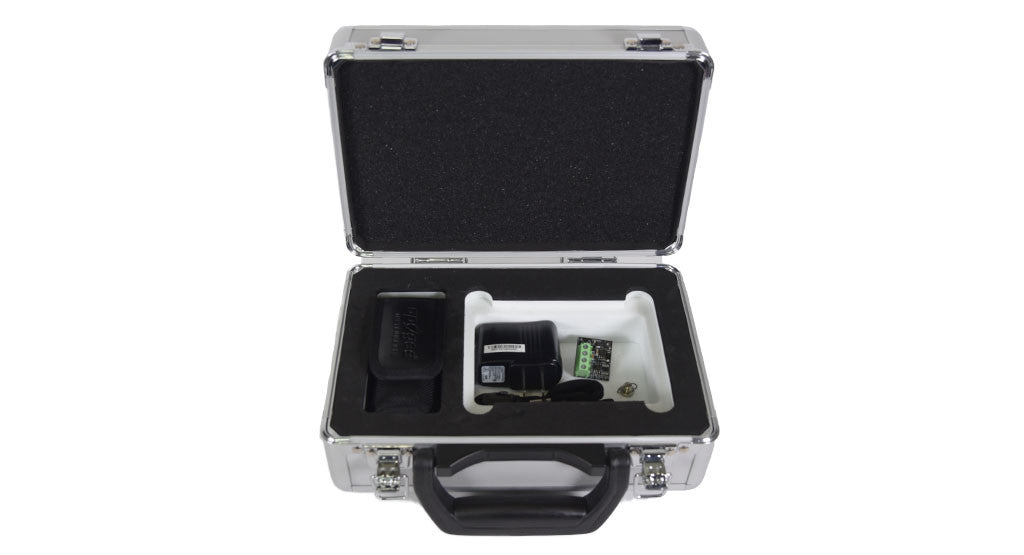

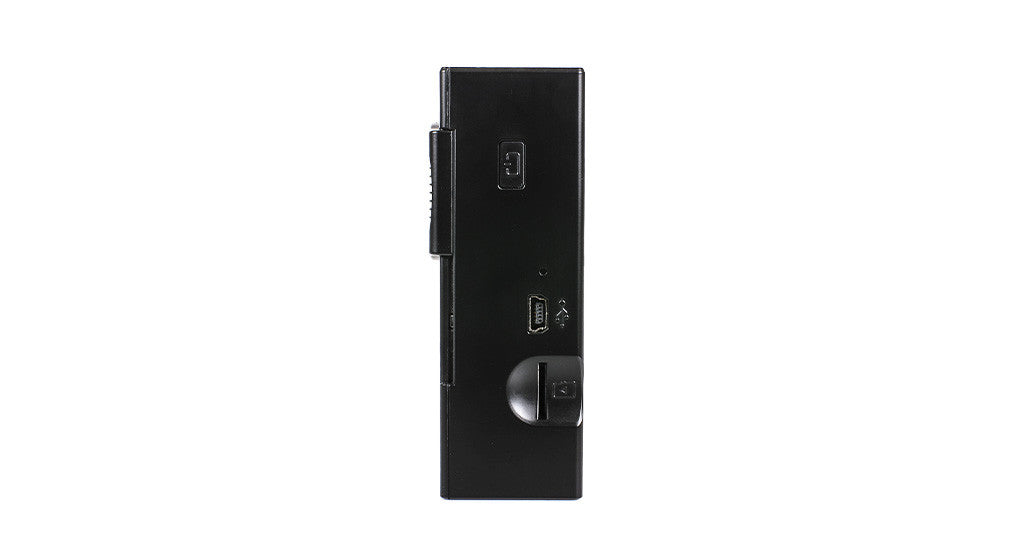

Apogee Instruments - InSight - Handheld Spectroradiometer

Apogee Instruments
Price:
$2,196.00
img 1

Free Shipping Over $49

img 2

Financing
Available Here

img 3

Discreet Packaging

img 4

Have a Question?
716-217-0353

Description

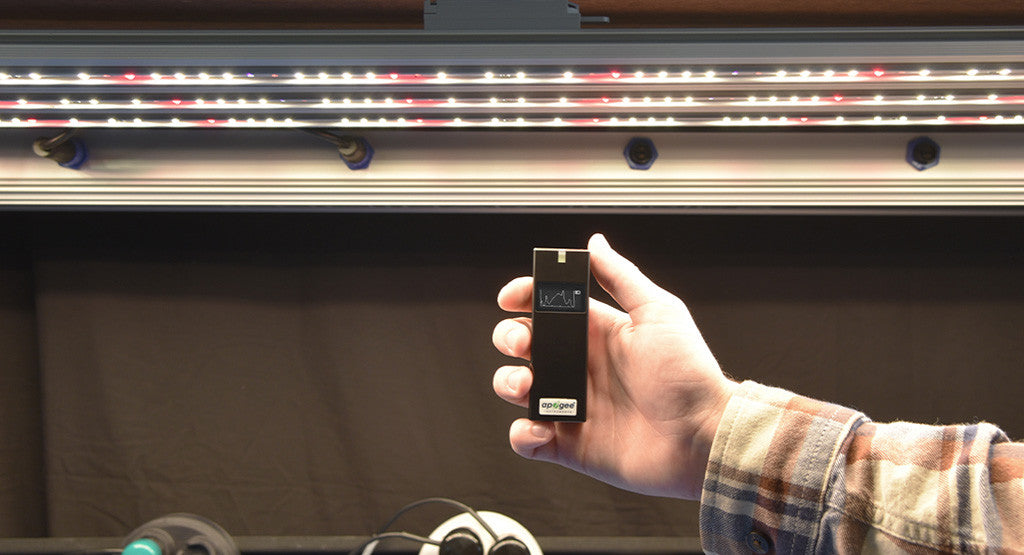

Introducing Apogee's innovative gardening ally, the "InSight" MS-100, a sophisticated, compact spectroradiometer expertly engineered to evaluate and interpret various grow light properties thoroughly. This device, designed with today's progressive gardener in mind, swiftly calculates the most essential photobiological indices, aiding you in optimizing your plant growth:

  • PPFD (Photosynthetic Photon Flux Density) and ePPFD (Extended PPFD)
  • YPFD (Yield Photon Flux Density) and TPFD (Total Photon Flux Density)
  • PFD-UV (Photon Flux Density-Ultraviolet) and PFD-B (Photon Flux Density-Blue)
  • PFD-G (Photon Flux Density-Green) and PFD-R (Photon Flux Density-Red)
  • PFD-FR (Photon Flux Density-Far Red) and FR F (Far Red Fluence)
  • PPE (Photosynthetic Photon Efficacy) and iPPE (Instantaneous PPE)
  • CFI (Color Fidelity Index) and CRI (Color Rendering Index)
  • CCT (Correlated Color Temperature) and Lux
  • R F-R R (Relative Flux-Red Ratio)
  • Foot candle (fc)
  • λp (Peak Wavelength) and λd (Dominant Wavelength)
  • CIE 1931 x & y (Chromaticity coordinates)
  • CIE 1976 u' & v' (Chromaticity coordinates)

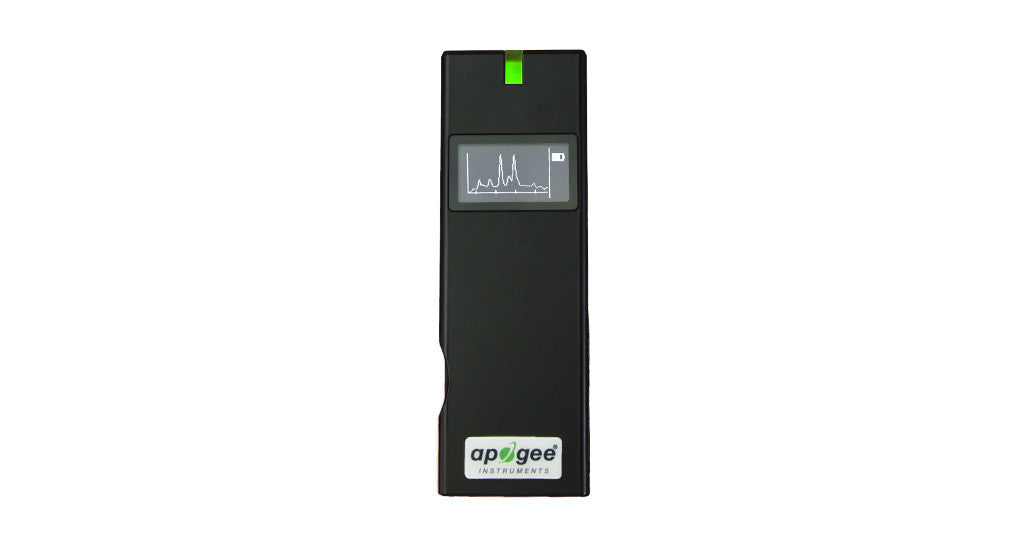

The InSight is versatile and accommodates various modes of use. Its quick check mode allows instant measurements and insights, directly displayed on the device's compact yet detailed screen that showcases a simple spectral graph. When linked with an iOS or Android device, Apogee's proprietary Insight App enables you to inspect diverse light metrics, save numerous spectral samples for later reference, and visualize full-color graphical displays.

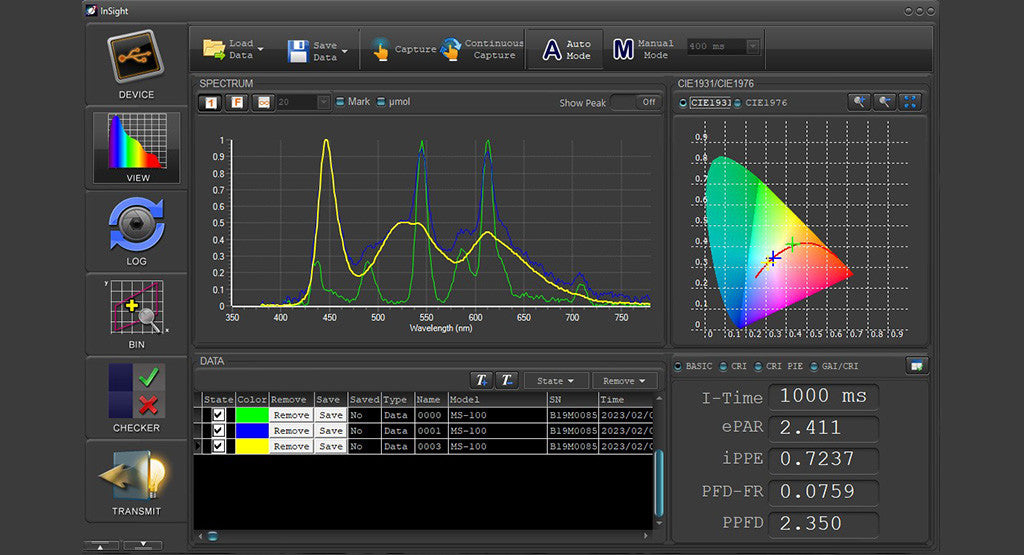

The InSight comes packaged with Apogee's comprehensive Insight Software for PCs, offering additional capabilities in spectral analysis and data logging. The device can record measurements over time when connected to a computer via USB, interfaced with a compatible datalogger via Modbus RS-485, or while operating on the provided power supply. Please be mindful the InSight MS-100 isn't water-resistant and should be safeguarded suitably in adverse conditions.

Parameter Specification
Wavelength Range 380 to 780 nm
Wavelength Data Increment 1 nm
Spectral Bandwidth Approximately 12 nm (half bandwidth)
Wavelength Reproducibility ± 1 nm
Measurement Range PPFD: 0.1 to 3,500 µmol m-2 s-1; LUX: 5 to 190,000 lx
Illuminance Accuracy (Illuminant A @ 2,856 K at 20,000 lx) ± 5 %
Color Accuracy (Illuminant A @ 2,856 K at 20,000 lx) ± 0.0025 in CIE 1931 x, y
Color Repeatability (Illuminant A @ 2,856 K at 20,000 lx) ± 0.0005 in CIE 1931 x, y
CCT Accuracy (Illuminant A @ 2,856 K at 20,000 lx) ± 2 %
CRI Accuracy @ Ra ± 1.5 %
Stray Light -25 dB max
Integration Time Range 6 to 1,000 ms
Digital Resolution 16 bits
Capture Function One time
Operating Mode Standalone Mode/Bluetooth Mode/USB Mode (PC Connection)
Integration Mode Auto
Measuring Modes Various (PPFD, ePPFD, YPPFD, TPFD, etc.)
Measuring Capabilities Various (Illuminance, CCT, CIE Chromaticity Coordinates, etc.)
Display 0.96" 128x64 mono OLED
Maximum Files Approximately 1.2 million files @ 8 GB Micro-SD card (excel)
Battery Operation Time 3 hours/Fully charged
Battery Operation Power USB Power; 700 mAh/3.7V Rechargeable Li-ion Battery; Micro Card (SD 2.0, SDHC/up to 32 G)
Data Output Interface Mini USB port (USB 2.0); Bluetooth 3.0 and 4.0 compatible with iOS and Android
Data Format Compatible with Microsoft Office Excel
Dimensions 90 x 30 x 32.2 mm (H x W x D)
Weight (with Battery) 70 g ± 5 g
Operating Temperature 0 to 35°C, relative humidity 70 % of less without condensation
Storage Temperature -10 to 40°C, relative humidity 70 % of less without condensation
Display Language English
Software Apogee InSight (available for PC, iOS, and Android)
Warranty One year


Note: Measuring Modes and Measuring Capabilities are consolidated as "Various" in the table, but they can be detailed separately if you want. This table includes only representative examples for the sake of simplicity and readability.)

SKU MS-100
