PRE ORDER — Ships out by Dec. 31, 2026.

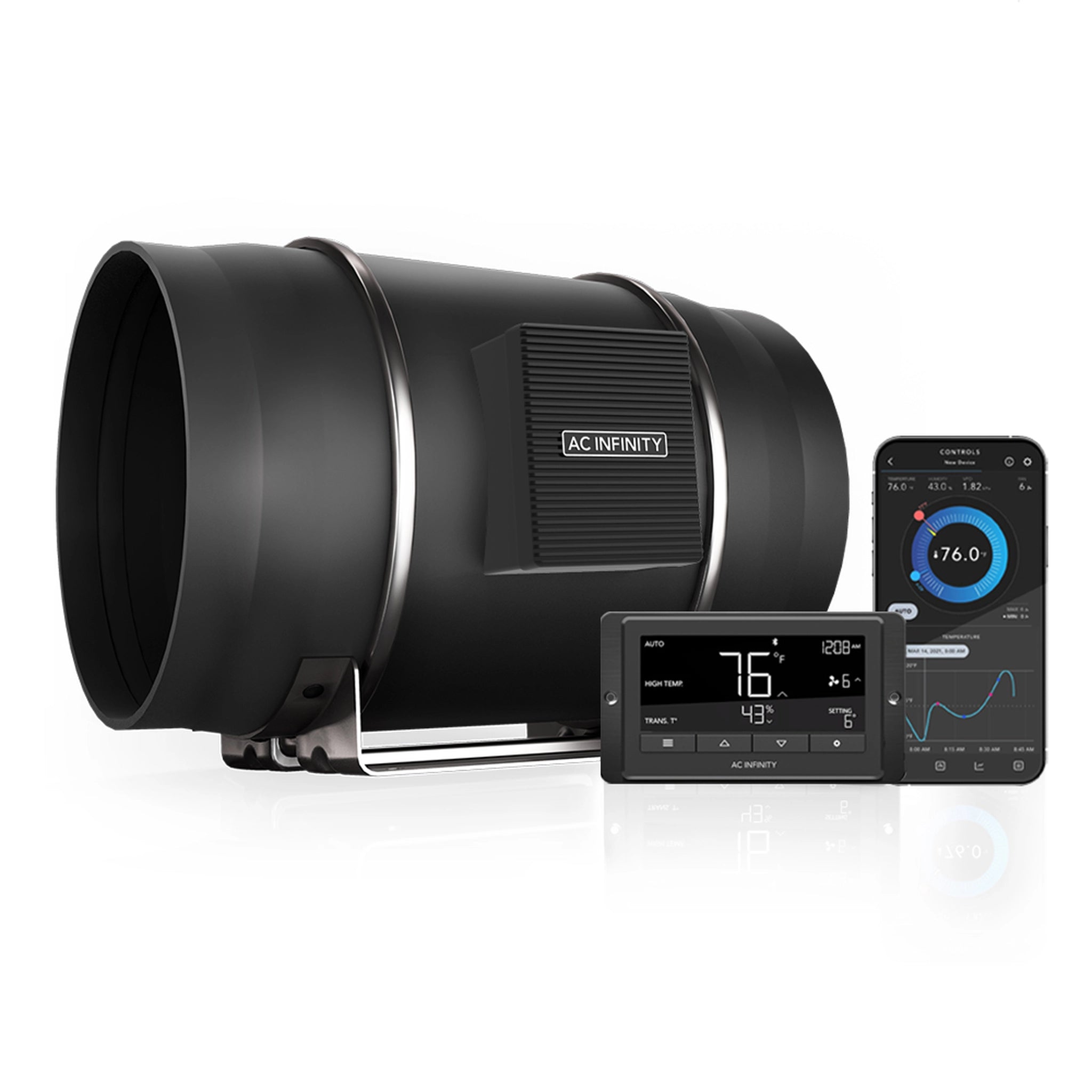

The AC Infinity CLOUDLINE T10 is a smart 10-inch inline duct fan for grow tents, hydroponic rooms, AV closets and home ventilation that needs quiet, automated control. It ships with the new CLOUDCOM 6 controller, which has a full-color touchscreen, six UIS ports and built-in temperature, humidity and VPD sensing, so the fan can respond to the room instead of running at one speed.
AC Infinity rates the T10 at 1221 CFM, 46 dBA and 1059 Pa of static pressure, using a mixed-flow impeller and a PWM-controlled EC motor. The controller connects to the AC Infinity app over Bluetooth or Wi-Fi (2.4 GHz and 5 GHz) for remote monitoring, alerts and trend charts, and it can run compatible wireless devices over Thread mesh.
Key Features
-

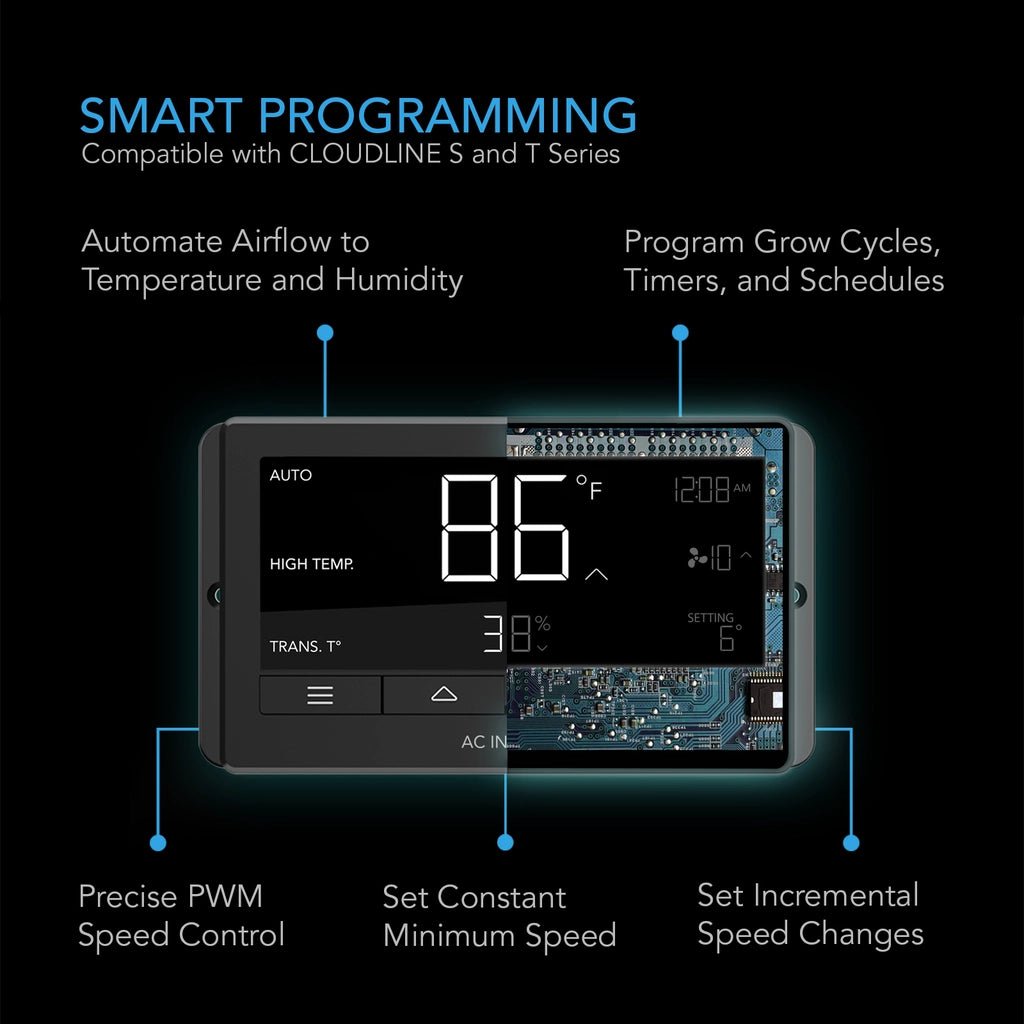

CLOUDCOM 6 controller (model CTR92Q) with a 4.50 in full-color capacitive touchscreen
-
Temperature, humidity and VPD control from the onboard sensor or the 12 ft corded probe
-
Six UIS ports for devices and sensors, up to 24 with expansion hubs
-
Thread mesh support for up to 100 compatible wireless devices (receivers sold separately)
-

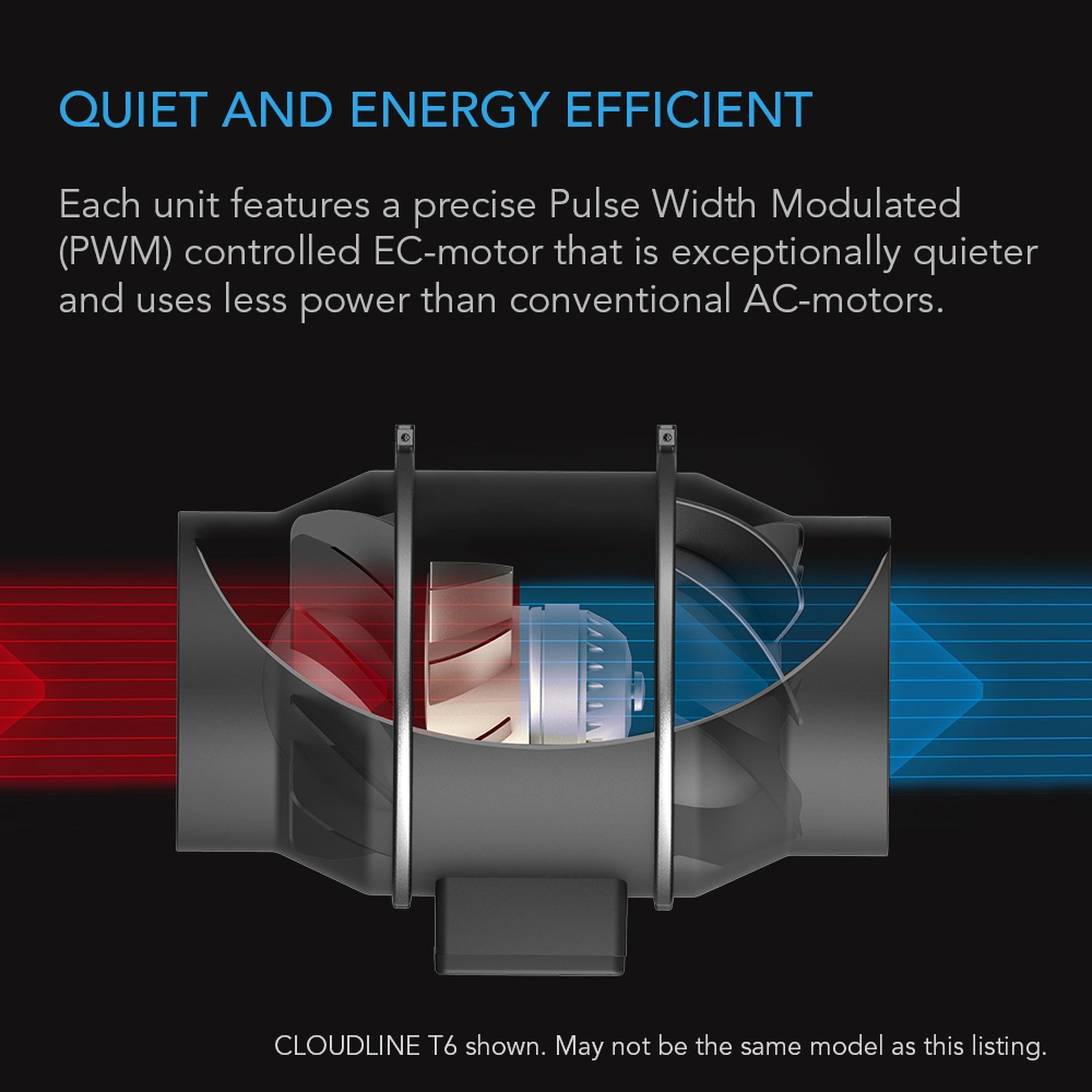

10-speed PWM EC motor with mixed-flow impeller for quiet, efficient airflow
-
Detachable motor box for easy cleaning
-
Dual ball bearings rated for 67,000 hours, mount horizontally or vertically
-
IP54 rating from AC Infinity
Applications

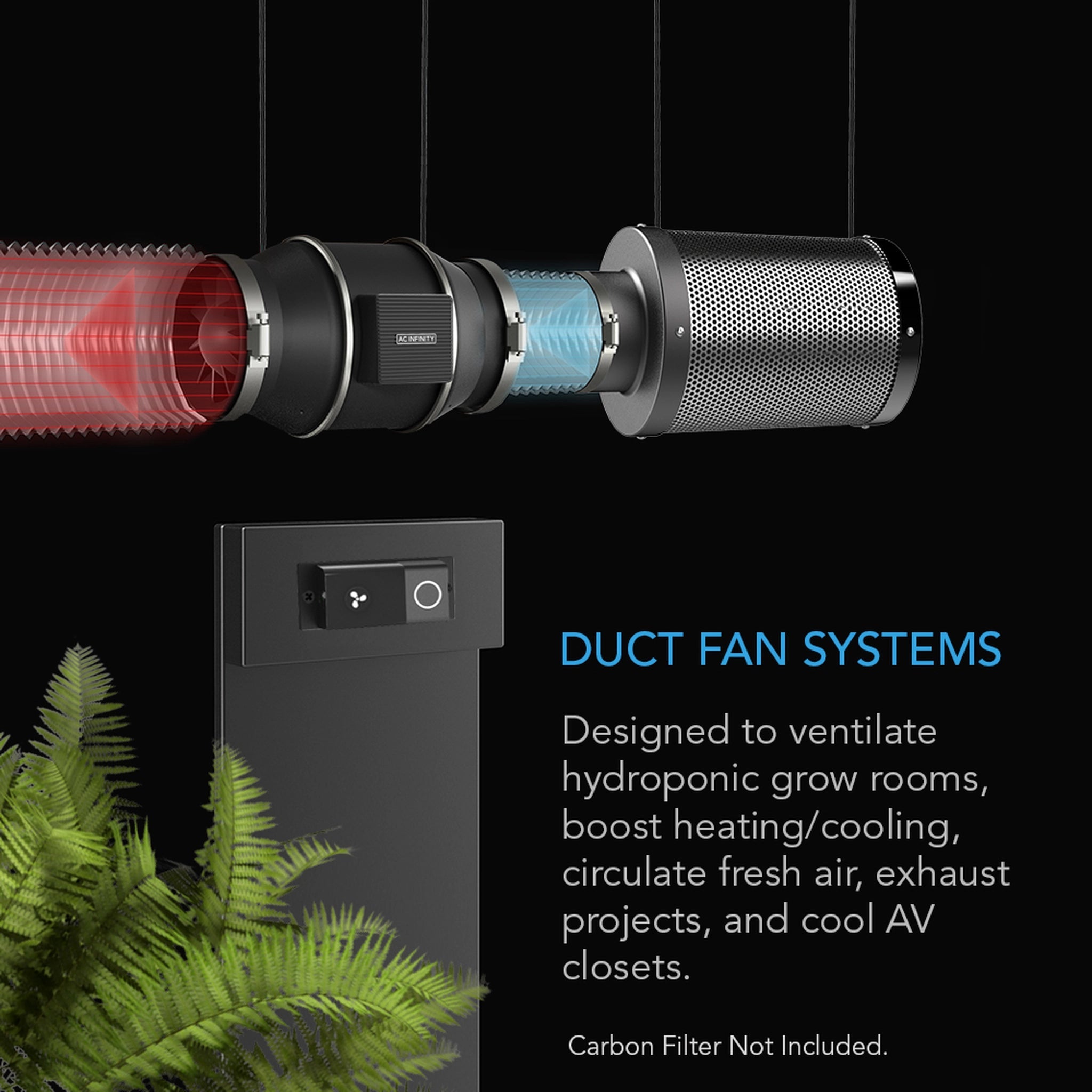

• Large hydroponic grow tents and commercial grow rooms
• Cooling AV equipment racks, server cabinets, and electronics closets
• Boosting HVAC airflow between rooms
• Exhausting attics, garages, basements, and workspaces
• Any environment requiring high-CFM, quiet, automated ventilation

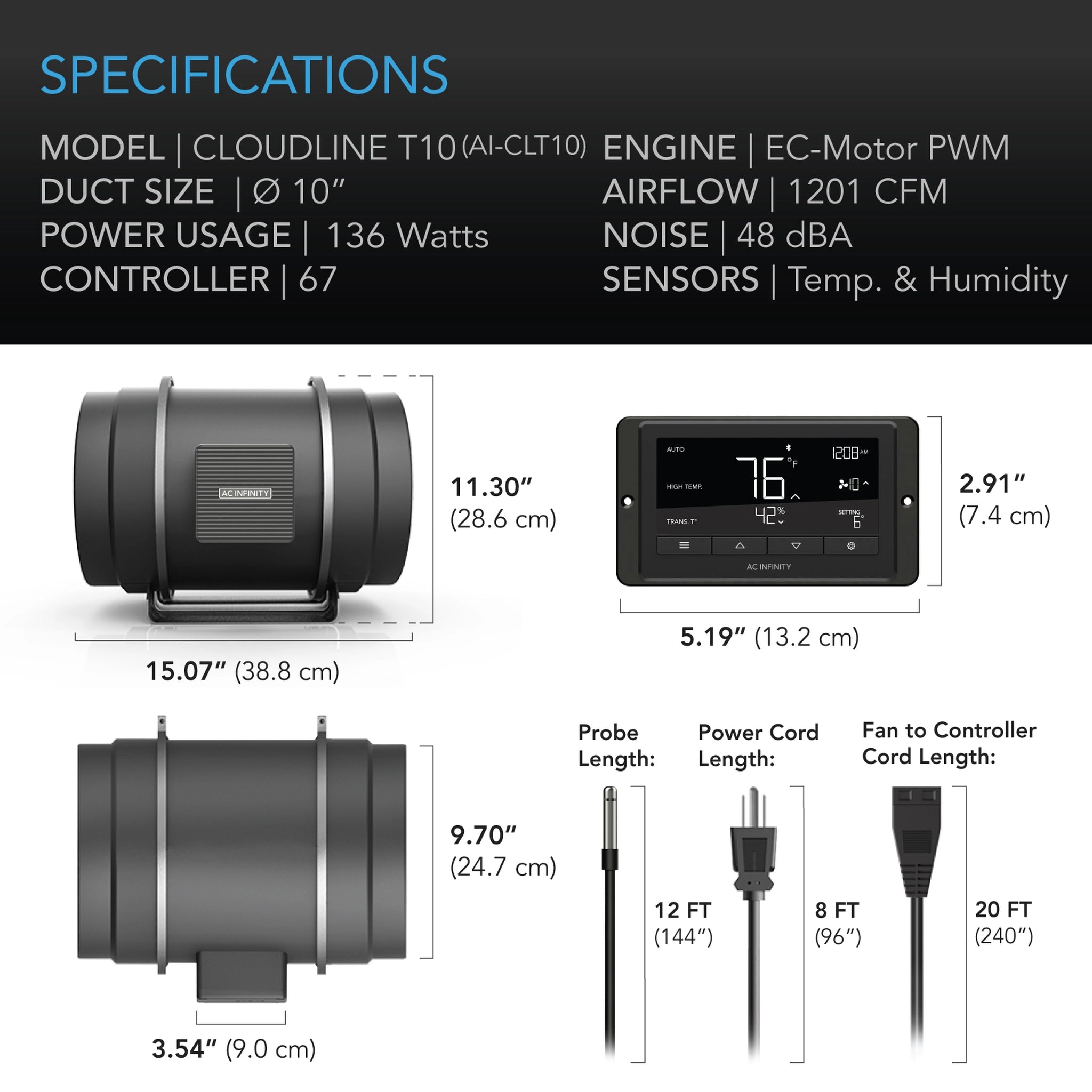

Product Specifications
| Specification |
Details |
| Duct Size |
10 inches |
| Airflow |
1221 CFM |
| Static Pressure |
1059 Pa |
| Noise Level |
46 dBA |
| Power |
255 W maximum, 136 W average, 2.7 A at 100 to 240V AC |
| Motor Type |
EC motor with PWM control, 10 speeds |
| Bearings |
Dual ball bearings, 67,000 hour L10 life |
| Fan Dimensions |
9.81 x 15.20 x 11.30 in |
| Mounting Hole Spacing |
5.90 x 5.90 in |
| Rating |
IP54 |
| Operating Range |
32 to 140°F, 35 to 85% RH |
| Controller |
CLOUDCOM 6, model CTR92Q |
| UIS Ports |
6, up to 24 with expansion hubs |
| Connectivity |
Bluetooth, Wi-Fi 2.4 GHz and 5 GHz, Thread mesh with receivers |
| Display |
4.50 in full-color TFT, capacitive touch |
| Sensors |
Onboard and corded, temperature, humidity and VPD, 12 ft probe |
| Controller Power |
24 W, 12 V DC, wall adapter input 100 to 240V AC |
What’s Included
• CLOUDLINE T10 inline duct fan (x1)
• CLOUDCOM 6 smart controller, model CTR92Q (x1)
• Power adapter for the controller (x1)
• Sensor probe, 12 ft (x1)
• UIS cord, 10 ft, male to male (x1)
• Duct clamps (x2)
• Hanging straps (x2)
• Wall anchors (x4)
• Duct fan screw set (x4)
• Wood screws for wall mounting (x2)
• Controller plate bolts (x2) and nuts (x3)
• Wire mounts (x6) and adhesive wire mount (x1)
• Hook and loop ties (x4)
Ducting, a carbon filter, Thread mesh receivers and UIS expansion hubs are sold separately.
Manuals and Guides
CLOUDLINE S and T series manual (PDF)
CLOUDCOM 6 quick start guide (PDF)
CLOUDCOM 6 setup guide: connect, program and pair the controller
